Multi Pro 5800Hydraulic System Page 5 − 74

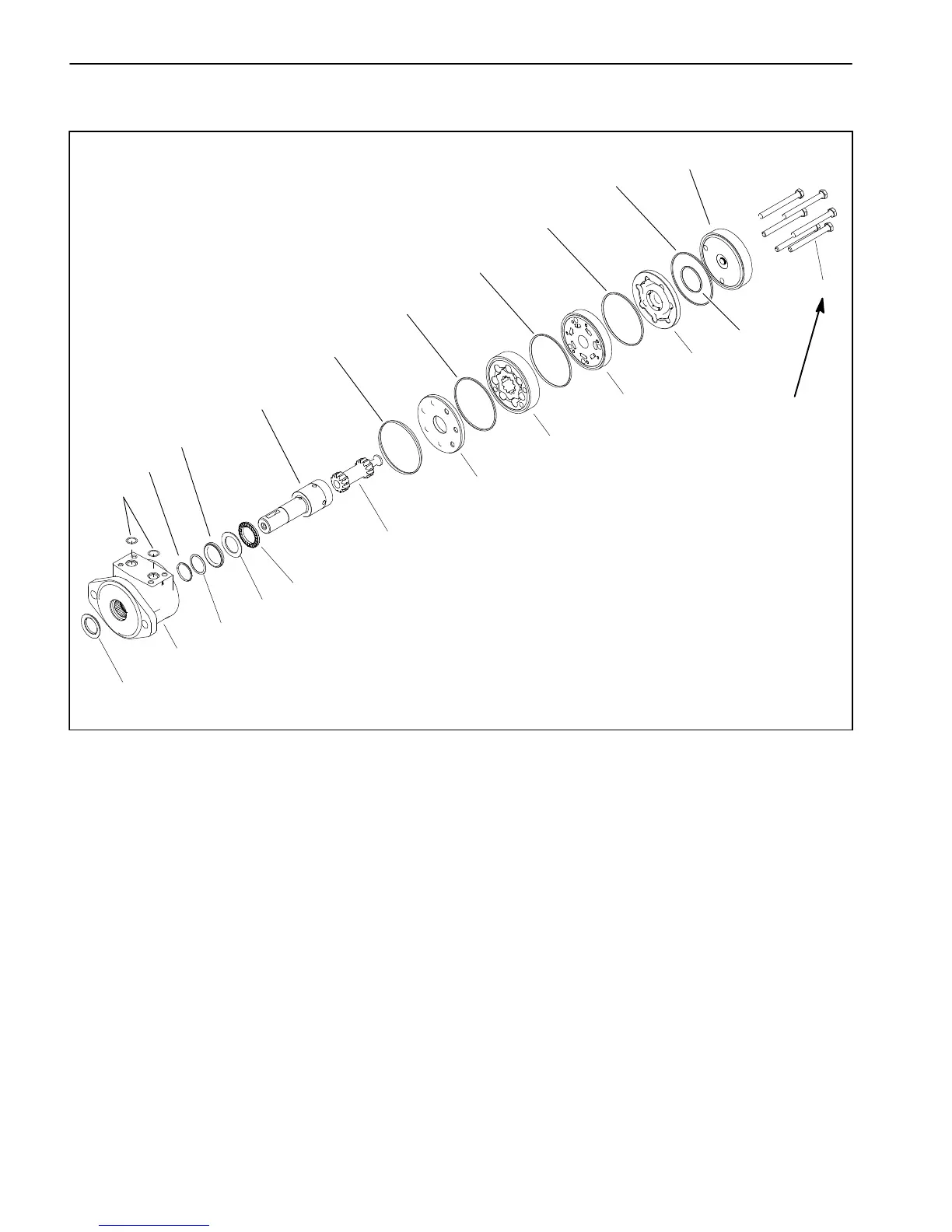

Spray Pump Drive Motor Service
1. Cap screw (6)
2. End cover
3. Commutator seal
4. Commutator assembly
5. Rotor assembly
6. Seal ring
7. Manifold
8. Inner seal
9. Backup washer
10. Backup ring
11. Wear plate
12. Drive link
13. Shaft
14. O−ring (2)
15. Housing
16. Thrust bearing
17. Thrust washer
18. Seal
Figure 54
22 to 26 ft−lb
(30 to 35 N−m)
2
3
6
8
9
10
11
13
1
5
7
12
14
15
16
17
18
4
6
6
6
6
NOTE: For service of the spray pump drive motor, see
the Parker Torqlink
TM
Service Procedure for TE Series
Hydraulic Motors at the end of this chapter.
