Toro Multi Pro 5800 Service Manual

Multi Pro 5800Page 8 − 34GeoLink Spray System
Diagnostics

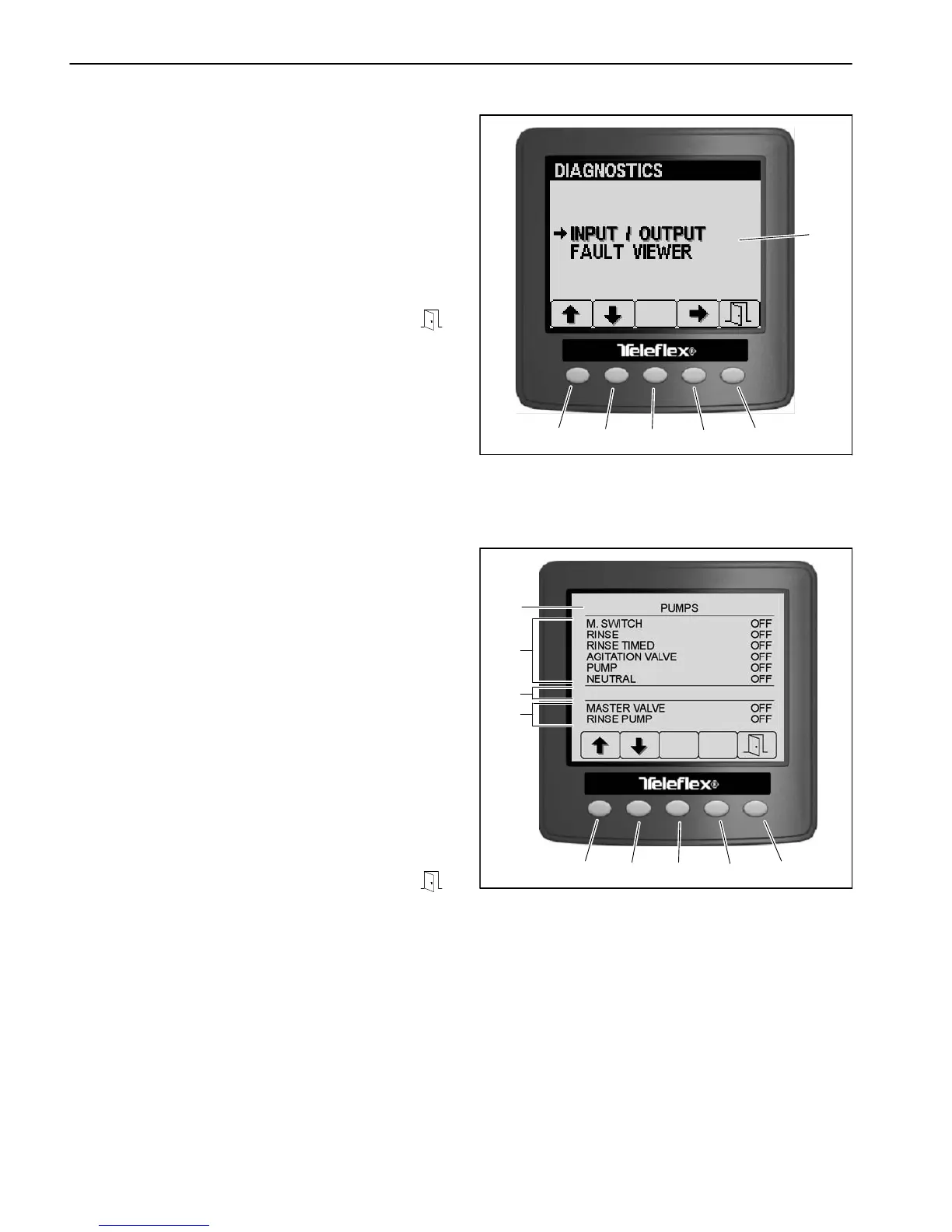

The Diagnostic screen (Fig. 37) is accessed from the
main menu and provides access to the following
screens:
Input / Output
Fault Viewer
Access the diagnostics screens by pressing buttons 1 or
2 to highlight the desired screen then button 4 to select
the highlighted screen.
Return to the previous screen by pressing button 5
INPUT/OUTPUT
The input/output screens display the current state of the
various Toro Electronic Controller (TEC) inputs, quali-
fiers and outputs necessary to allow a machine or spray
system function to occur. The input/output screens
should be used to troubleshoot spray system operation
issues, and check that necessary components and cir-
cuit wiring are functioning correctly (see Troubleshoot-
ing in this chapter). Scroll through the input/output
screens by pressing buttons 1 or 2.
Each of the following spray system functions has its own
input/output screen:
Pumps
Booms
Engine Run
Each screen is separated into four (4) areas of informa-
tion (Fig. 38). The first area identifies the spray system
function. The second area identifies the inputs that are
necessary for the function to occur. The third area identi-
fies qualifiers that are involved with the function (safety
interlocks). The fourth area identifies the outputs that
are necessary for the function to occur.
Return to the previous screen by pressing button 5
1. Button 1
2. Button 2
3. Button 3
4. Button 4
5. Button 5
6. Diagnostics screen
Figure 37
1
2
3
4
5
6
1. Button 1
2. Button 2
3. Button 3
4. Button 4
5. Button 5
6. Machine function
7. Inputs
8. Qualifiers (none)
9. Outputs
Figure 38
1
2
3
4
5
6
7
8
9
