Multi Pro 5800−DPage 3 − 4Kubota Diesel Engine
Adjustments
Adjust Throttle Cable
Proper engine RPM and machine performance is de-
pendent upon proper adjustment of throttle cable.
NOTE: The throttle cable swivel should be positioned
in the lowest hole in the speed control lever.
1. Move throttle control lever on control console fully
forward to FAST position.
2. Check position of the engine speed control lever on
fuel injection pump. The speed control lever should be
contacting the high speed screw when the throttle con-
trol lever is in the fully forward FAST position.
3. If necessary, throttle cable can be adjusted by loos-
ening cable clamp screw and repositioning cable until
speed control lever contacts high speed screw when the
throttle control lever is in the fully forward FAST position.
Tighten cable clamp screw after adjustment has been
completed.
4. After securing cable clamp, make sure that cable ad-
justment is still correct. Ensure the throttle swivel moves
freely and the speed control lever travels fully from stop
to stop.

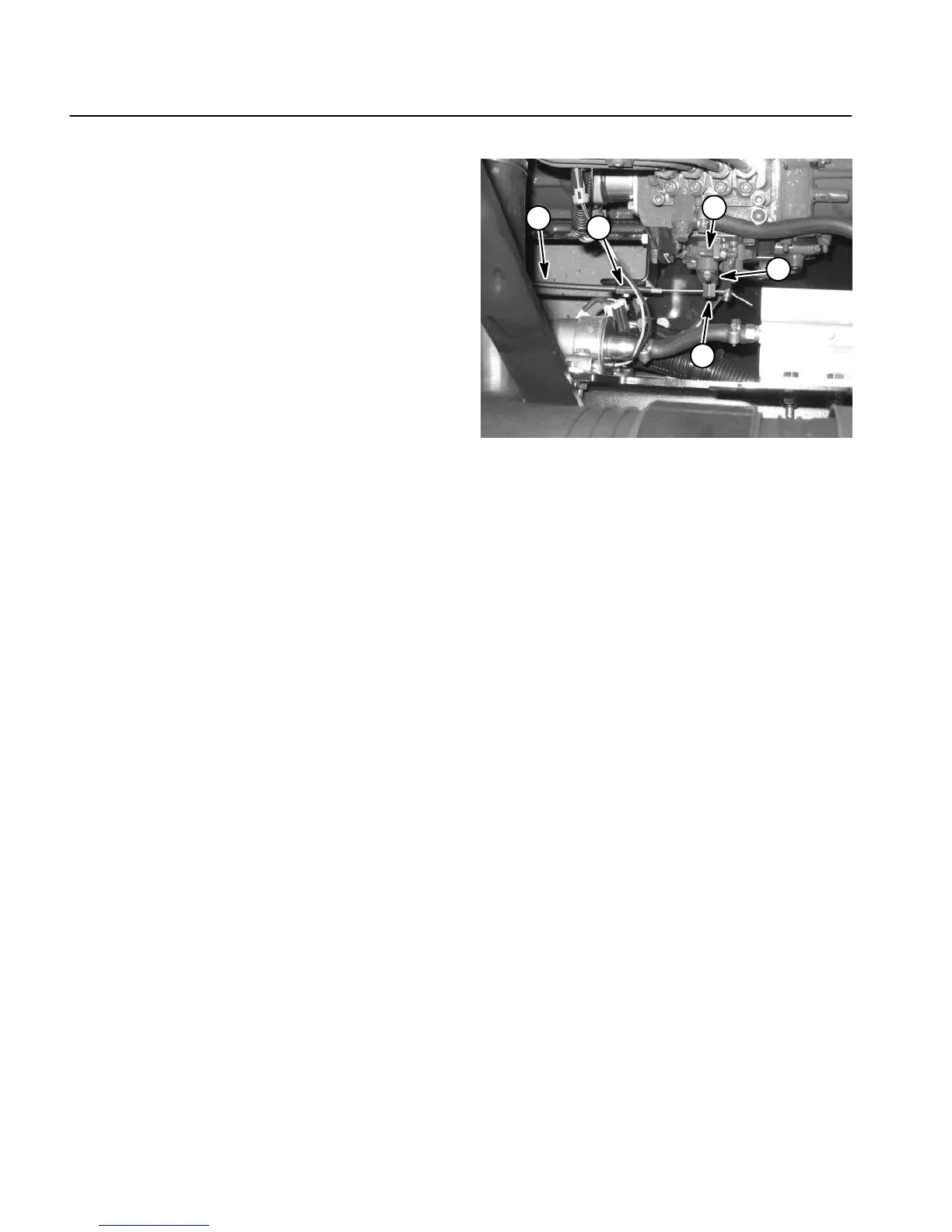

Figure 1
1. Throttle cable
2. High speed screw
3. Speed control lever
4. Throttle swivel
5. Cable clamp
2
1
3
4
5
VIEW FROM ABOVE
