Toro Multi Pro 5800 Service Manual

Multi Pro 5800Page 7 − 52ExcelaRate Spray System

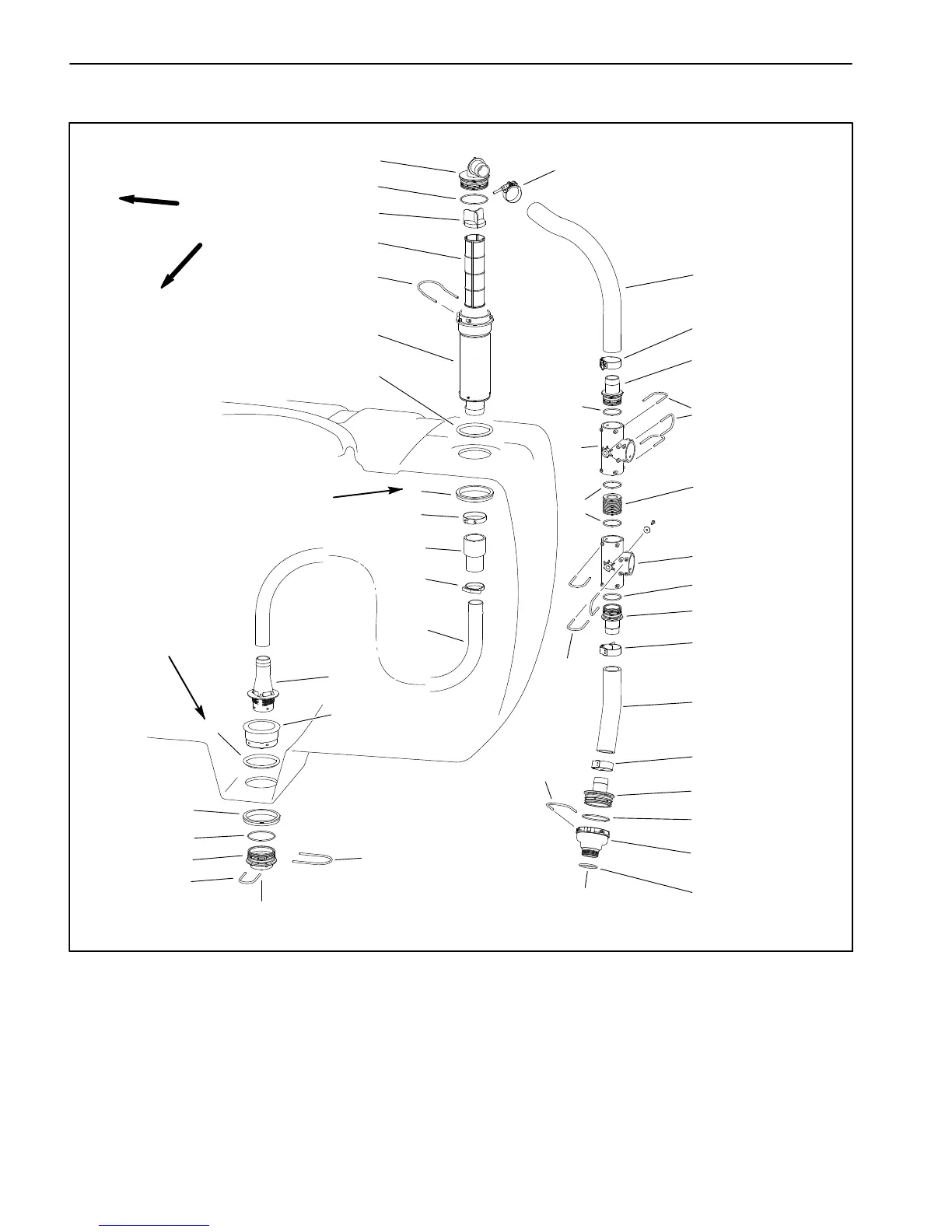

Suction Line
1. Elbow
2. O−ring (3)
3. Vane − strainer
4. Element − strainer
5. Fork
6. Strainer body
7. Gasket (2)
8. Nut (2)
9. Hose clamp
10. Connector
11. Clamp
12. Suction hose
13. Suction foot
14. Bulkhead
15. Adapter
16. Fork (7)
17. Fork (2)
18. Hose clamp (4)
19. Suction hose 27.5 in. (70 cm)
20. Hose barb (2)
21. O−ring (4)
22. Tee (2)
23. Connector
24. Suction hose 10 in.(25.4 cm)
25. Hose barb
26. Fitting − suction
27. O−ring
Figure 50
FRONT
LEFT
TO
DRAIN VALVE
TO
SPRAY PUMP
11
12
13
14
7
8
2
2
16
16
17
17
18
18
18
18
19
20
20
3
4
5
6
7
10
21
21
21
22
22
23
24
25
26
27
2
1
15
16
8
9
12 to 17 ft−lb
(16 to 23 N−m)
20 to 24 ft−lb
(27 to 33 N−m)
