Toro Multi Pro 5800 Service Manual

Multi Pro 5800Hydraulic System Page 5 − 94

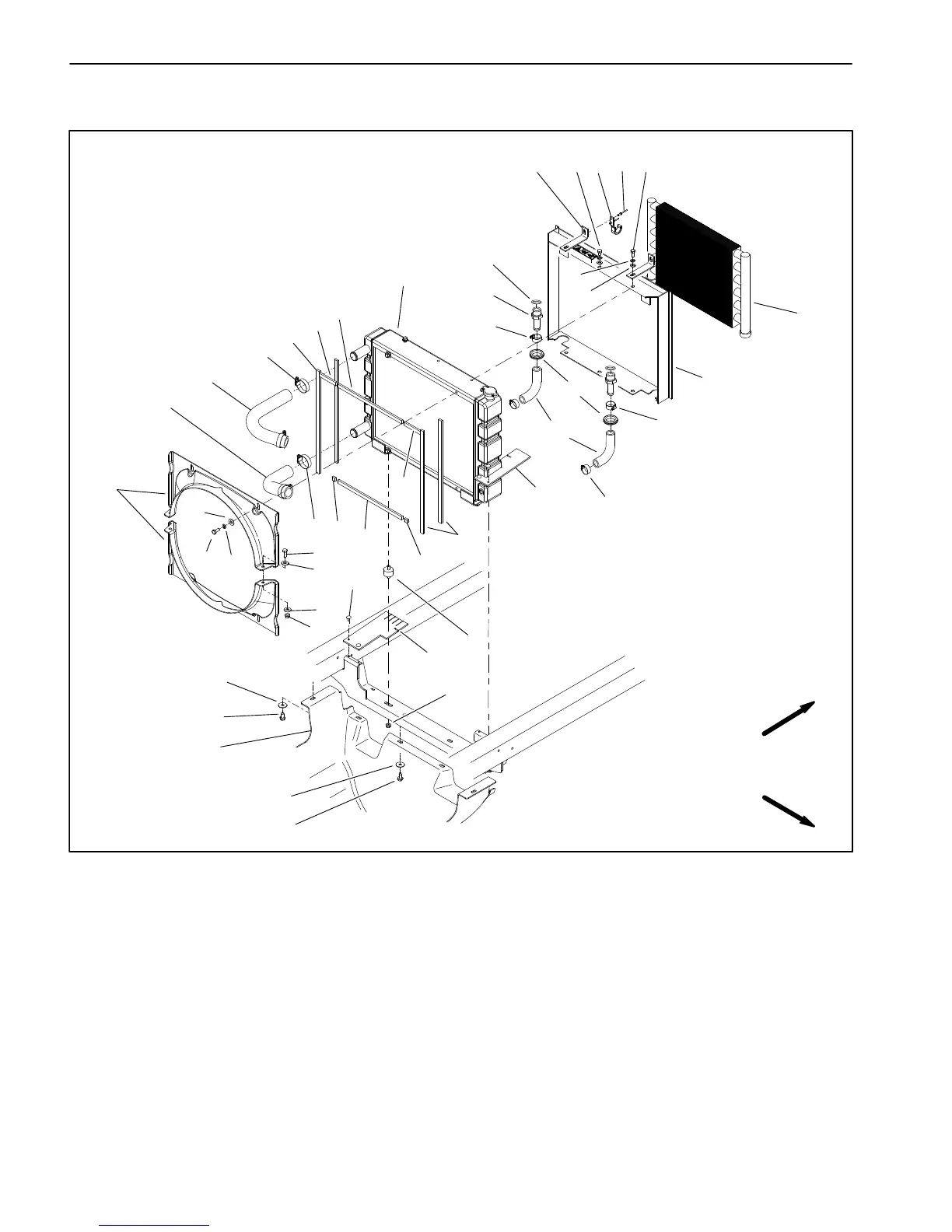

Oil Cooler
1. Isolator seat (2)
2. Radiator
3. Fan shroud (2)
4. Radiator shroud
5. Radiator brace (2)
6. Oil cooler mount hook (2)
7. Rubber grommet (2)
8. Flange nut (4)
9. Rivet (4)
10. Flat washer (6)
11. Lock washer (10)
12. Cap screw (6)
13. Cap screw (4)
14. Foam seal (4)
15. Foam seal (2)
16. Foam seal (2)
17. Foam seal (2)
18. Flat washer (8)
19. Cap screw (2)
20. Lower radiator hose
21. Upper radiator hose
22. Hose clamp (4)
23. LH heat baffle
24. RH heat baffle
25. Rivet (4)
26. Clamp (4)
27. Front undercarriage shroud
28. Flat washer (6)
29. Washer head screw (6)
30. Oil cooler
31. Oil cooler hose (2)
32. Hydraulic fitting (2)
33. O−ring (2)
Figure 68
FRONT
RIGHT
2
3
6
8
9
10
11
13
1
5
7
12
14
15
16
17
18
19
20
4
21
22
23
24
25
26
27
28
29
30
26
32
31
22
17
15
18
8
28
29
14
16
11
12
18
26
33
