Multi Pro 5800Page 7 − 42ExcelaRate Spray System

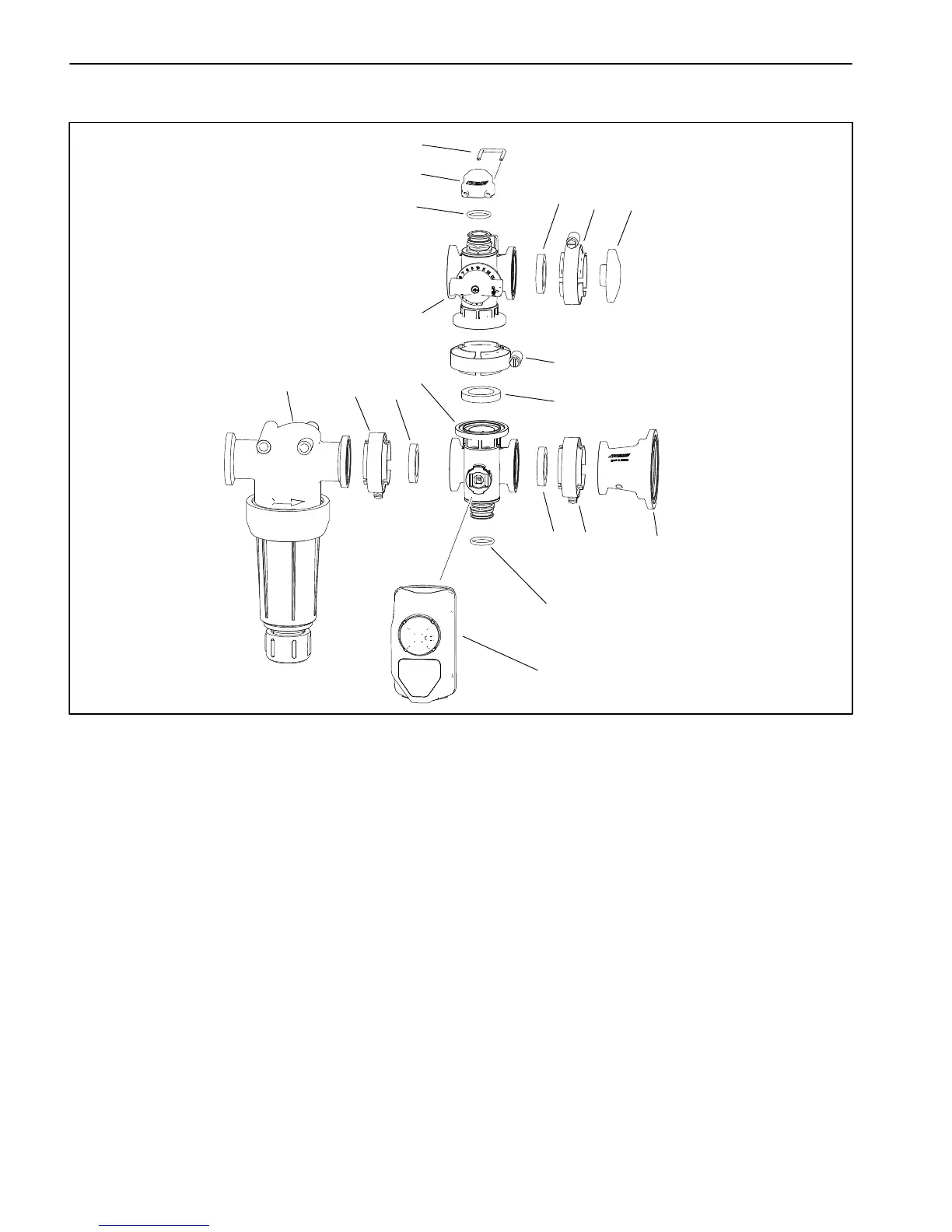

Agitation Valve Assembly
Figure 40
1. Valve actuator
2. Agitation valve
3. Agitation bypass valve
4. High Pressure Filter
5. Clamp (4)
6. Gasket (4)
7. Adapter
8. O−ring (2)
9. Cap
10. Cap
11. Fork
11
1
2
3
4
5
5
5
5
6
6
6
6
7
8
8
9
10
The agitation valve assembly includes the agitation
valve, the agitation bypass valve and the high pressure
product filter.
IMPORTANT: The valve actuator has an internal cir-
cuit breaker to protect the actuator motor. The cir-
cuit breaker should reset in 20 seconds after power
to the actuator is removed.
Disassembly (Fig. 40)
1. Remove the agitation valve assembly from machine
(see Spray Control Manifold Assembly in this chapter).
2. Disassemble agitation valve assembly as needed.
Discard any removed O−rings and gaskets.
NOTE: See Agitation Valve Service and Agitation By-
pass Valve Service in this chapter for disassembly and
assembly information. The valve actuator is nor service-
able. See Spray System Valve Actuators in Chapter 6 −
Electrical System in this manual for actuator testing in-
formation.
Assembly (Fig. 40)
NOTE: Replace, do not reuse gaskets and O−rings.
Coat O−rings and gaskets with vegetable oil or silicone
grease before installation to reduce damage during as-
sembly.
1. Assemble agitation valve assembly.
2. Install agitation valve assembly on machine (see
Spray Control Manifold Assembly in this chapter).
