Multi Pro 5800 Page 6 − 17 Electrical System
Settings
The Settings screen (Fig. 18) is accessed from the main
menu and provides access to the following:
Tank
Display
Boom Width
Reset Defaults
GeoLink
Access the Settings screen by pressing buttons 1 or 2
to highlight SETTINGS, then press button 4 to select the
highlighted screen. Scroll through the various Settings
screens by pressing buttons 1 or 2.
Return to the previous screen by pressing button 5
TANK
The tank settings s (Fig. 19) are accessed from the set-
tings screen and provide access to the following spray
tank settings:
Volume (unit of measure): The amount of spray prod-
uct being added to the tank. This should be manually
entered by the operator or spray technician when the
tank is filled and before starting to spray.
NOTE: When using the spray tank low limit feature,
the spray tank volume must be entered every time
the spray tank is filled (see the machine Operators
Manual or Software Guide for additional informa-
tion).
Low Limit: Switches the low spray tank alarm ON/
OFF.
Low Limit (unit of measure): The tank volume that
triggers the low spray tank alarm.
Agitation: The pump speed when the pump is en-
abled and all spray booms are OFF (idle). This set-
ting is expressed as a percentage of maximum pump
speed.
Access the various items by pressing buttons 1 or 2 to
highlight the desired item, then buttons 3 or 4 to adjust
the setting.
Return to the previous screen by pressing button 5
1
2
3
4
5
6
1. Button 1
2. Button 2
3. Button 3
4. Button 4
5. Button 5
6. Settings screen

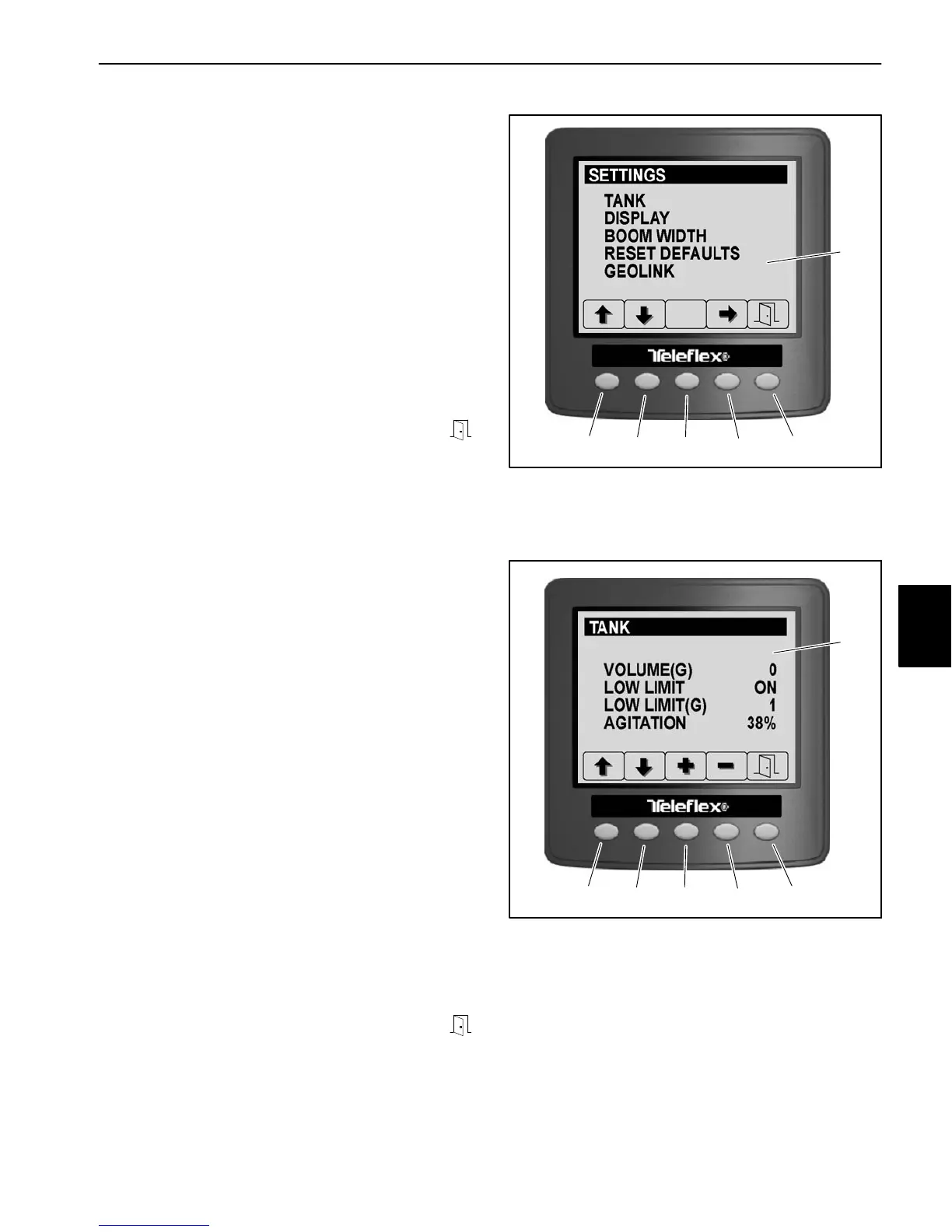

Figure 18
1. Button 1
2. Button 2
3. Button 3
4. Button 4
5. Button 5
6. Tank settings
Figure 19
1
2
3
4
5
6
Electrical
System
