Multi Pro 5800 Page 6 − 9 Electrical System
InfoCenter Display
The InfoCenter Display is a LCD device that is located
in the Operator control console. The InfoCenter display
provides information for the machine operator during
machine operation and spray system calibration, pro-
vides electrical system diagnostic assistance for techni-
cians and allows input for user adjustable machine
settings.
Power for the InfoCenter is available when the main
power relay is energized (ignition switch is in the START
or RUN position). A 1 Amp fuse (FB1 5−6) protects the
InfoCenter power circuit. A CAN bus network involving
the InfoCenter, the Toro Electronic Controller (TEC),
and in the case of gasoline engine powered machines
the Kubota engine ECU is used to communicate ma-
chine information to and from the InfoCenter display.
NOTE: The TEC controller and the InfoCenter Display
used on the Multi Pro 5800 are matched for correct ma-
chine operation. If either of these components are re-
placed for any reason, system software needs to be
reprogrammed (contact an Authorized Toro Distributor
for assistance).

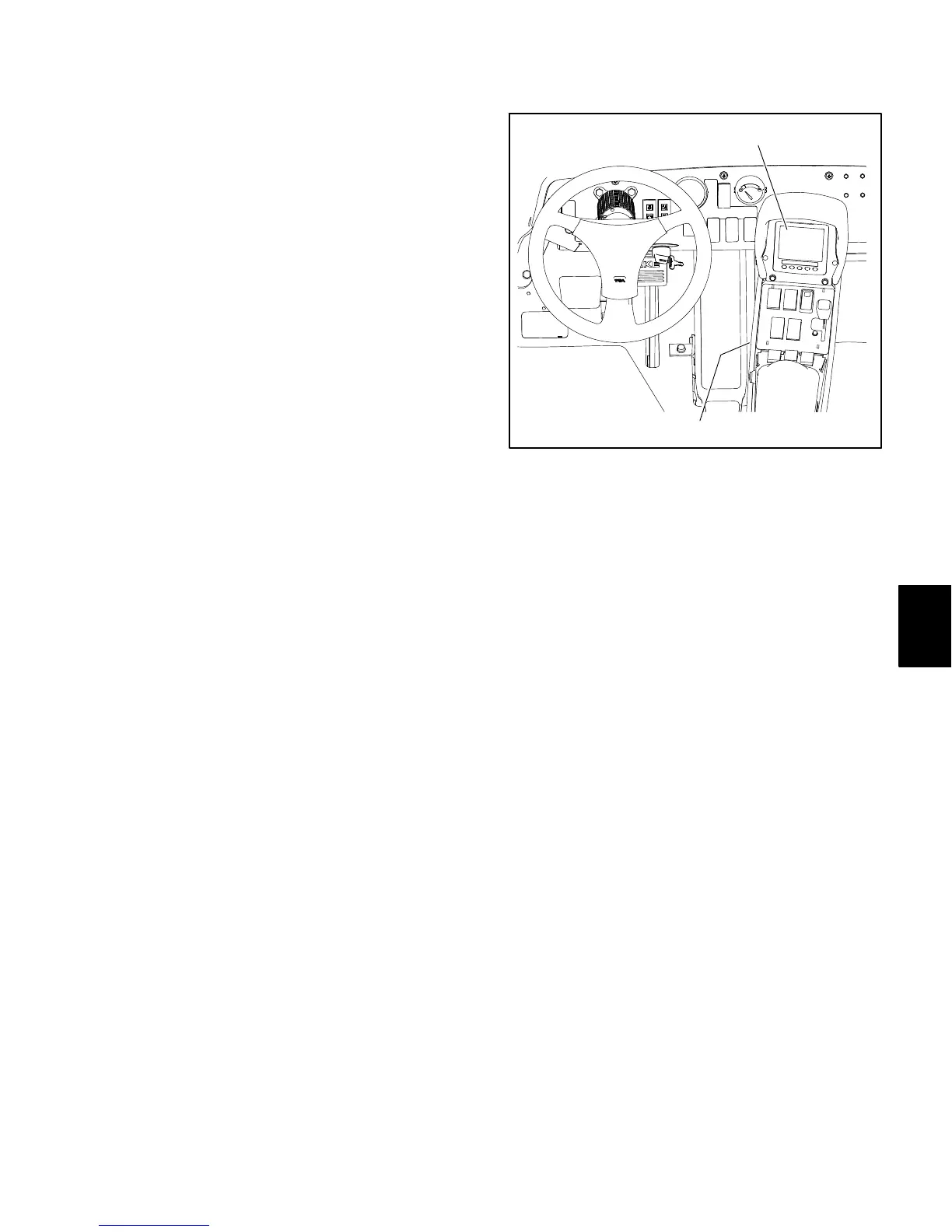

1. Operator control console 2. InfoCenter Display
Figure 9
1
2
Electrical
System
