Toro Multi Pro 5800 Service Manual

Multi Pro 5800Hydraulic System Page 5 − 78

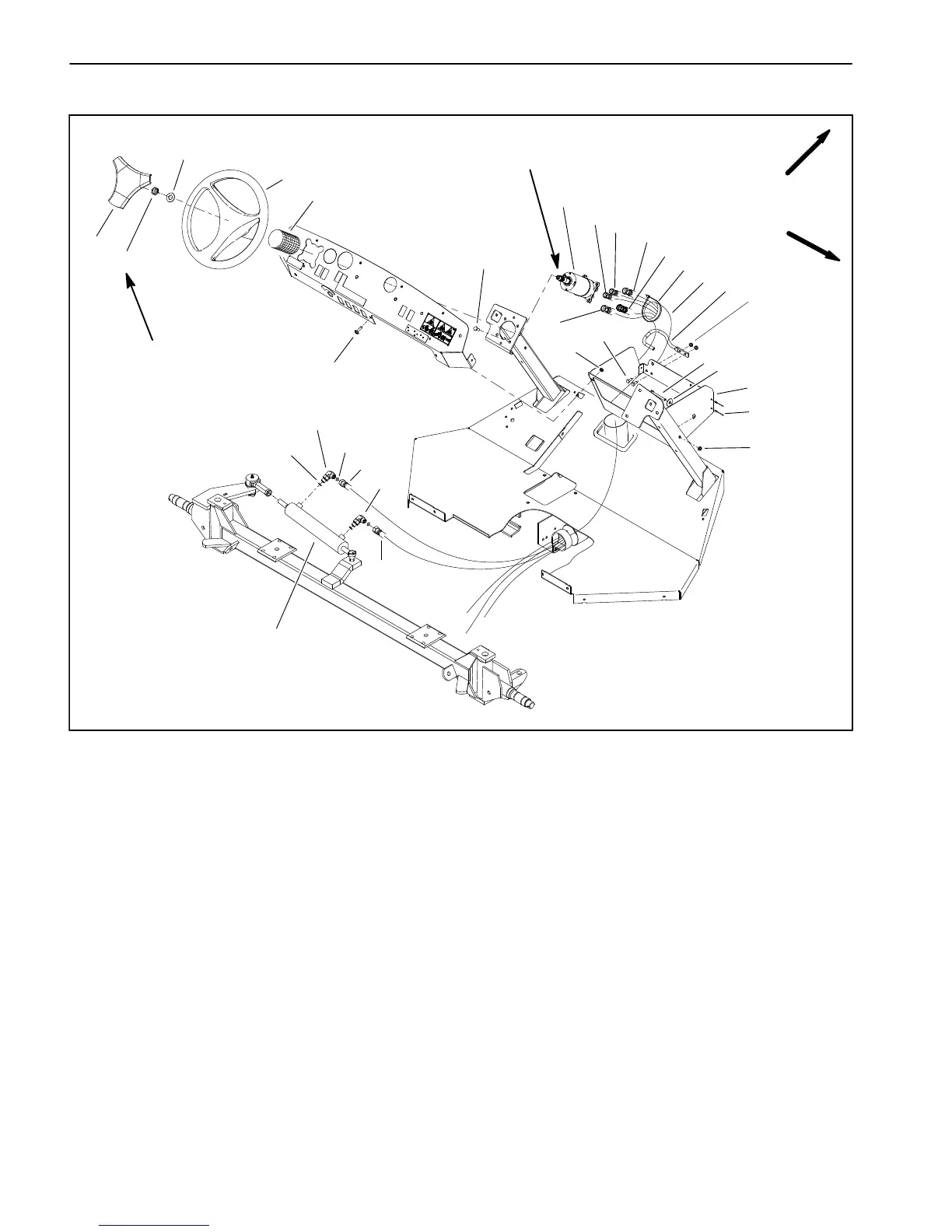

Steering Control Valve
1. Storage compartment
2. Steering wheel
3. Steering wheel cover
4. O−ring
5. Nut
6. Flat washer
7. Washer
8. Cap screw (2)
9. Screw (2)
10. Flange nut (5)
11. Hose guide
12. Cap screw
13. Rivet (3)
14. 90
o
hydraulic fitting (2)
15. Steering control valve
16. Cap screw (4)
17. Hydraulic hose
18. Hydraulic hose
19. Cover
20. Cable tie (7)
21. O−ring
22. Steering cylinder
23. Hydraulic hose
24. Hydraulic hose
25. Hydraulic hose
26. Cover sleeve
Figure 56
FRONT
RIGHT
20 to 26 ft−lb
(28 to 35 N−m)
Antiseize
Lubricant
2
3
6
9
10
12
1
5
7
11
13
14
15
16
17
18
19
4
20
21
22
23
24
17
18
14
10
8
10
25
26
