Multi Pro 5800−DPage 3 − 10Kubota Diesel Engine
Exhaust System

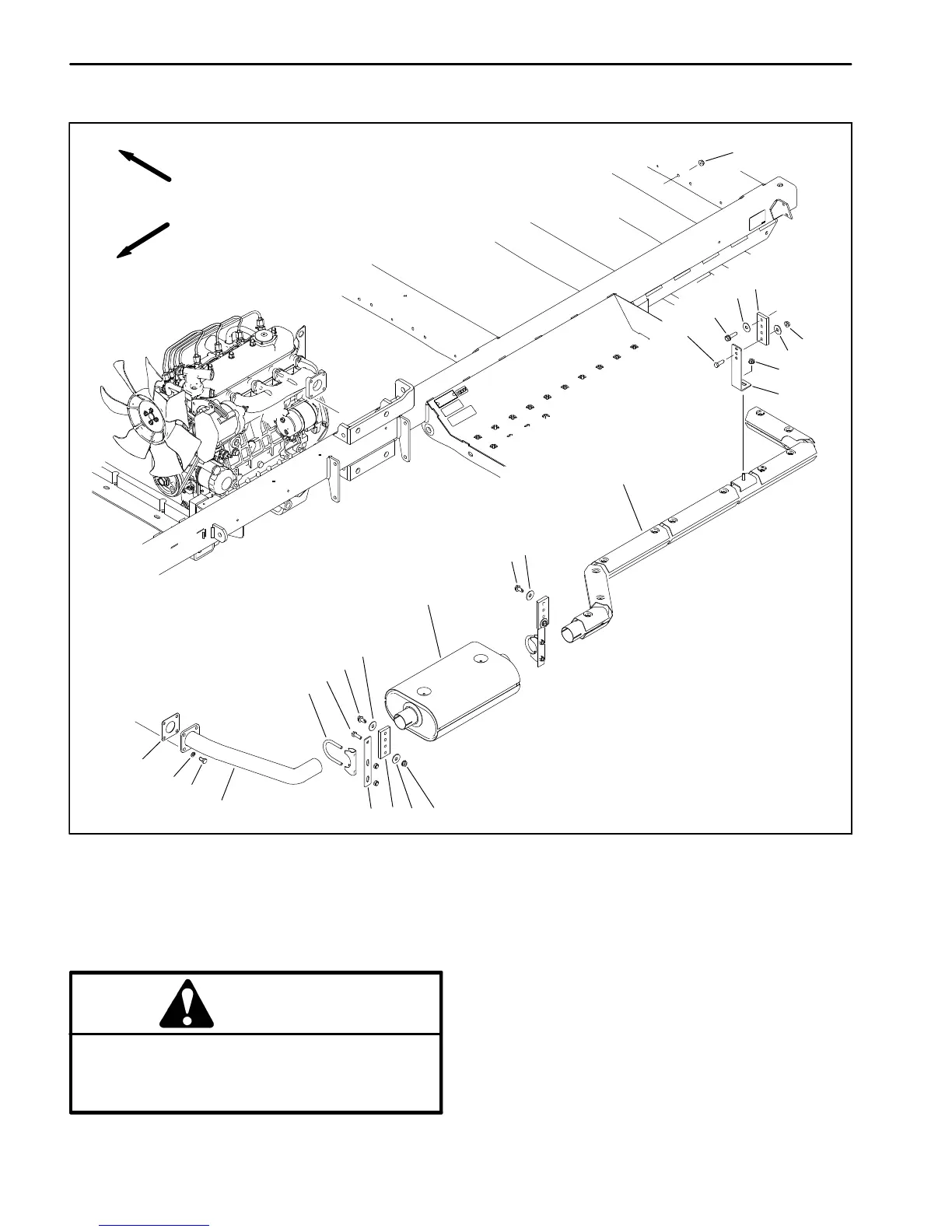

Figure 5
1. Exhaust pipe
2. Cap screw (4)
3. Lock washer (4)
4. Gasket
5. Muffler
6. Muffler clamp (2)
7. Cap screw (2)
8. Flange head screw (2)
9. Flat washer (6)
10. Hanger (2)
11. Rubber hanger (3)
12. Flange nut (3)
13. Tail pipe
14. Hanger
15. Flange head screw
16. Flange nut
11
11
12
12
12
13
14
15
16
1
2
3
4
5
6
7
7
8
8
9
9
9
9
9
10
FRONT
RIGHT
CAUTION
The muffler and exhaust system may be hot. To
avoid possible burns, allow the engine and ex-
haust system to cool before working on the ex-
haust system.
