Multi Pro 5800 Page 8 − 51 GeoLink Spray System
Service and Repairs
GPS Antenna (AGI−4)
The GPS antenna assembly is mounted to the machine
ROPS. Unswitched power is provided to the antenna as
long as the battery cables are connected to the battery.
A 10 amp fuse provides circuit protection for the
unswitched power to the antenna. A switched power cir-
cuit is also required to operate the antenna.
The AGI−4 antenna, X25 or X30 control console and
ASC−10 auto section controller communicate with each
other on a CAN−bus network. The GeoLink Can−bus
network is separate from the sprayer traction unit CAN−
bus.
NOTE: The AGI−4 antenna may include a cellular mo-
dem and IMU for machines with RTK correction.
Minimum voltage requirement: 5.5 VDC.
Diagnostic LEDs
PWR: power supply status (steady green = OK)
STAT: satellite and receiver status (flashing red = no
satellites, flashing yellow or green = satellites OK)
RX/TX: modem status (flashing green = receiving
position correction information)
SYSFIX: record and data status (flashing green =
correction information processed and position es-
tablished)
Connections
Coaxial connector for cellular antenna (machines
with RTK correction only)
12 pin harness connection (black)
12 pin harness connection (gray)
Coaxial connector for external GPS antenna (not
used)
A pair of similar twelve (12) pin connectors are used at
the GPS antenna. The layout of the wire harness con-
nectors is shown (Fig. 59). See the electrical schematics
and wire harness drawings and diagrams in Chapter 11
− Foldout Drawings in this manual for additional infor-
mation.

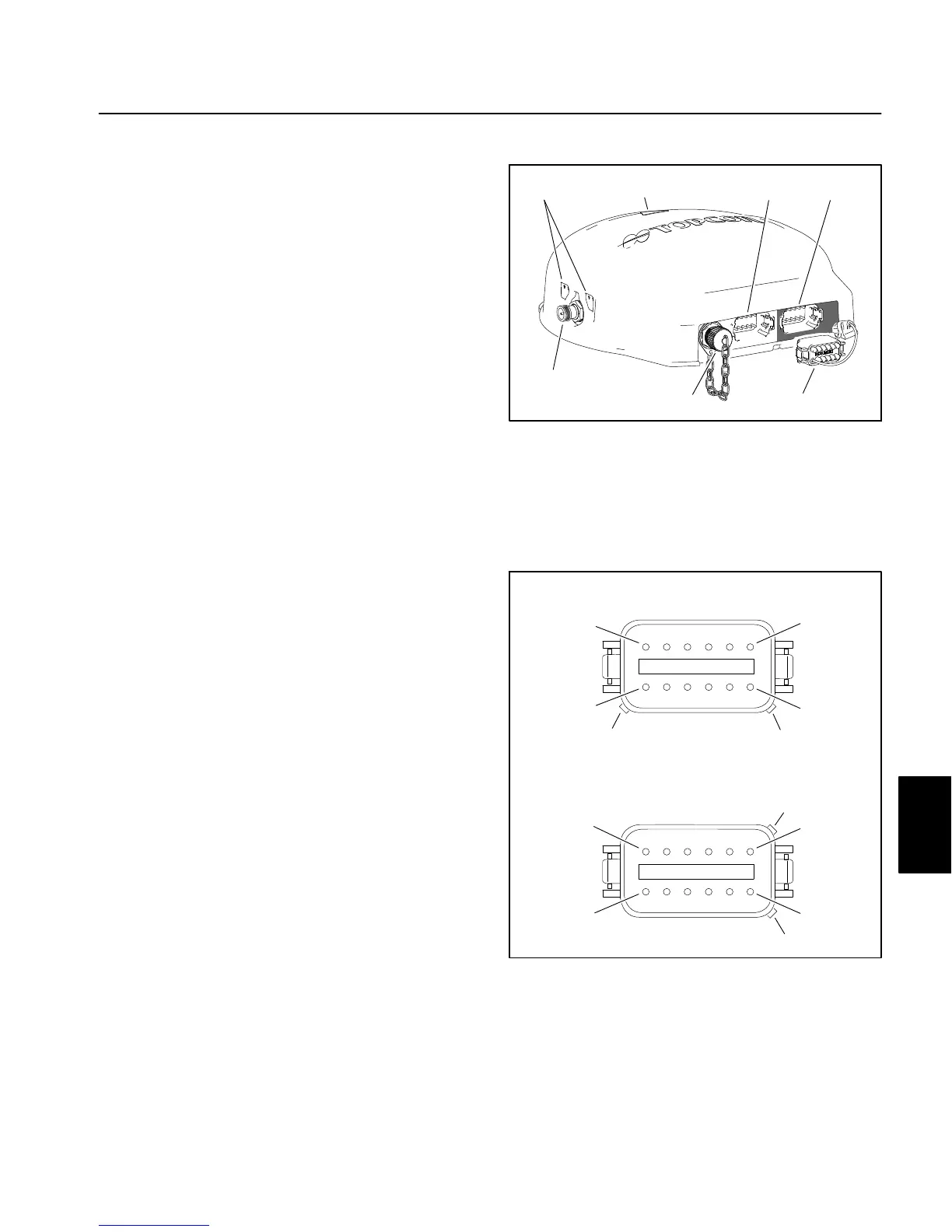

1. GPS antenna assembly
2. Diagnostic LEDs
3. Coaxial connector for
cellular antenna
4. Coaxial connector for
external GPS antenna
(not used)
5. 12 pin harness
connection (gray)
6. 12 pin harness
connection (black)
7. Tethered plug
Figure 58
12
3
4
56
7
A (GRAY)
B (BLACK)
KEY
KEY
KEY
KEY
1
12
1
12
6
7
6
7
Figure 59
WIRE HARNESS CONNECTORS FOR AGI−4
12 VDC UNSWITCHED − PIN 1 GRAY
12 VDC SWITCHED − PIN 2 GRAY
GROUND − PIN 12 GRAY
NOTE: The ASC−10, the X25 or X30 control console,
the GPS antenna assembly (including the modem and
the IMU for machines with RTK correction) are pro-
grammed specifically for each sprayer. If any of these
components require replacement for any reason, con-
tact the National Service Network (NSN) or your Toro
Distributor. The replacement components provided
should arrive pre−programmed for the specific sprayer.
GeoLink
Spray System
