Toro Multi Pro 5800 - Steering Control Valve Service

Multi Pro 5800Hydraulic System Page 5 − 80
Steering Control Valve Service

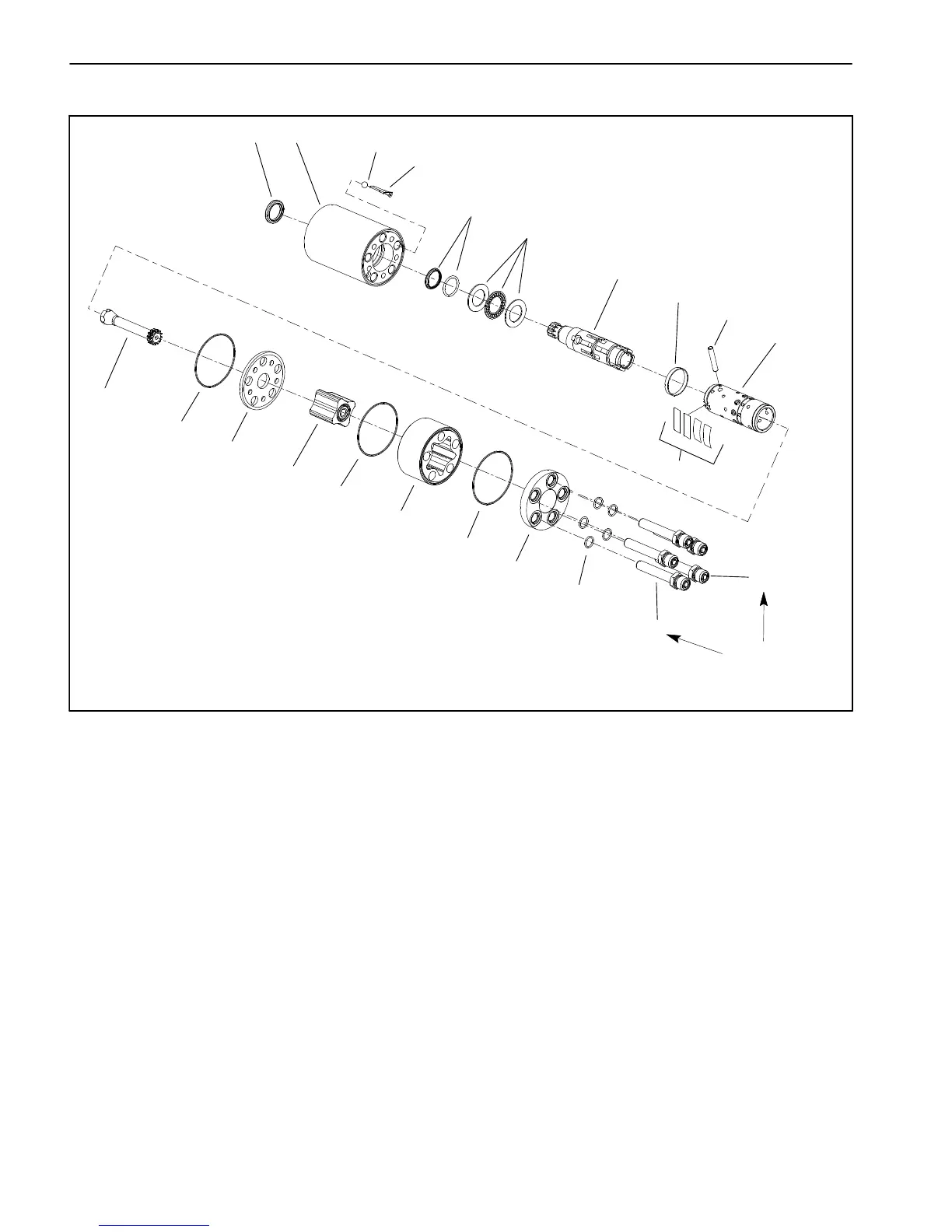

Figure 58
1
2
3
11
13
17
12
14
16
15
4
5
6
8
9
10
7
13
13
18
19
20
20 to 24 ft−lb
(27 to 33 N−m)
1. Sleeve
2. Cross pin
3. Ring
4. Spool
5. Bearing assembly
6. Shaft seal
7. Ball stop
8. Ball
9. Dust seal ring
10. Housing
11. Spring set
12. Cardan shaft
13. O−ring
14. Distribution plate
15. Inner gearwheel
16. Outer gearwheel
17. End cover
18. O−ring (5 used)
19. Screw/fitting (ports L, R)
20. Screw/fitting (ports P, T and E)
For service of the steering control valve, see the Sauer/
Danfoss Steering Unit Type OSPM Service Manual at
the end of this chapter.
