Multi Pro 5800Page 7 − 50ExcelaRate Spray System

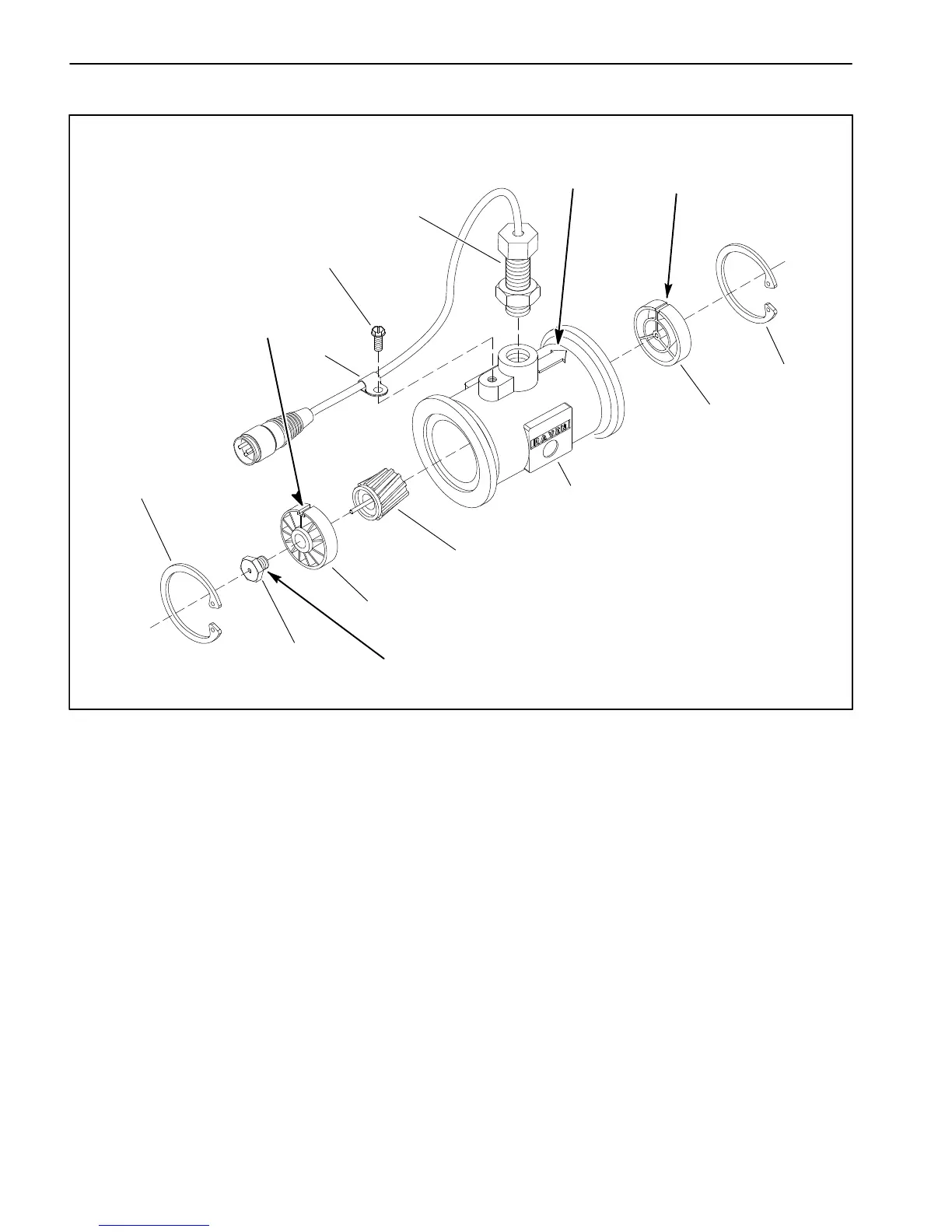

Flow Meter Service
1. Flow meter body
2. Rotor/magnet assembly
3. Upstream hub and bearing
4. Downstream hub
5. Retaining ring (2)
6. Sensor assembly
7. Turbine stud with bearing
8. Cable clamp
9. Screw
Figure 48
2
3
7
8
9
1
5
6
4
5
Notch
Sealent
Notch
Thread
Note Arrow
Direction
NOTE: Flow meter wire harness and sensor testing pro-
cedures can be found in Chapter 6 − Electrical System
in this manual.
