Toro Multi Pro 5800 Service Manual

Multi Pro 5800Chassis Page 9 − 24

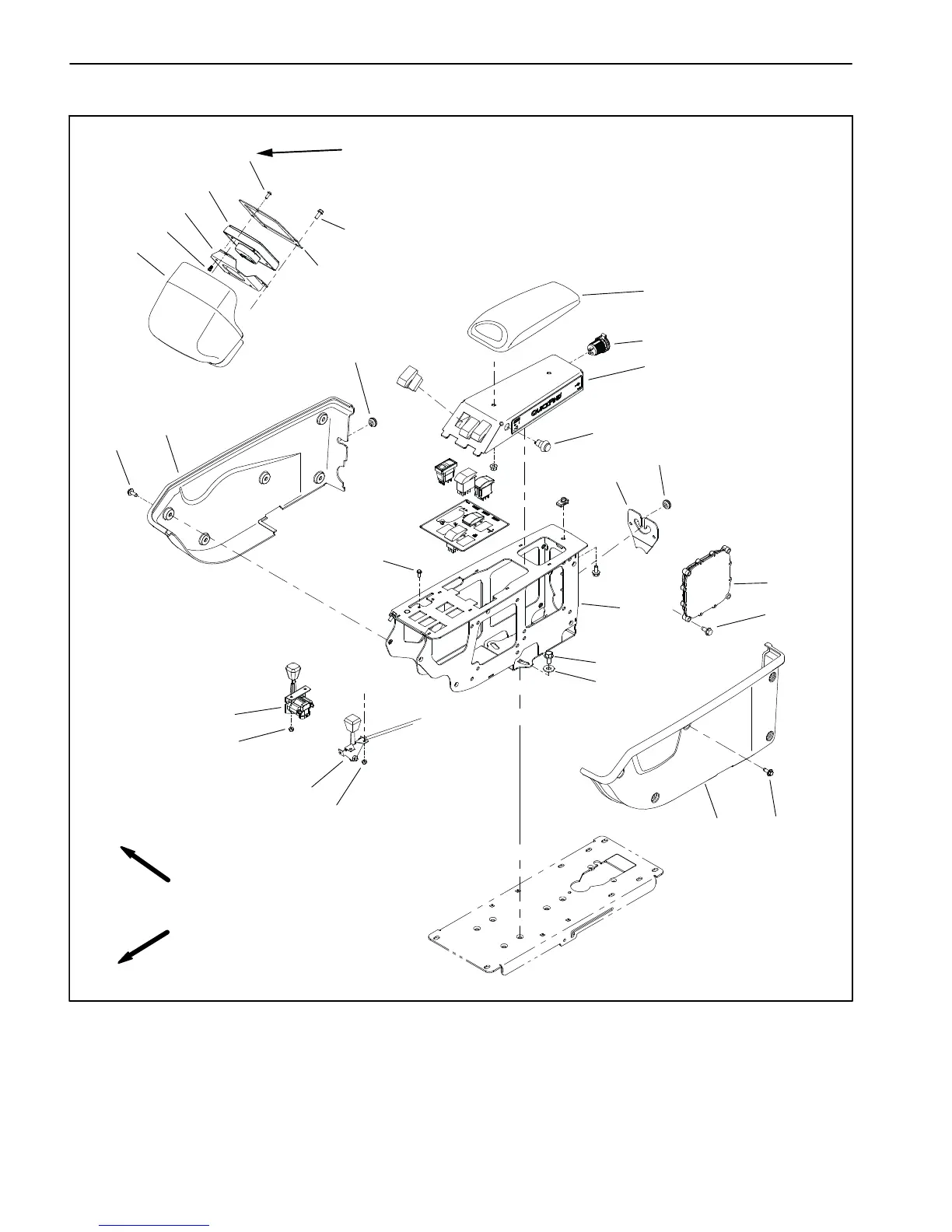

Console Assembly
1. RH cover
2. Washer head screw (10)
3. LH cover
4. Toro Electronic Controller (TEC)
5. Washer head screw (4)
6. Console hood
7. Pan head screw (4)
8. Retainer
9. InfoCenter display
10. Pan head screw (3)
11. Washer head screw (2)
12. Plate
13. Grommet (2)
14. Retainer
15. Master boom switch
16. Arm rest panel
17. USB socket
18. Arm rest
19. Washer head screw (2)
20. Throttle control
(gasoline engine)
21. Throttle control
(diesel engine)
22. Console arm
23. Flange head screw (3)
24. Flat washer (3)
25. Flange nut (2)
Figure 24
FRONT
RIGHT
11
25 to 35 in−lbs
(3 to 4 N−m)
12
13
13
14
15
16
17
18
19
20
1
2
2
3
4
5
6
7
8
9
10
21
22
23
24
25
25
