Toro Multi Pro 5800 Service Manual

Multi Pro 5800Page 7 − 56ExcelaRate Spray System

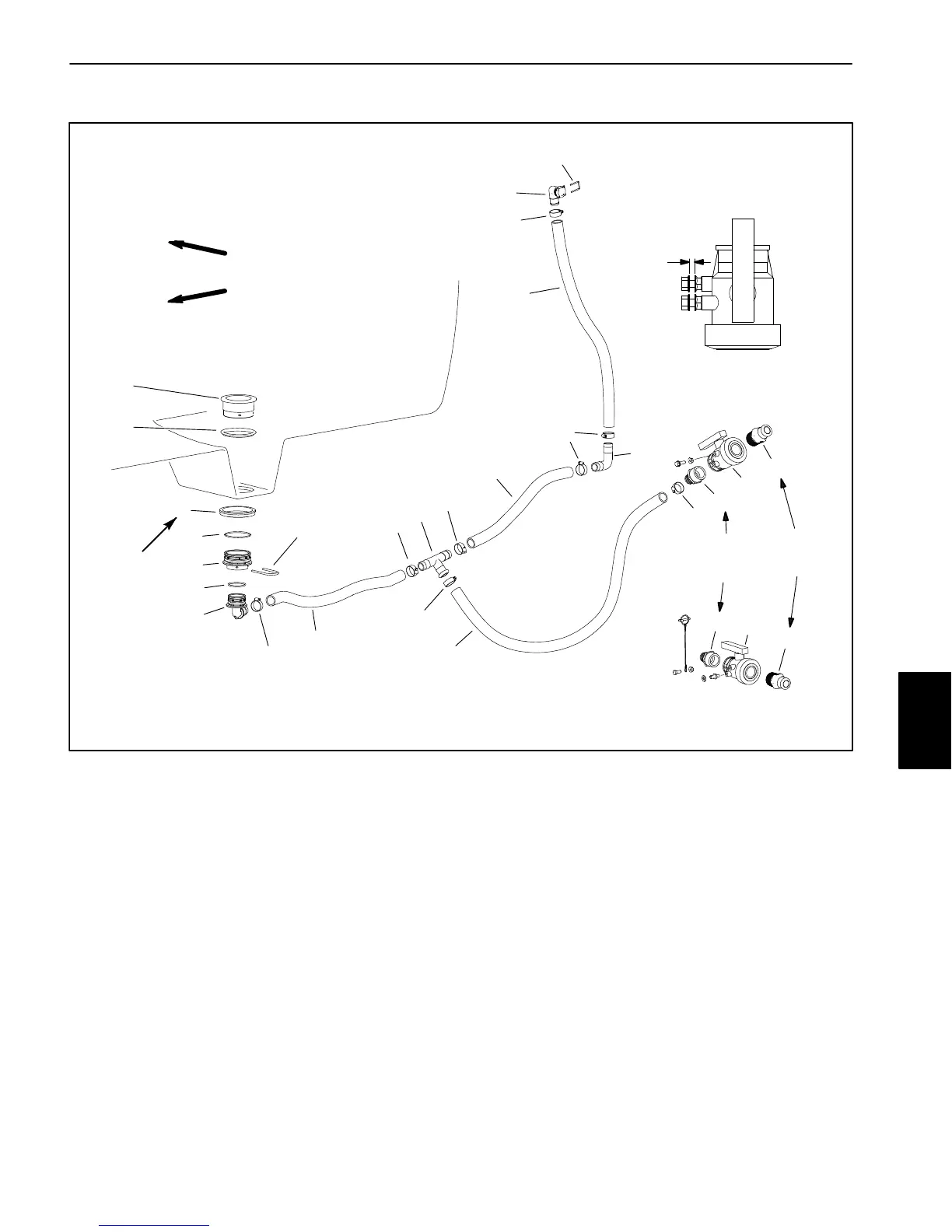

Drain Line
1. Bulkhead
2. Gasket
3. Nut
4. O−ring
5. Adapter
6. O−ring
7. Hose barb
8. Fork
9. Hose clamp (8)
10. Drain hose 26.5 in. (67 cm)
11. Tee
12. Drain hose 22 in. (56 cm)
13. Drain hose 25 in. (64 cm)
14. Elbow
15. Fork
16. Drain hose 41 in. (104 cm)
17. Hose barb
18. Hose barb − smooth
19. Drain valve
20. Hose barb − threaded
Figure 53
FRONT
RIGHT
0.22 in
(5.6 mm)
DRAIN VALVE
MACHINE
SERIAL NUMBERS
ABOVE 400000000
MACHINE SERIAL NUMBERS
BELOW 400000000
11
12
13
14
15
16
18
18
17
19
19
20
20
1
2
3
4
7
8
9
9
9
9
9
9
9
10
APPLY
TEFLON
TAPE
APPLY
SILICONE
SEALANT
5
6
20 to 24 ft−lb
(27 to 33 N−m)
ExcelaRate
Spray System
