Toro Multi Pro 5800 Service Manual

Multi Pro 5800Page 8 − 94GeoLink Spray System

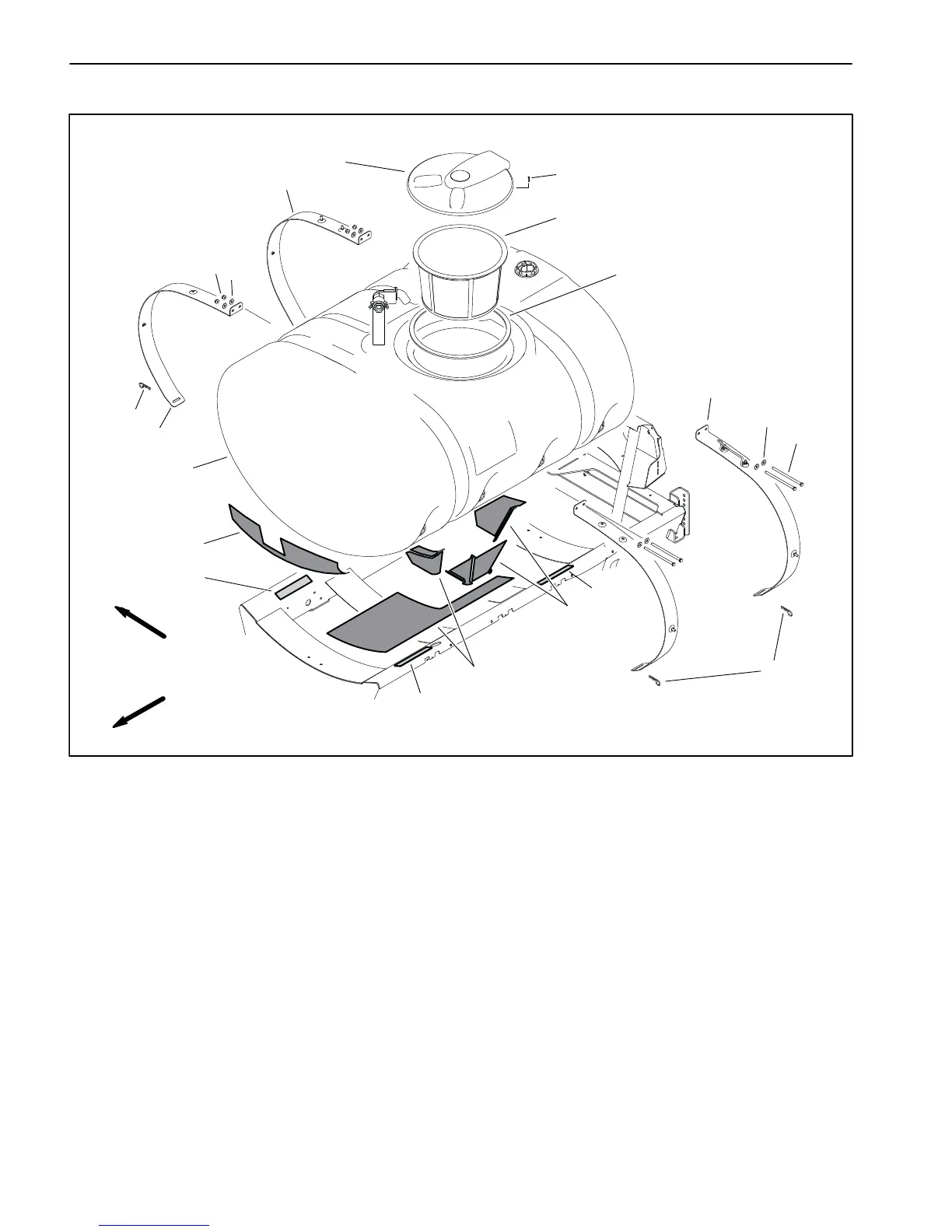

Spray Tank
1. Spray tank
2. Tank strap (4)
3. Flat washer (8)
4. Hex head screw (4)
5. Lock nut (4)
6. Hair pin (4)
7. Filter basket
8. Gasket
9. Lid assembly
10. Pan head screw (8)
11. Heat shield (5)
12. Pad (4)
Figure 96
FRONT
RIGHT
11
11
11
12
12
12
1
2
2
2
3
3
4
5
6
6
7
8
9
10
NOTE: Removing the spray tank may provide better
service access to the engine and hydraulic pumps.
