Multi Pro 5800 Page 6 − 93 Electrical System
Road Headlight Switch (Optional)

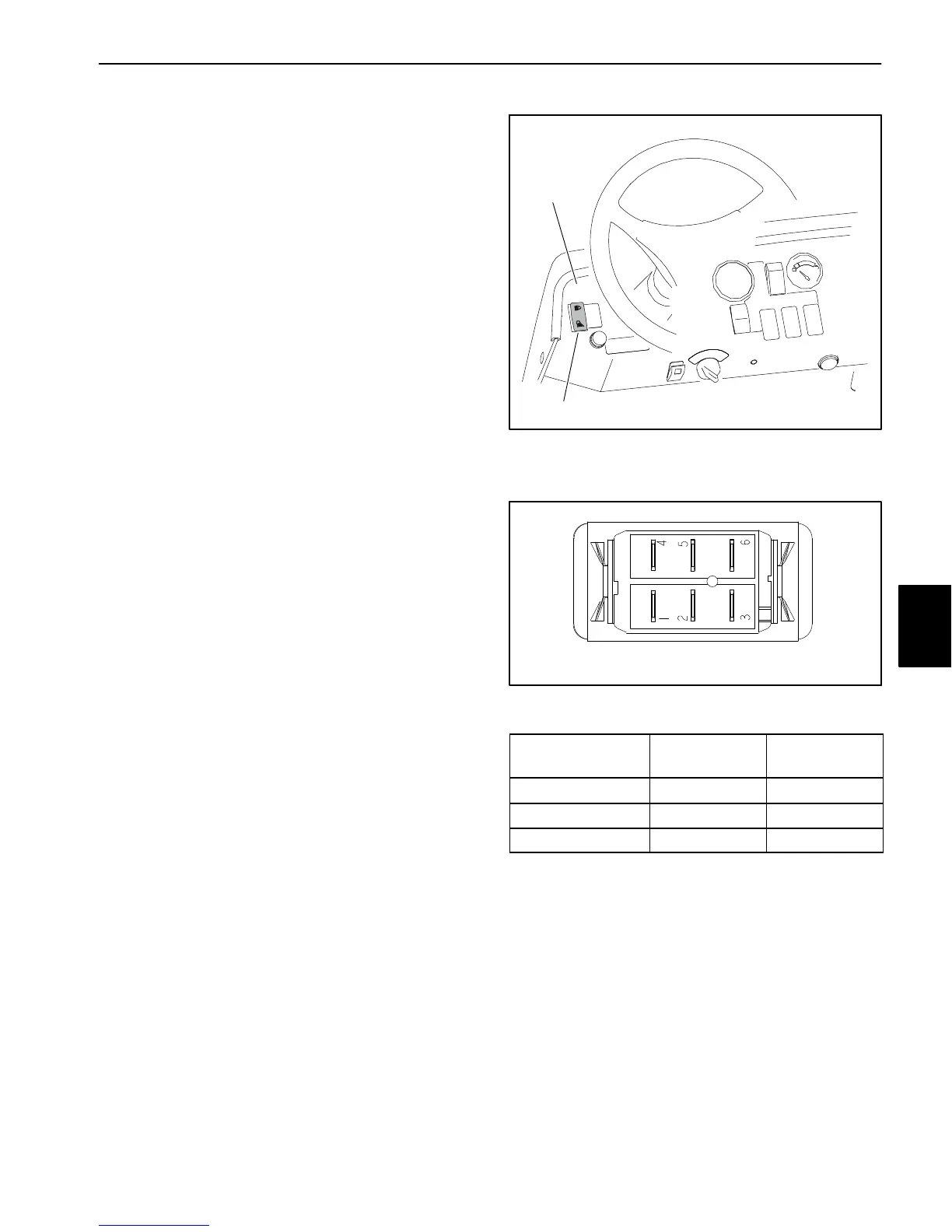

The three (3) position road headlight switch is located on
the left side of the instrument panel (Fig. 145) and is
used to turn the headlights on−high beam, off and on−
low beam. Machines without an optional homologation
(road light) kit installed use a two (2) position headlight
switch in the same location (see Headlight Switch in this
chapter).
Testing
1. Park machine on a level surface, stop engine and en-
gage parking brake. Remove key from ignition switch.
2. Locate the switch to be tested and disconnect the
wire harness electrical connector from the switch.
3. With the use of a multimeter (ohms setting), the
switch functions may be tested to determine whether
continuity exists between the various terminals for each
position. The switch terminals are marked as shown
(Fig. 146) and the circuitry of the switch is shown in the
chart (Fig. 147). Verify continuity between switch termi-
nals.
4. Replace switch if necessary.
5. If the switch tests correctly and a circuit problem still
exists, check the wire harnesses (see Electrical Sche-
matics and Wire Harness Drawings and Diagrams in
Chapter 11 − Foldout Drawings in this manual).
6. Connect the wire harness connector to the switch af-
ter testing is complete.
1. Instrument panel 2. Headlight switch
Figure 145
1
2
Figure 146
BACK OF SWITCH
SWITCH
POSITION
CLOSED
TERMINALS
OPEN
TERMINALS
HIGH BEAM 2 + 3, 5 + 6 1 + 2, 4 + 5
OFF NONE ALL
LOW BEAM 1 + 2, 4 + 5 2 + 3, 5 + 6
Figure 147
Electrical
System
