Toro Multi Pro 5800 Service Manual

Multi Pro 5800−GPage 4 − 12Kubota Gasoline Engine

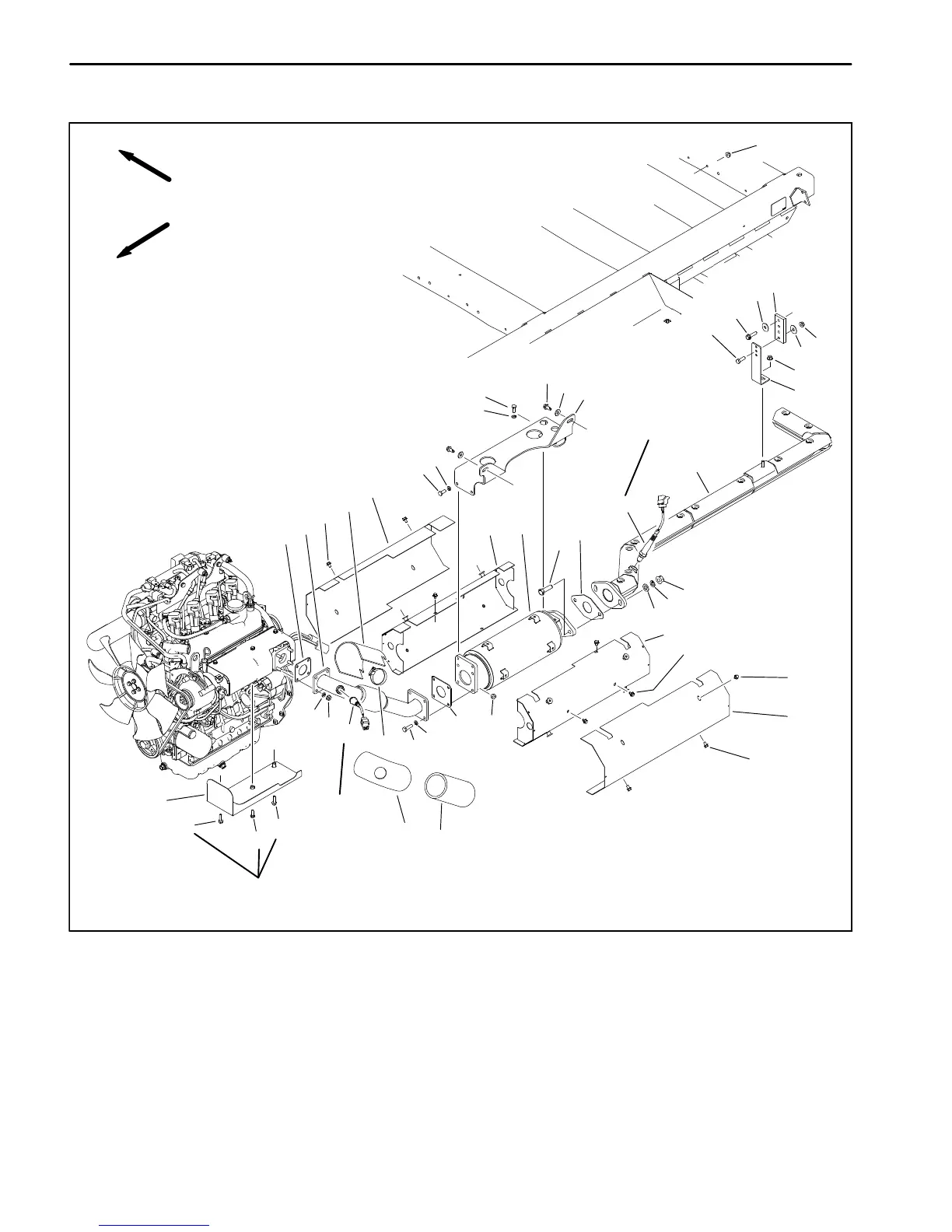

Exhaust System
Figure 7
1. Gasket
2. Header pipe
3. Flange head screw (16)
4. Shield − composite
5. Muffler shield − outer (2)
6. Cap screw (4)
7. Lock washer (4)
8. Flange head screw (2)
9. Flat washer (2)
10. Bracket − catalyst
11. Cap screw (2)
12. Gasket
13. Oxygen sensor (2)
14. Tail pipe
15. Hanger
16. Flange nut (2)
17. Flat washer (2)
18. Flange nut
19. Rubber hanger
20. Cap screw
21. Flange nut (2)
22. Lock washer (2)
23. Flat washer (2)
24. Muffler shield − inner (2)
25. Catalytic muffler
26. Flange nut (8)
27. Gasket
28. Cap screw (4)
29. Hose clamp
30. Jacket lower
31. Jacket upper
32. Flange head screw (2)
33. Flange head screw
34. Manifold shield − bottom
FRONT
RIGHT
11
14
12
13
13
15
16
16
16
17
17
18
19
20
1
2
5
3
3
3
3
4
5
6
6
7
7
7
7
8
9
10
21
22
23
24
24
25
26
26
27
28
APPLY
29
30
33
31
32
32
34
APPLY ANTI SIEZE
LUBRICANT
29 to 44 ft−lb
LOCTITE 242
(40 to 60 N−m)
