Toro Multi Pro 5800 - Front Suspension

Multi Pro 5800Chassis Page 9 − 10
Front Suspension
1. Front axle assembly
2. Cap screw (4 per spring)
3. Spring plate
4. Hardened washer (4 per spring)
5. Lock nut (4 per spring)
6. Leaf spring (2)
7. Shackle − inside
8. Shackle bushing
9. Shackle outside
10. Shoulder bolt (3 per spring)
11. Flat washer (4 per spring)
12. Lock washer (4 per spring)
13. Hex nut (3 per spring)
14. Axle bumper (2)
15. Lock washer (2)
16. Hex nut (2)
17. Shock absorber (2)
18. Rubber bushing (4 per shock)
19. Spacer (2 per shock)
20. Spacer (2 per shock)
21. Washer (2 per shock)
22. Cap screw (2 per shock)
23. Hex nut (2 per shock)

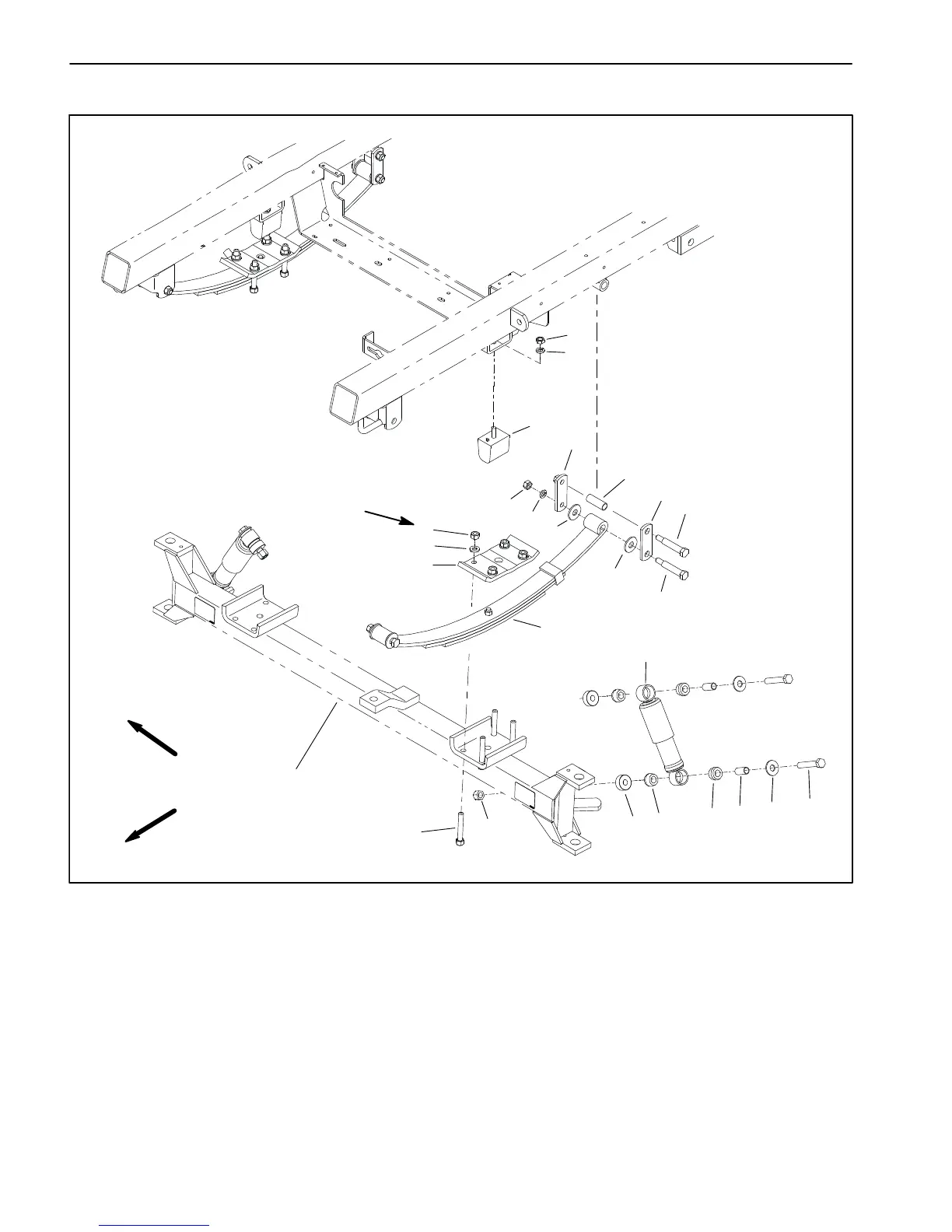

Figure 7
RIGHT
FRONT
12
13
14
15
16
17
18
18
19
20
21
22
23
1
2
3
4
5
6
7
9
8
10
10
11
11
See text for
tightening
procedure
