Toro Multi Pro 5800 Service Manual

Multi Pro 5800Page 10 − 26Ultra Sonic Boom Kit (Optional)

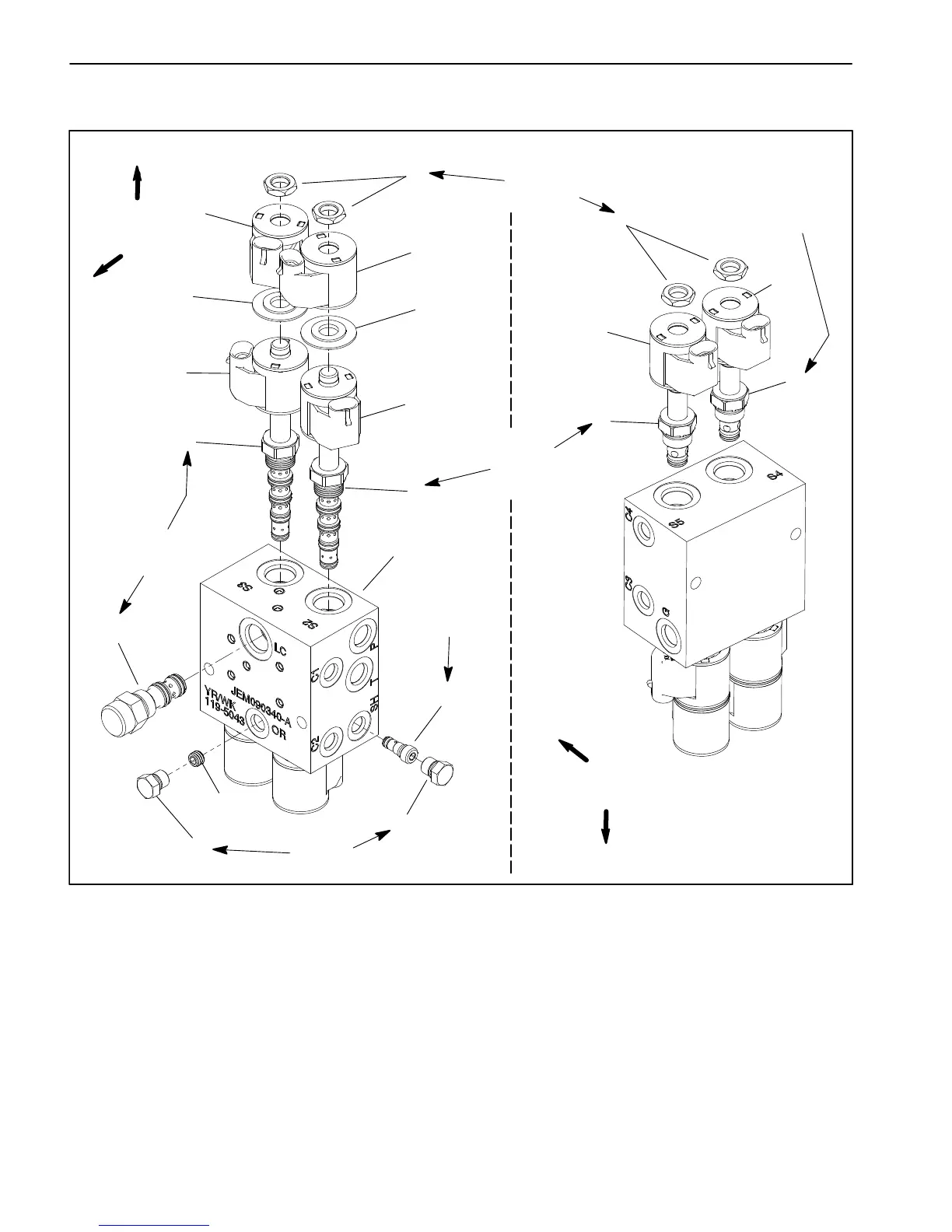

Ultra Sonic Boom Lift Manifold Service
1. Lift control manifold
2. Coil nut (4)
3. Orifice (0.030)
4. Zero leak plug (2)
5. Logic element (LC)
6. Load shuttle (SH)
7. Solenoid valve (2)
8. Solenoid valve (2)
9. Solenoid coil (6)
10. Coil spacer (2)
Figure 23
3
6
8
9
10
1
5
7
4
10
9
9
9
9
7
4
8
9
2
2
FRONT
DOWN
FRONT
DOWN
60 in−lb
(6.7 N−m)
20 ft−lb
(27 N−m)
20 ft−lb
(27 N−m)
20 ft−lb
(27 N−m)
20 ft−lb
(27 N−m)
60 in−lb
(6.7 N−m)
The ports on the Ultra Sonic Boom System boom lift con-
trol manifold are marked for easy identification of com-
ponents. Example: P is the pump supply connection port
and S2 is the location for solenoid valve S2. See Figure
24 to identify the function of the hydraulic lines and car-
tridge valves at each manifold port.
