Multi Pro 5800Page 6 − 24Electrical System
Diagnostics

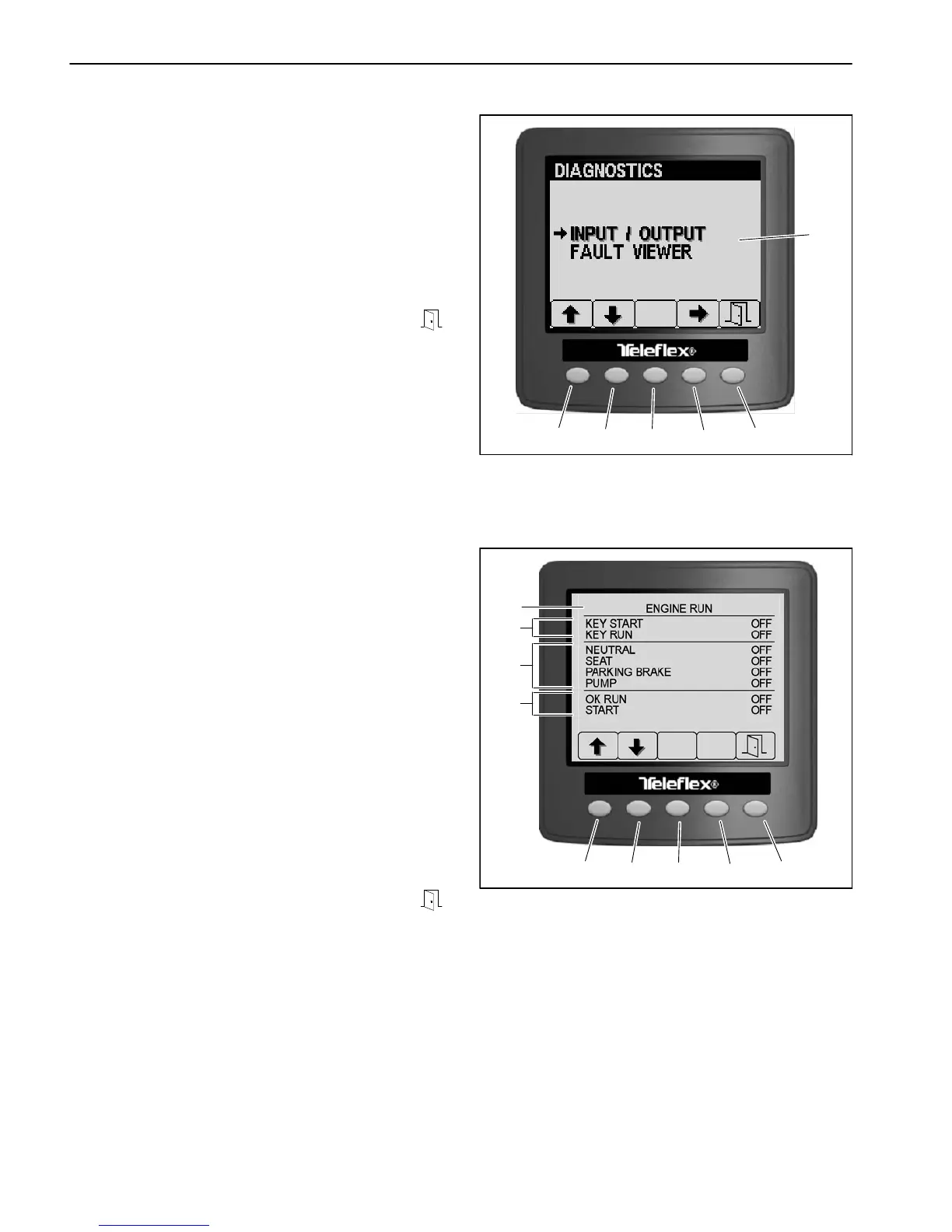

The Diagnostic screen (Fig. 30) is accessed from the
main menu and provides access to the following
screens:
Input / Output
Fault Viewer
Access the diagnostics screens by pressing buttons 1 or
2 to highlight the desired screen then button 4 to select
the highlighted screen.
Return to the previous screen by pressing button 5
INPUT/OUTPUT
The input/output screens display the current state of the
various Toro Electronic Controller (TEC) inputs, quali-
fiers and outputs necessary to allow a machine or spray
system function to occur. The input/output screens
should be used to troubleshoot machine operation is-
sues, and check that necessary components and circuit
wiring are functioning correctly (see Troubleshooting in
this chapter). Scroll through the input/output screens by
pressing buttons 1 or 2.
Each of the following machine functions has its own in-
put/output screen:
Pumps
Booms
Engine Run
Each screen is separated into four (4) areas of informa-
tion (Fig. 31). The first area identifies the machine func-
tion. The second area identifies the inputs that are
necessary for the machine function to occur. The third
area identifies qualifiers that are involved with the ma-
chine function (safety interlocks). The fourth area identi-
fies the outputs that are necessary for the machine
function to occur.
Return to the previous screen by pressing button 5
1. Button 1
2. Button 2
3. Button 3
4. Button 4
5. Button 5
6. Diagnostics screen
Figure 30
1
2
3
4
5
6
1. Button 1
2. Button 2
3. Button 3
4. Button 4
5. Button 5
6. Machine function
7. Inputs
8. Qualifiers
9. Outputs
Figure 31
1
2
3
4
5
6
7
8
9
