Toro Multi Pro 5800 - Air Cleaner

Multi Pro 5800−GPage 4 − 10Kubota Gasoline Engine
Air Cleaner

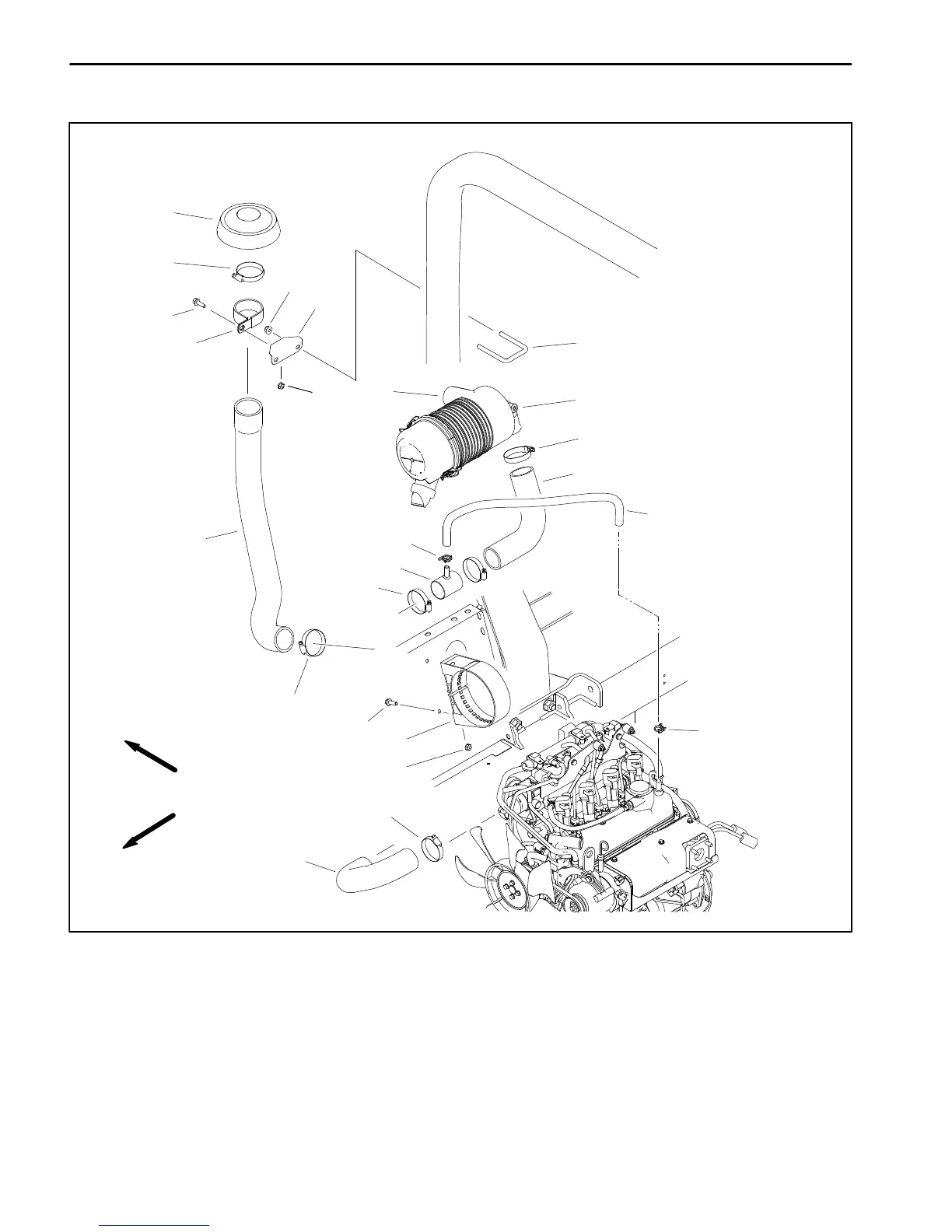

Figure 5
1. Cap
2. Hose clamp
3. Flange head screw
4. Clamp
5. Flange nut (2)
6. Bracket
7. Flange nut
8. Hose
9. Hose clamp (5)
10. Flange head screw (2)
11. Air cleaner mount
12. Flange nut (2)
13. Hose
14. Air cleaner assembly
15. U−Bolt
16. Breather hose
17. Hose clamp (2)
18. Tee
19. Hose
FRONT
RIGHT
12
14
13
15
16
17
17
18
19
