Multi Pro 5800Hydraulic System Page 5 − 96

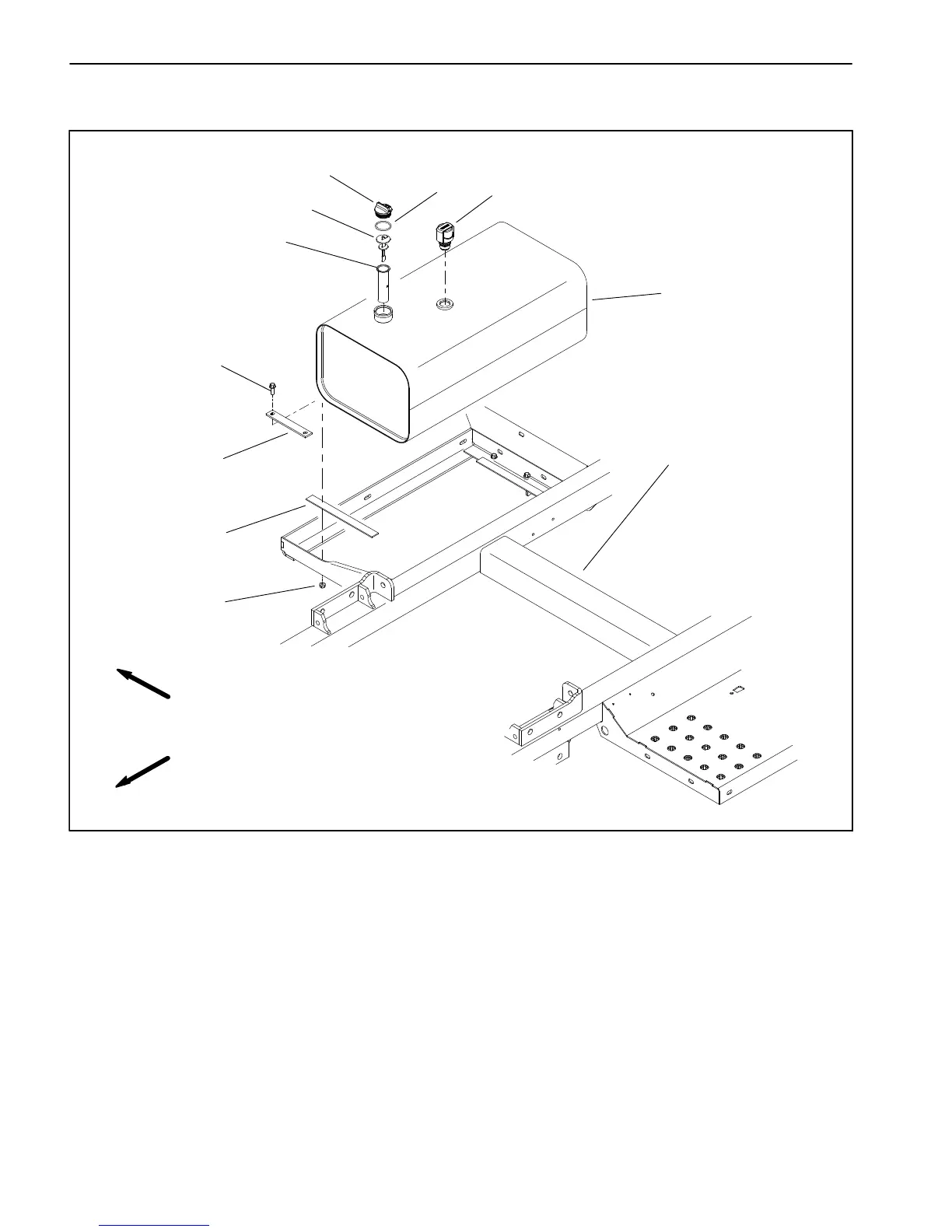

Hydraulic Reservoir
1. Hydraulic reservoir cap
2. Strainer
3. Hydraulic reservoir
4. O−ring
5. Hold down strap (2)
6. Flange head screw (4)
7. Cushion (2)
8. Flange nut (4)
9. Frame
10. Breather
11. Dipstick
Figure 70
2
3
6
8
9
1
5
7
4
11
10
FRONT
RIGHT
