Multi Pro 5800 Page 8 − 11 GeoLink Spray System
X25 and X30 Control Console Screens
Operator control of the system is handled through either
a X25 (8.5 in. diagonal) or X30 (12 in. diagonal) touch
screen console mounted to the vehicle dash panel. The
spray system is configured and spray application is
monitored through the X25 or X30 console.
Operation Screen
NOTE: Based on the console type and the software ver-
sion, some differences may exist between your machine
and the information provided here.

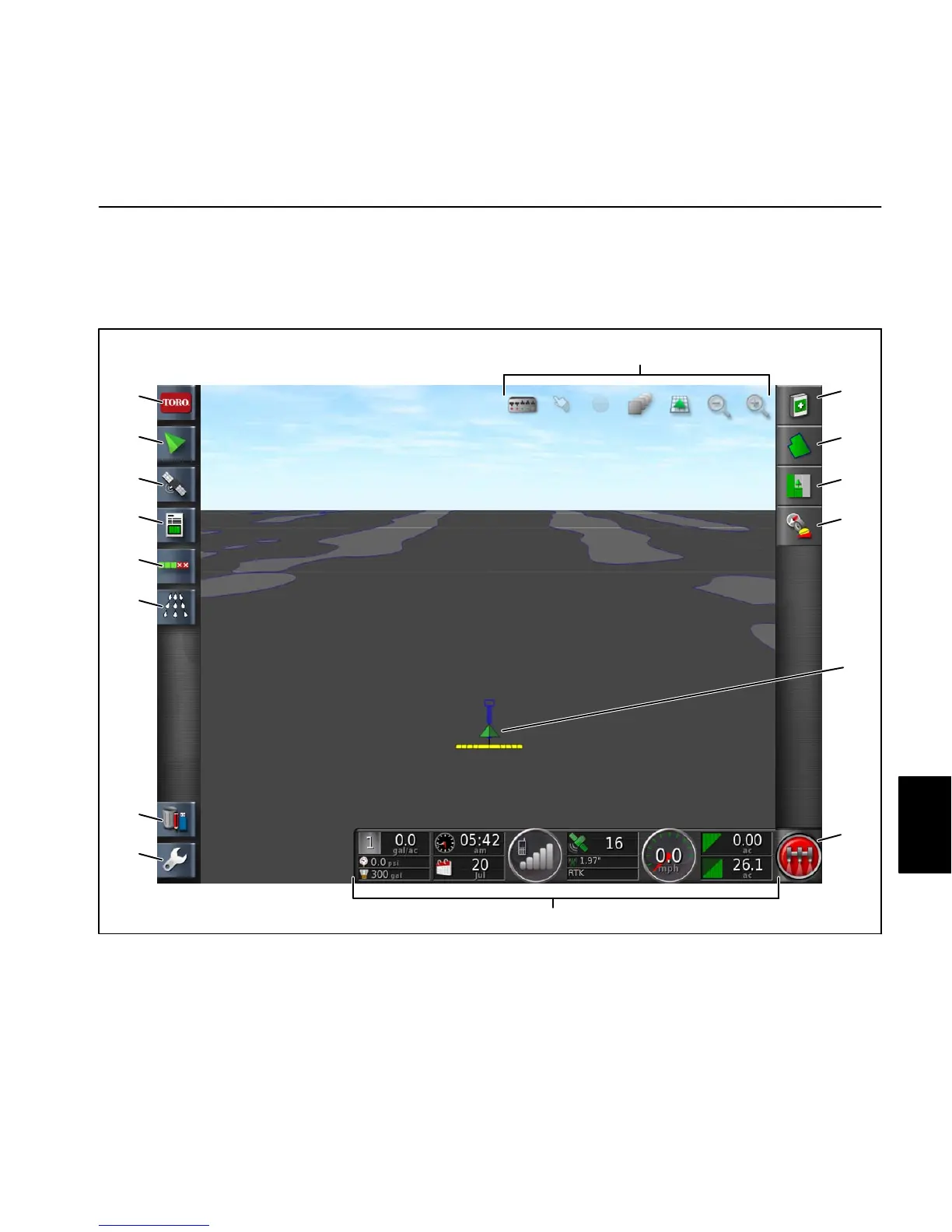

A brief explanation of each of the operation screen icons
and the sub−menus and screens they expose follows in
the order they appear in Figure 5.
1. About menu icon
2. Guidance menu icon
3. GPS menu icon
4. Job information menu icon
5. Automatic section control menu icon
6. Spray controller menu icon
7. Inventory manager menu icon
8. Setup screen icon
9. View controls menu
10. Help menu icon
11. Job assistant icon
12. Record job details menu icon
13. Receiver (compass) calibration
menu icon
14. Sprayer icon
15. Virtual master switch icon
16. Virtual dashboard
Figure 5
1
2
3
4
5
6
7
8
11
12
13
15
9
16
14
10
GeoLink
Spray System
