Toro Multi Pro 5800 Service Manual

Multi Pro 5800Page 8 − 86GeoLink Spray System

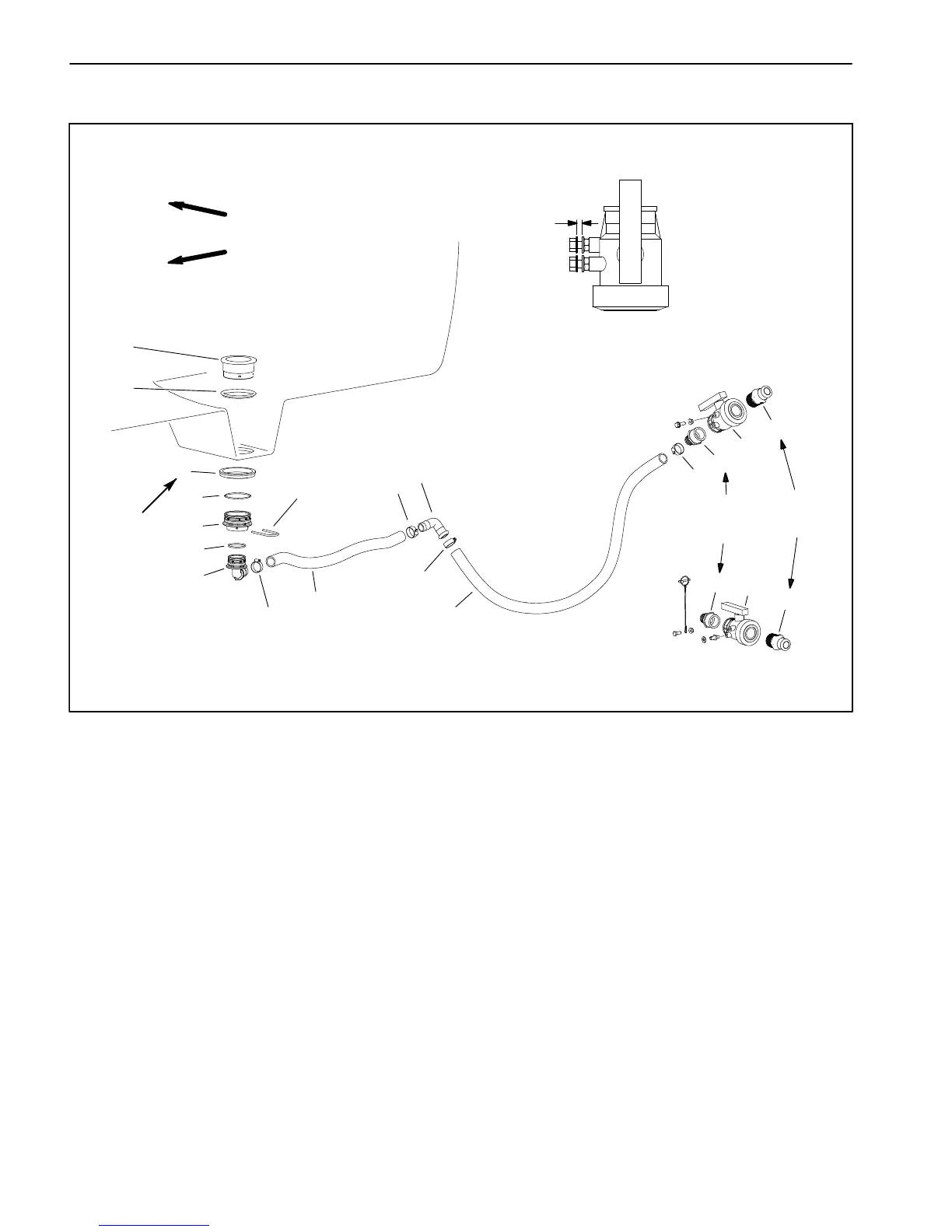

Drain Line
1. Bulkhead
2. Gasket
3. Nut
4. O−ring
5. Adapter
6. O−ring
7. Hose barb
8. Fork
9. Hose clamp (4)
10. Drain hose 26.5 in. (67 cm)
11. Elbow
12. Drain hose 41 in. (104 cm)
13. Hose barb − smooth
14. Drain valve
15. Hose barb − threaded
Figure 89
FRONT
RIGHT
0.22 in
(5.6 mm)
DRAIN VALVE
MACHINE
SERIAL NUMBERS
ABOVE 400000000
MACHINE SERIAL NUMBERS
BELOW 400000000
11
12
13
13
14
14
15
15
1
2
3
4
7
8
9
9
9
9
10
APPLY
TEFLON
TAPE
APPLY
SILICONE
SEALANT
5
6
20 to 24 ft−lb
(27 to 33 N−m)
