Multi Pro 5800 Page 10 − 7 Ultra Sonic Boom Kit (Optional)
Sprayer Operation on Level Turf
During sprayer operation with the sonic boom switch in
the automatic position (sonic boom light is illuminated),
the boom mounted sonic boom sensors continually
send impulse signals and then receive echoes as the
signals bounce off the turf. The Toro electronic controller
(TEC) determines the sensor distance from the ground
based on the elapsed time between the sensor signal
generation and the received echo. As long as the sensor
height remains the same as the calibrated height, the
spray boom will remain at a fixed height from the ground
for spraying accuracy.
On level turf, the boom sensors continually send signals
and receive echoes that determine that the boom sec-
tions are at the calibrated height. Thus, there is no need
to change boom height. The TEC does not energize lift
control manifold solenoid coils so hydraulic flow by-
passes the boom lift cylinders (Fig. 2). The boom sec-
tions will remain at the correct, level position.

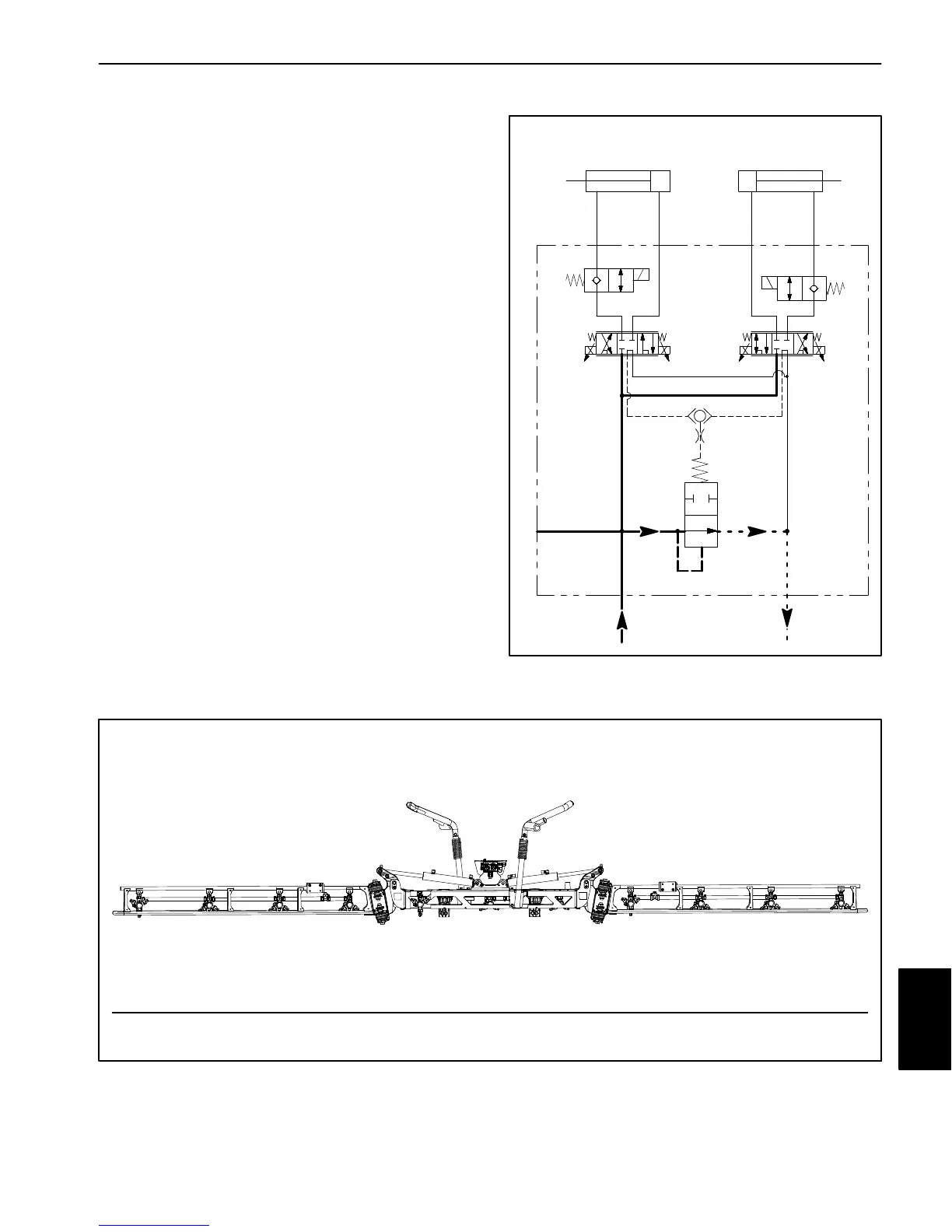

Figure 2
TOP
PT
G
LC
S3
SH
OR
S4
S2
C2 C1 C3 C4
S5
RIGHT CYLINDER
RETRACT TO RAISE
LEFT CYLINDER
RETRACT TO RAISE
COIL
BOTTOM
COIL
TOP
COIL
BOTTOM
COIL
CONTROL
VALVE
STEERING
FROM
HYDRAULIC
RESERVOIR
FILTER AND
TO OIL
(SHIFTED)
Figure 3
LEVEL GROUND
CONSISTENT BOOM HEIGHT
SO LIFT CYLINDER MOVEMENT
IS NOT NECESSARY
Ultra Sonic
Boom System
To Next Page
