Toro Multi Pro 5800 - Gear Pump Service

Multi Pro 5800Hydraulic System Page 5 − 58
Gear Pump Service

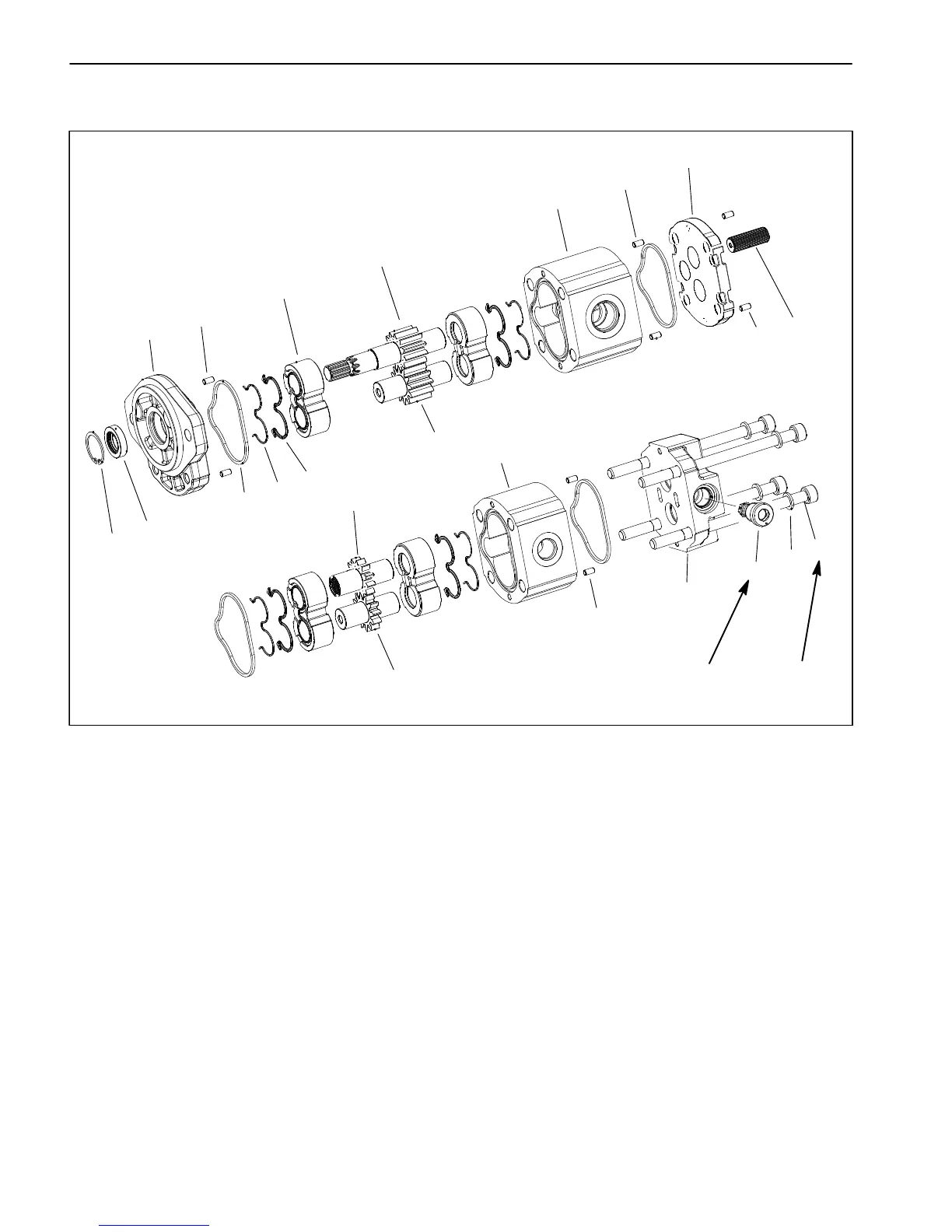

Figure 43
1. Front cover
2. Dowel pin (8)
3. Square section seal (4)
4. Back−up ring (4)
5. Pressure seal (4)
6. Thrust plate (4)
7. Drive shaft
8. Driven gear
9. Body (P1 section)
10. Flange
11. Splined connecting shaft
12. Drive gear
13. Body (P2 section)
14. Retaining ring
15. Front seal
16. Driven gear
17. Rear cover
18. Relief valve (steering/boom lift)
19. Washer (4)
20. Bolt (4)
33 ft−lb
(45 N−m)
2
3
6
8
9
11
13
1
5
7
12
14
15
16
17
18
19
20
4
2
2
2
10
22 ft−lb
(30 N−m)
