Multi Pro 5800Hydraulic System Page 5 − 70
Wheel Motor Service
1. Retaining ring
2. Shaft seal
3. Washer
4. Retaining ring
5. Thrust bearing race
6. Thrust bearing
7. Drive shaft
8. Cap screw (6)
9. Back plate
10. Dowel pin
11. Dowel pin (3)
12. O−ring
13. Needle bearing
14. Valve plate
15. Rotating kit
16. Cam plate insert
17. Housing
18. Speed sensor (RH wheel)
19. O−ring
20. O−ring
21. Needle bearing

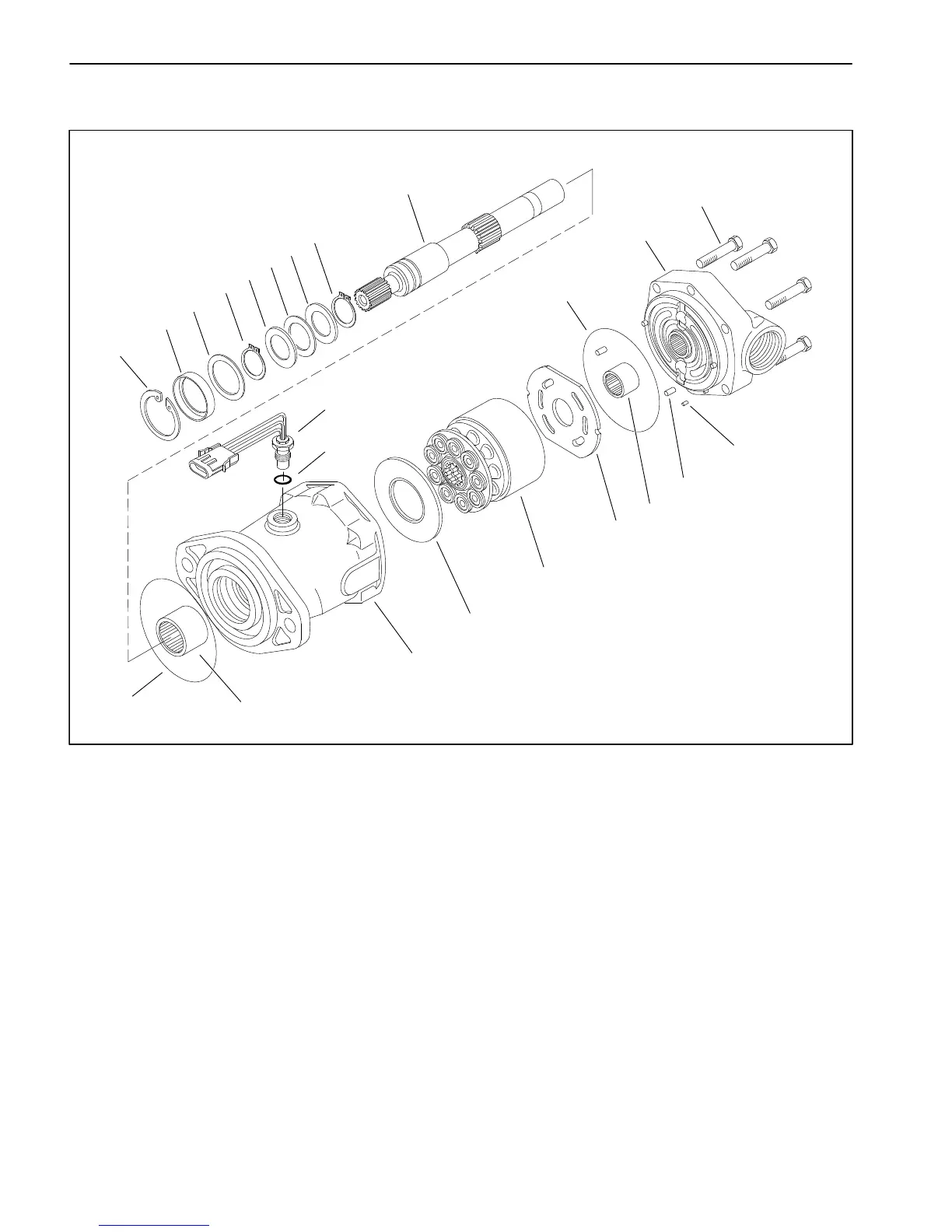

Figure 52
8
11
9
19
15
20
18
17
12
13
14
10
1
7
4
5
6
4
5
2
3
16
21
The wheel motors used on the Multi Pro 5800 are very
similar. The major difference is the speed sensor in-
stalled in the right side wheel motor. Service of the left
and right motors requires the same procedure.
For service of the wheel motors, see the Eaton Model
74318 and 74348 Piston Motors: Fixed Displacement,
Valve Plate Design Repair Information at the end of this
chapter.
For information on speed sensor installation, see Trac-
tion Speed Sensor in the Service and Repairs section of
Chapter 5 − Electrical System.
