Multi Pro 5800 Page 6 − 91 Electrical System
Electric Hose Reel Motor Switch (Optional)
The electric hose reel kit motor switch is a momentary
push button switch used to energize the hose reel relay.
The hose reel switch is located on the hose reel control
box (Fig. 141).
Testing
1. Park machine on a level surface, stop engine and en-
gage parking brake. Remove key from ignition switch.
2. Remove the hose reel control box from the reel
mount. Locate hose reel switch and unplug wire harness
connector from switch.
3. With the use of a multimeter (ohms setting), electric
hose reel kit switch functions may be tested to determine
whether continuity exists across the terminals for each
switch position. Continuity (zero ohms resistance)
should exist across the switch terminals when the switch
is depressed. There should not be continuity (infinite
ohms resistance) across the switch terminals when the
switch is not depressed.
4. Replace switch if testing determines that it is faulty.
5. If the switch tests correctly and a circuit problem still
exists, check wire harness (see Electrical Schematic
and Wire Harness Drawings in Chapter 11 − Foldout
Drawings in this manual).
6. Connect the wire harness connector to the switch
and install the hose reel control box after testing is com-
plete.

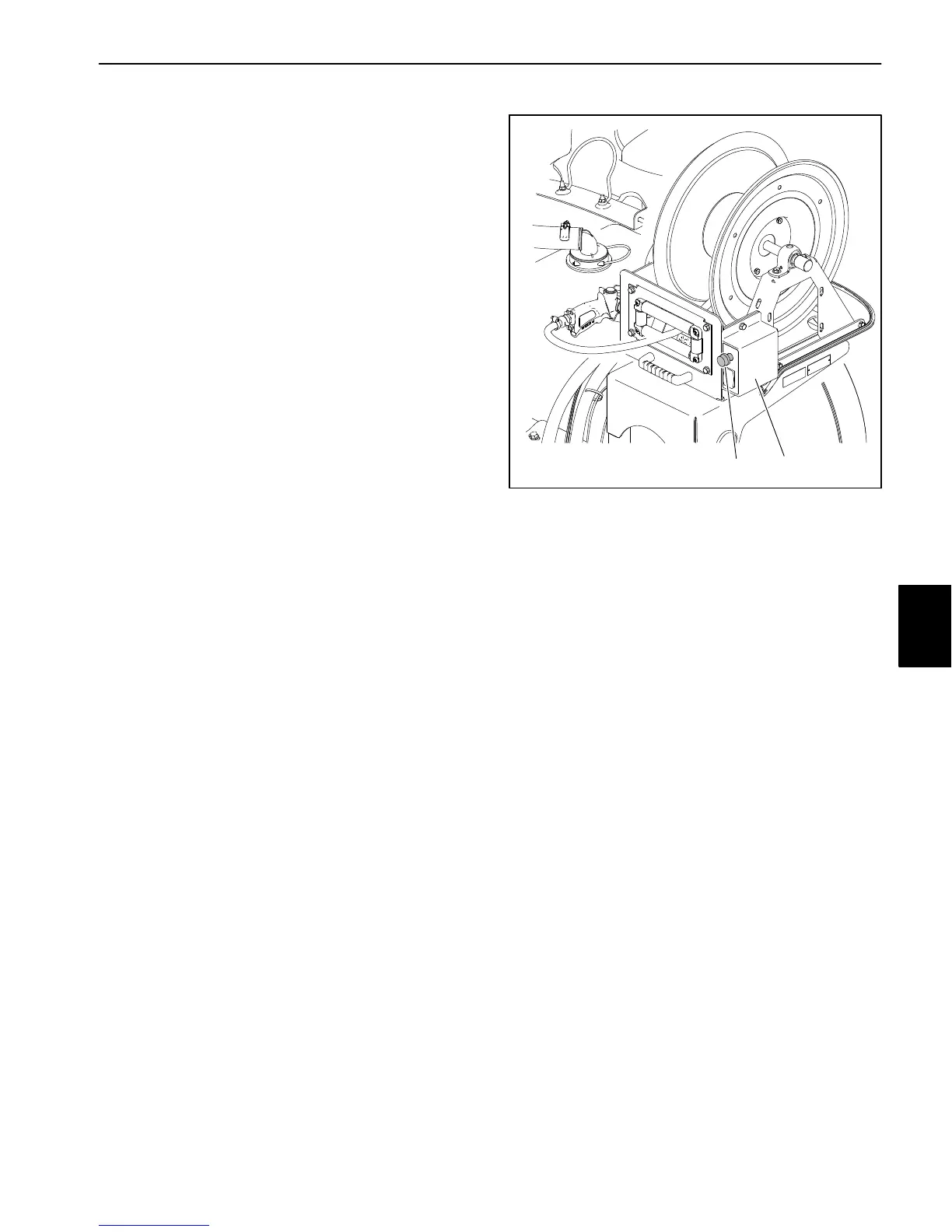

1. Hose reel control box 2. Hose reel motor switch
Figure 141
12
Electrical
System
