Multi Pro 5800Page 6 − 12Electrical System
Splash Screen
When the ignition switch is turned from the OFF position
to the ON or START position, the InfoCenter splash
screen appears (Fig. 12). The splash screen provides
the following information to the operator:
Spray System Installed
Voltmeter
System Software Revision Level
Hour meter: For machines with gasoline engine, en-
gine hours are displayed. For machines with diesel
engine, key on hours are displayed.
After the splash screen has been displayed for ten sec-
onds, the operator information screen will be appear on
the InfoCenter. The only way to return to the splash
screen is by switching the key switch OFF then back ON.

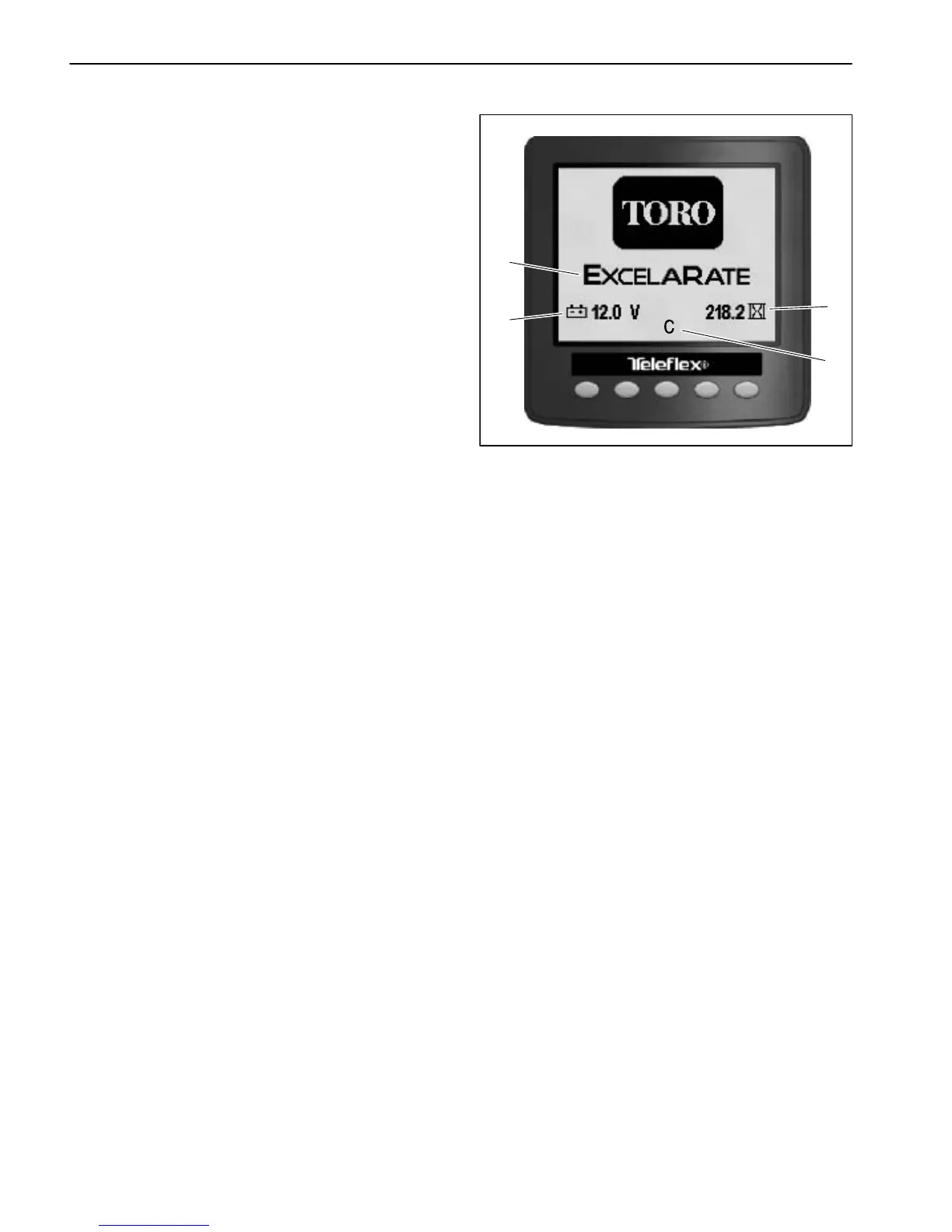

1. Spray system installed
2. Voltmeter
3. System software revisio
4. Engine hour meter
Figure 12
3
4
2
1
