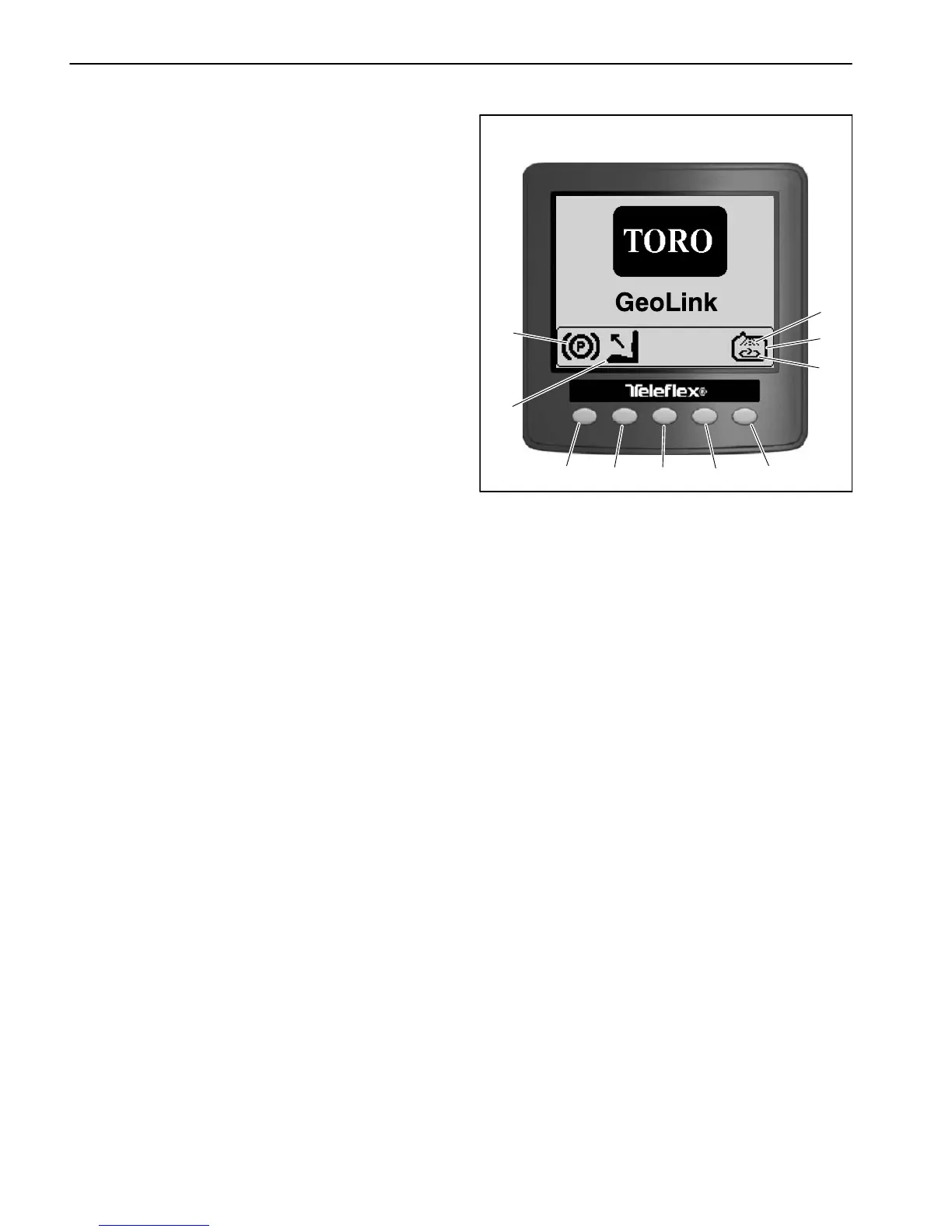

Multi Pro 5800Page 8 − 30GeoLink Spray System
Operators Information
The operator’s information screen is displayed about 10
seconds after the ignition switch has been turned from
the OFF position to the ON or START position (Fig. 31).
The operator’s information screen is the “default” screen
as it will be displayed during normal machine operation.
See the machine Operators Manual, Quick Start Guide
or Interactive Manual for additional information.
The operator’s information screen provides the follow-
ing information to the operator:
Brake: Icon appears whenever the brake is applied,
and stays on when the parking brake is engaged.
Operator Presence: Icon appears when the operator
is out of the operator seat.
Spray Pump: Icon (spray tank) appears when spray
pump is enabled.
Spray Tank Agitation: Icon (spray tank with mixing
pattern) appears when spray tank agitation is en-
abled.
Clean Tank Rinse Pump (optional kit): Icon (spray
tank with spray pattern) appears when clean tank
rinse pump is enabled.
Press and hold button 5 for 3 seconds to access the
main menu screen.
Press any button 1−4 to expose the menu bar. From the
menu bar, press button 2 to access the spray area
screen−total area or press button 3 to access the spray
area screen−sub area.
1. Button 1
2. Button 2
3. Button 3
4. Button 4
5. Button 5
6. Brake applied
7. Operator presence
8. Spray pump enabled
9. Agitation enabled
10. Tank Rinse enabled
Figure 31
1
2
3
4
5
10
8
9
6
7
