Toro Multi Pro 5800 Service Manual

Multi Pro 5800−DPage 3 − 6Kubota Diesel Engine
Service and Repairs
Fuel System

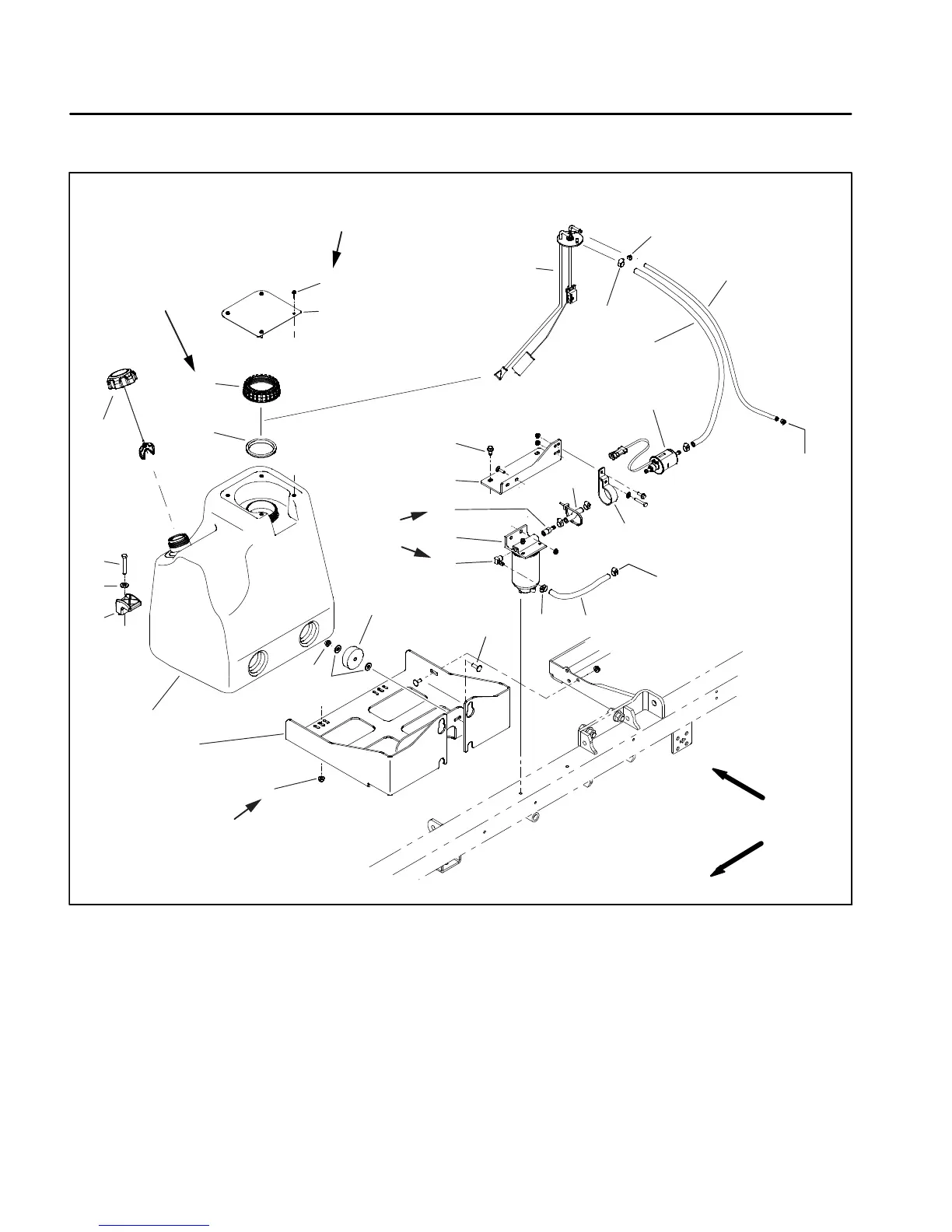

Figure 2
1. Fuel tank
2. Base
3. Flange nut (2)
4. Carriage bolt (2)
5. Rubber bumper (2)
6. Flat washer (6)
7. Flange nut (2)
8. Clamp (2)
9. Cap screw (2)
10. Fuel fill cap
11. Gasket
12. Fuel pickup/level sender
13. Fuel pickup/level sender cap
14. Tank cover
15. Flange head screw (4)
16. Hose clamp (6)
17. Hose clamp (2)
18. Fuel hose − return
19. Fuel hose − supply
20. Fuel pump
21. Fuel pump clamp
22. Fuel hose − supply
23. Fuel hose − supply
24. Elbow fitting
25. Fuel filter/separator
26. Straight fitting
27. Bracket
28. Flange head screw (2)
FRONT
RIGHT
11
12
13
14
15
16
17
18
19
20
1
TO
INJECTION
PUMP
FROM
FUEL
RAIL
2
3
4
5
6
6
7
8
9
10
21
22
23
16
24
25
26
27
28
25 in−lb (3 N−m)
13 to 65 in−lb
(1 to 7 N−m)
Apply
Thread
Sealant
10 to 12 in−lb
(1 N−m)
