Multi Pro 5800Page 8 − 60GeoLink Spray System
Spray Pump
1. Spray pump assembly
2. Flange head screw (4)
3. Flange nut (4)
4. Flange head screw (2)
5. Flange nut (2)
6. Cap screw
7. Flat washer (5)
8. Spring (2)
9. Lock nut
10. Pump bracket
11. Motor mount plate
12. Woodruff key (2)
13. Set screw (4)
14. Coupler
15. Flange head screw (2)
16. Pump shaft guard
17. Control manifold/motor assembly
18. Flange nut (2)
19. U−Bolt
20. Valve bracket
21. Flange nut (2)
22. Flange head screw (4)
23. Flat washer
24. Cap screw
25. Clamp
26. Agitation throttle valve assembly
27. Hose (agitation)
28. Hose (agitation)

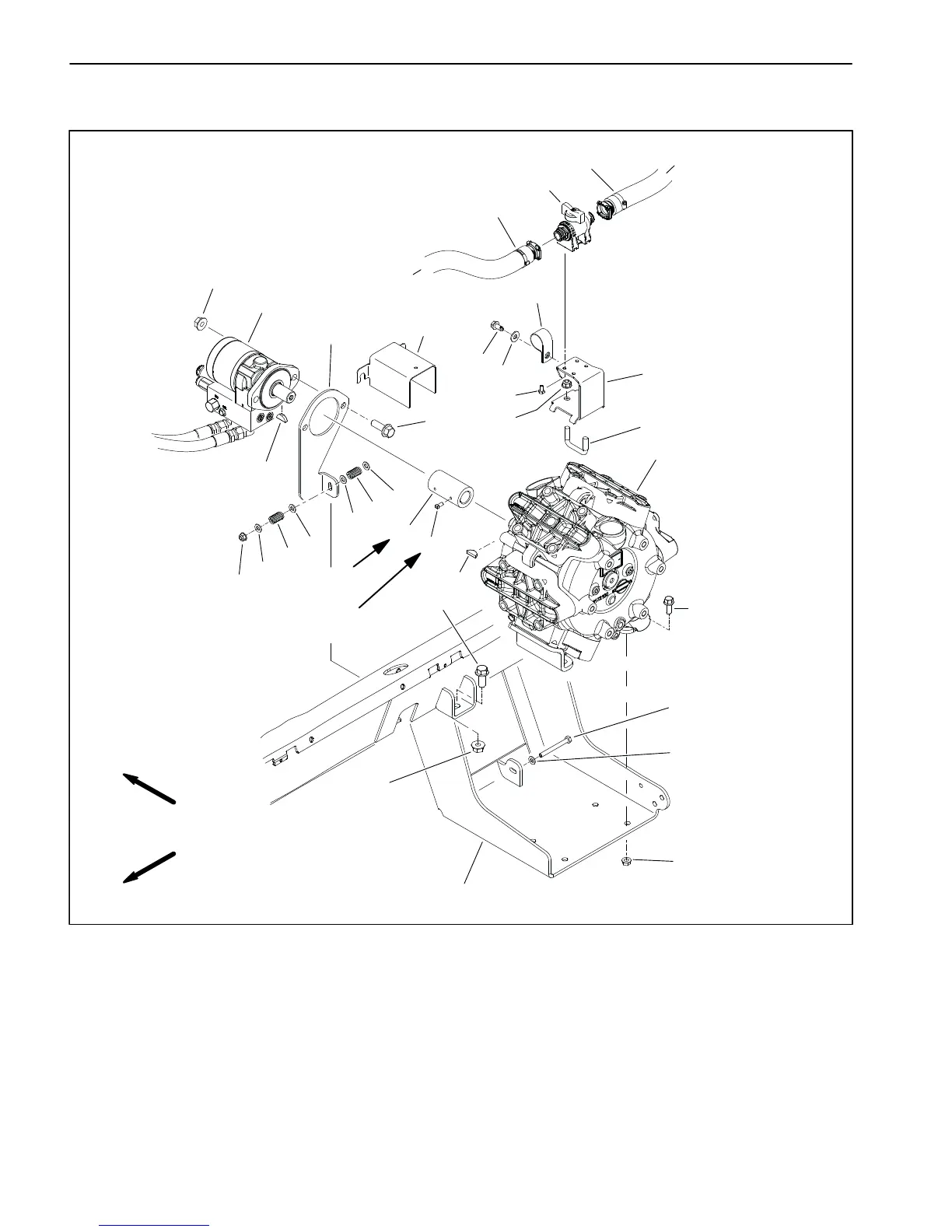

Figure 69
FRONT
RIGHT
11
12
13
14
12
15
16
17
18
19
1
2
3
4
5
6
7
7
7
7
7
8
8
9
10
20
21
22
23
24
25
26
27
28
Antiseize
Lubricant
Medium Strength
Thread Locker
From Agitation
Valve
To Agitation
Nozzles
