Multi Pro 5800 Page 8 − 65 GeoLink Spray System
1. Hex bolt (60 mm long) (20)
2. Hex bolt (65 mm long) (4)
3. Valve cover (6)
4. Hex bolt (6)
5. Diaphragm disc (6)
6. Diaphragm (6)
7. Diaphragm backing disc (6)
8. Connecting rod (6)
9. Pump valve (12)
10. O−ring (12)
11. Pump casting
12. Oil seal (2)
13. Hex bolt (4)
14. Plug (2)
15. Seal (2)
16. Pump foot
17. Ball bearing (2)
18. Grease fitting (2)
19. Crankshaft
20. Connecting rod spacer (2)
21. Ball bearing (2)
22. Bearing spacer
23. Hex bolt (3)
24. Pump casting (suction)
25. Grease fitting plate
26. Cap (2)
27. Hex nut (2)
28. Hex bolt (16 mm long)
29. Gasket (4)
30. Grease tube
31. Banjo bolt (2)
32. Grease line

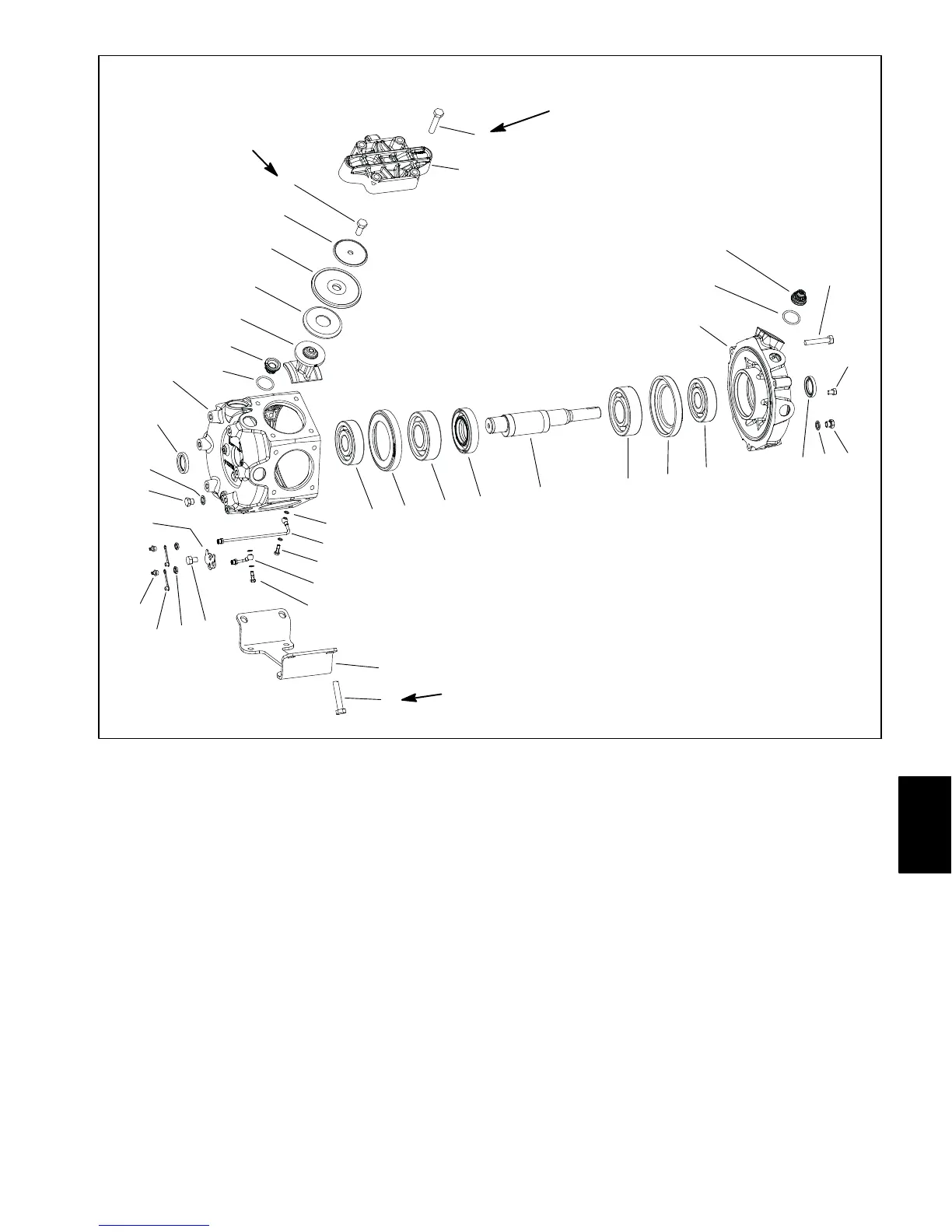

Figure 73
PUMP MODEL 364
60 to 72 ft−lb
(82 to 97 N−m)
60 to 72 ft−lb
(82 to 97 N−m)
60 to 72 ft−lb
(82 to 97 N−m)
11
12
12
13
14
14
15
15
16
17
17
18
19
20
20
1
2
3
4
5
6
7
8
9
9
10
10
21
21
22
23
24
25
26
27
28
29
30
31
31
32
GeoLink
Spray System
