Multi Pro 5800 Page 8 − 83 GeoLink Spray System
NOTE: If suction tube in tank develops an air leak, spray
performance will diminish when tank level reaches the
leak.
Removal (Fig. 86)
IMPORTANT: Make sure to remove and neutralize
chemicals from tank and spray components before
disassembly. Wear protective clothing, chemical re-
sistant gloves and eye protection during repair.
1. Park machine on a level surface, stop engine, en-
gage parking brake and remove key from the ignition
switch.
2. Disconnect elbow fitting above suction strainer
(Fig. 87) and remove strainer vane and element.
3. Raise tank lid and remove strainer basket to gain ac-
cess to suction line inside spray tank.
4. Remove suction line assembly and disassemble
tube as necessary. Discard all removed O−rings and
gaskets.
Assembly (Fig. 86)
NOTE: Replace, do not reuse gaskets and O−rings.
Coat O−rings and gaskets with vegetable oil or silicone
grease before installation to reduce damage during as-
sembly.
1. Replace all removed O−rings and gaskets. As-
semble and install suction line assembly.
2. Install suction strainer element and vane, then con-
nect suction line elbow above tank (Fig. 87).
3. Check spray system for leaks. Repair all leaks be-
fore returning the sprayer to service.

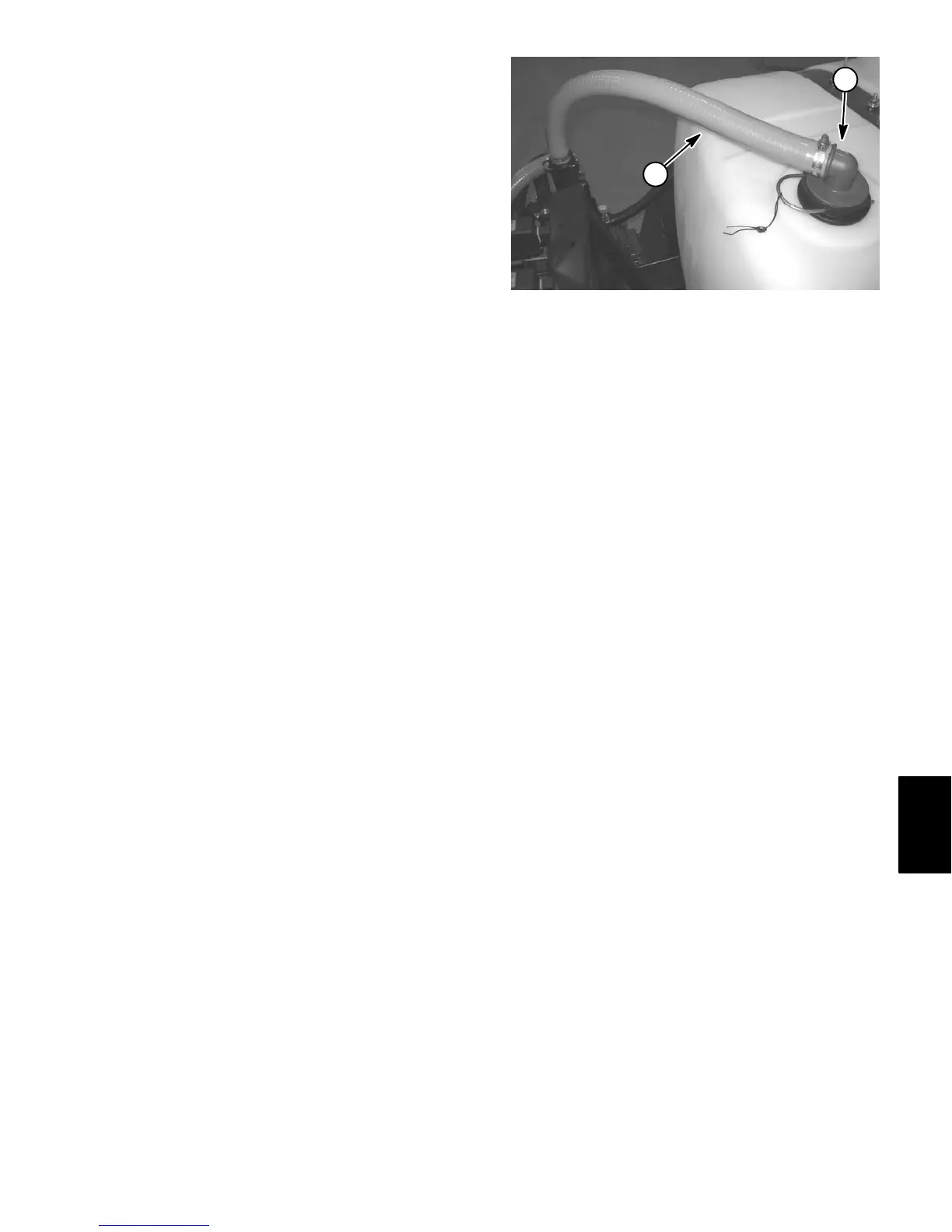

1. Suction hose 2. Strainer location
