Multi Pro 5800 ChassisPage 9 − 3
Service and Repairs

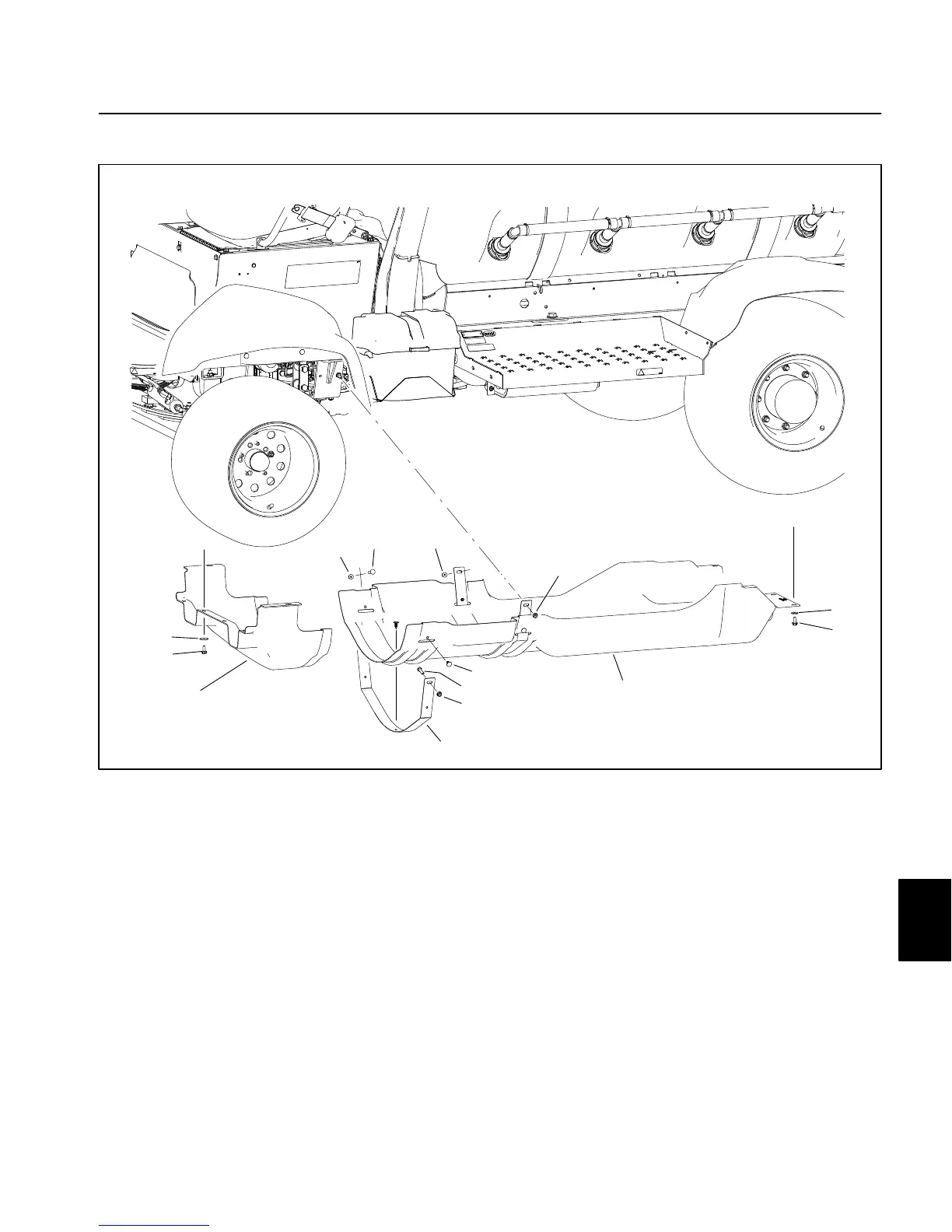

Undercarriage Shrouds
1. Front undercarriage shroud
2. Rear undercarriage shroud
3. Strap (machine serial number
below 4000000000) (2)
4. Flange nut (4)
5. Cap screw
6. Panel fastener (6)
7. Flat washer (7)
8. Flange head screw (13)
9. Flat washer (6)
10. Carriage screw
Figure 1
1
2
3
4
4
4
4
5
6
8
9
10
7
8
Remove and install the undercarriage shrouds as need-
ed to access a variety of machine components.
NOTE: Remove the rear shroud from the machine with
the straps attached to the shroud.
Park machine on a level surface, stop engine, engage
parking brake and remove key from the ignition switch
before removing or installing undercarriage shrouds.
Chassis
