Multi Pro 5800 Hydraulic SystemPage 5 − 21
Hydraulic Test Fitting Kit
This kit includes a variety of O−ring Face Seal fittings to
enable connection of test gauges to the hydraulic sys-
tem.
The kit includes: tee’s, unions, reducers, plugs, caps
and test fittings.
Toro Part Number: TOR4079

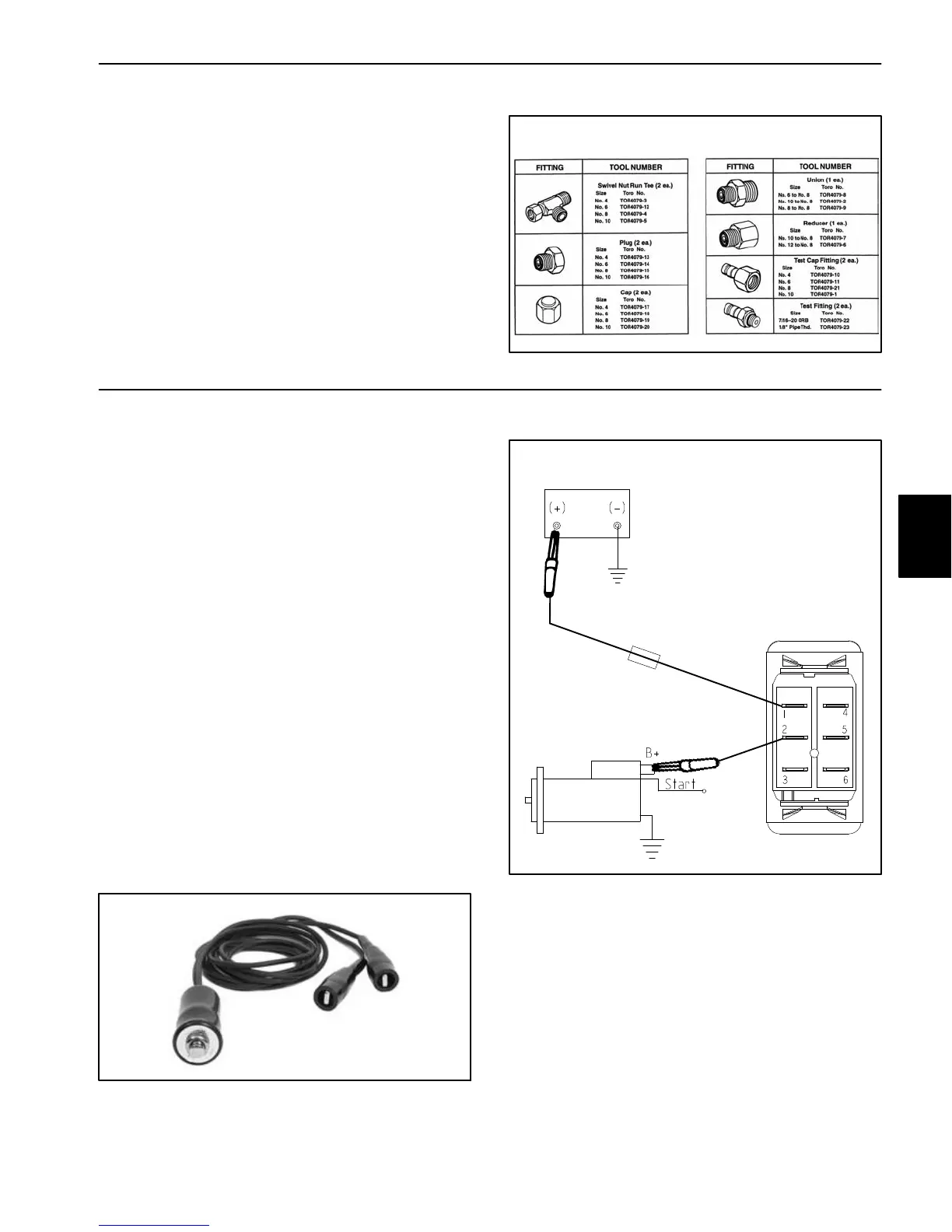

Figure 19
TORO TEST FITTING KIT (NO. TOR4079)
Remote Starter Switch
After flushing the hydraulic system or replacing a hy-
draulic component (e.g. gear pump, piston pump, wheel
motor), it is necessary to prime the hydraulic pumps. A
remote starter switch (Fig. 20) should be used for this
purpose on machines with an engine control module
(ECM) like the Multi Pro 5800−G. Obtain a remote
starter switch locally.
IMPORTANT: When using a remote starter switch, it
is highly recommended to include a 20 amp in−line
fuse between the battery and switch connector for
circuit protection.
A remote stater switch can also be constructed using
Toro switch #106−2027, a length of 14 gauge wire, a 20
amp in−line fuse, two (2) alligator clips and necessary
connectors. Connecting the wire to switch terminals 1
and 2 will allow the momentary switch contacts to be
used for the remote starter switch (Fig. 21).
NOTE: For information on using the remote starter
switch to prime the hydraulic pumps, see Priming Hy-
draulic Pumps in the Service and Repairs section of this
chapter.
Figure 20
Figure 21
TORO SWITCH
(#106−2027)
BATTERY
MACHINE
SOLENOID
STARTER
STARTER
MACHINE
20 AMP
FUSE
Hydraulic
System
To Next Page
