Zebra ZM400 Series

331
Corrective Maintenance
Cutter Option
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
5. See Figure 193. Place the catch tray in the slot or slots of the front cover of cutter
assembly. Place the cutter shield over the cutter assembly and secure in place using the
thumb screw provided.

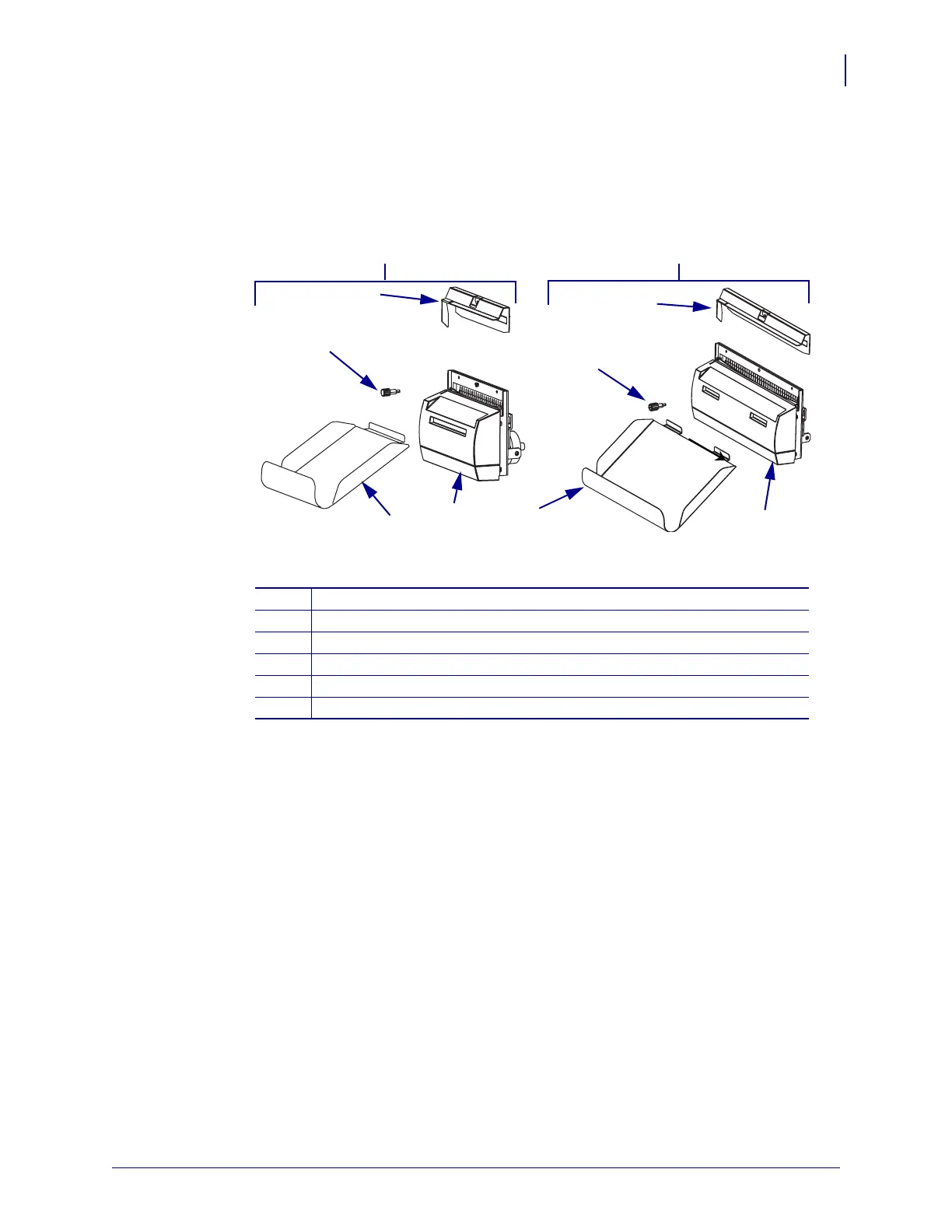

Figure 193 • Cutter Shield and Catch Tray
A
ZM400
B
ZM600
1
Cutter shield
2
Thumbscrew
3
Cutter assembly
4
Cutter catch tray
1
1
2
2
4
4
3
3
A
B
