Agilent Technologies 7500 ICP-MS User Manual

9-24
Agilent 7500 ICP-MS ChemStation Operator’s Manual
Viewing Spectra
The Calculate Dilution Factor dialog box will appear.

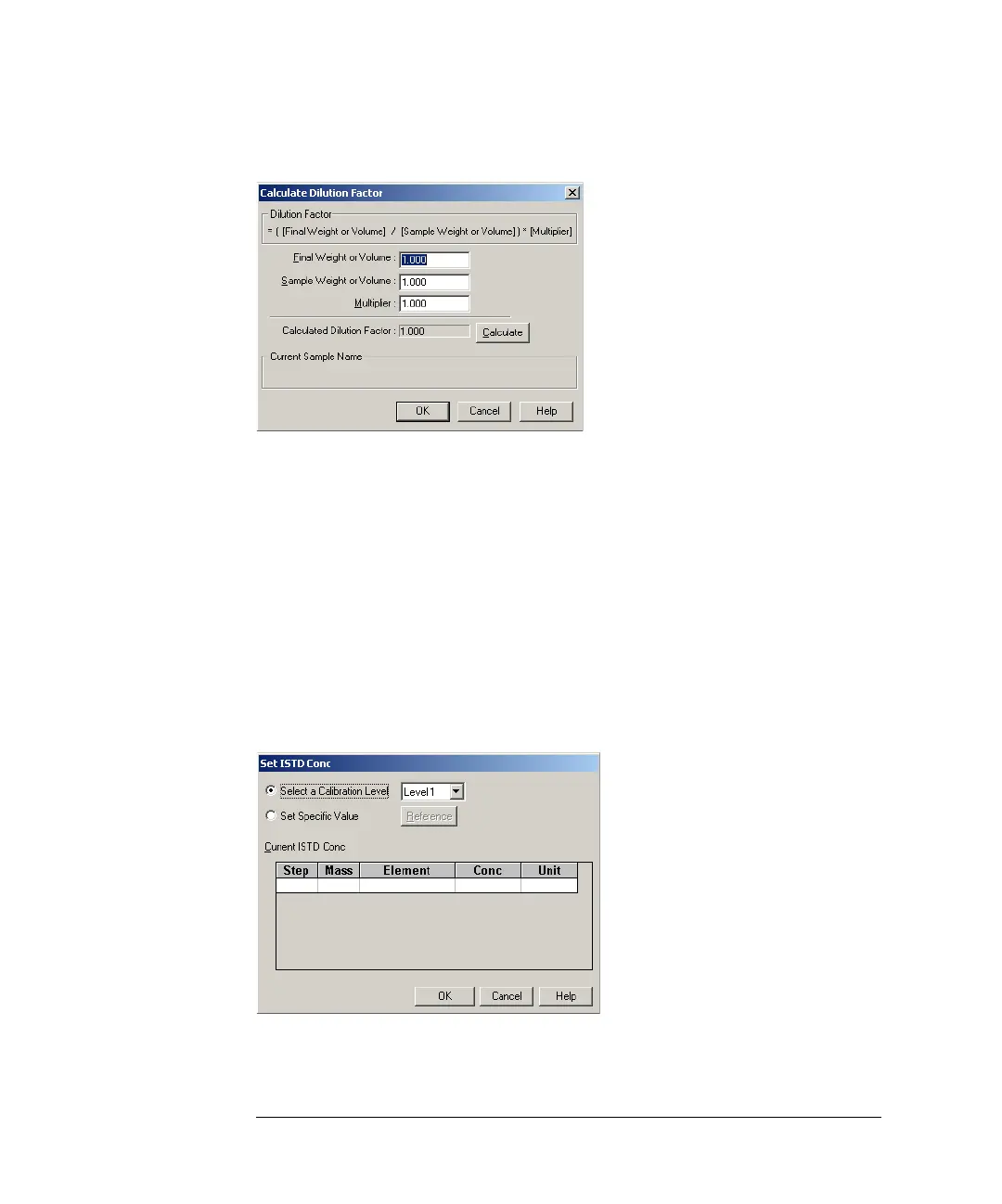

Calculate Dilution Factor Dialog Box
2) Enter a numerical value in each text box.
3) Click Calculate.
The dilution factor will be automatically calculated.
4) Click OK.
The Calculate Dilution Factor dialog box closes and the dilution factor will be set
in the Edit Header dialog box.
4 Set the internal standard concentration level if necessary.
1) Click Change.
The Set ISTD Conc dialog box appears.
Set ISTD Conc Dialog Box
2) To select a concentration from the calibration levels, choose the Select a
Calibration Level radio button and select a level from the drop-down list.

Agilent Technologies 7500 ICP-MS Specifications

General

Brand	Agilent Technologies
Model	7500 ICP-MS
Category	Laboratory Equipment
Language	English
