3-17

Agilent 7500 ICP-MS ChemStation Operator’s Manual

Startup, Shutdown and Status

NOTE Meter boxes are displayed until you close them individually or close the Instrument

Control window. Meter boxes that are open when the Instrument Control window is

closed will redisplay when this window is reopened

4 To monitor other components, deselect the current ones by clicking the

appropriate boxes. Then click the boxes next to the additional components you

want to monitor.

Meter boxes for the newly selected components appear on the right side of the

screen.

5 Repeat Step 4 until all necessary components have been checked.

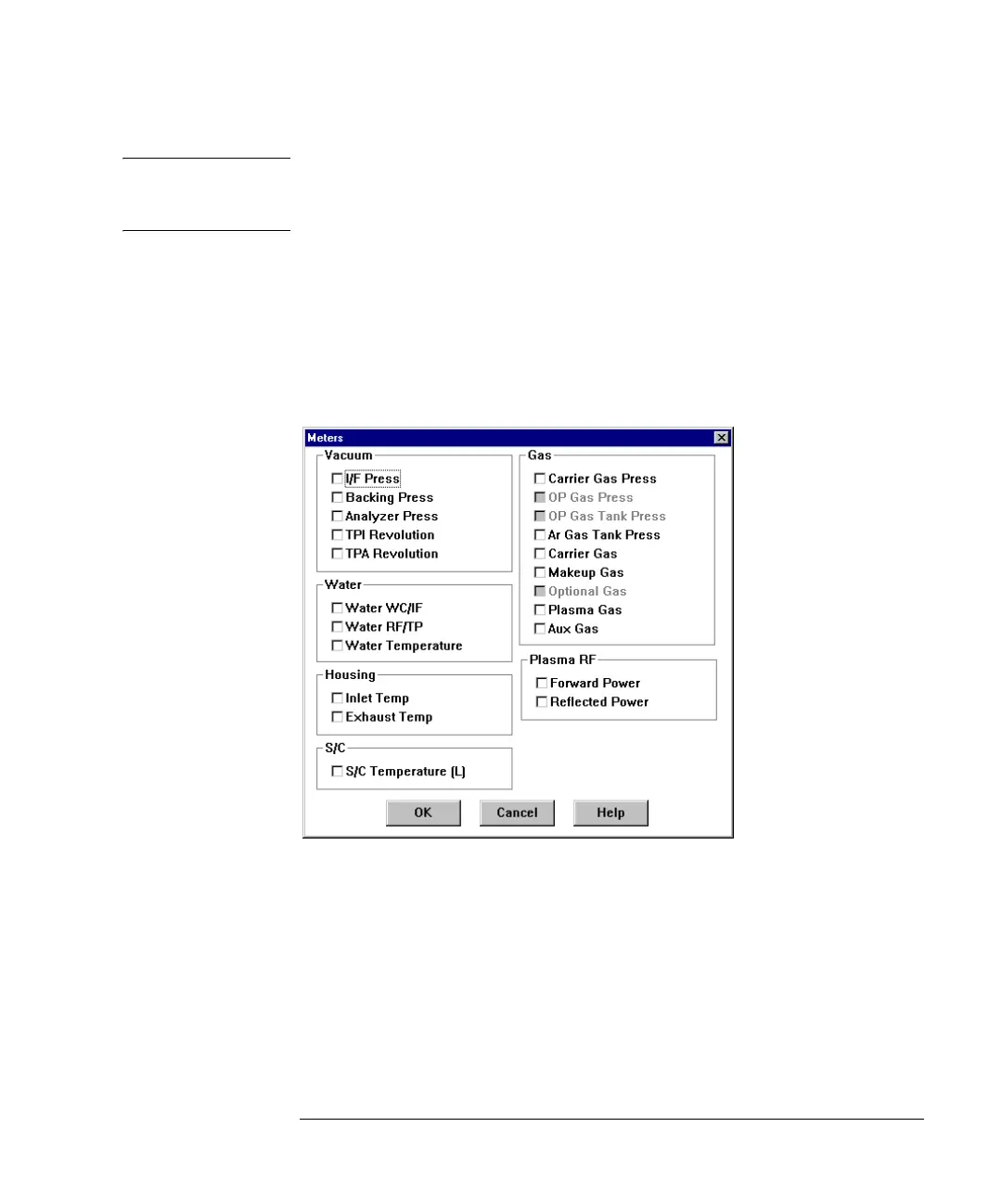

Meters Panel
