1.3 Getting Started
1.3.1 Connecting to the SBx3112 - Initial Interface
In the SwitchBlade x3112 Installation Guide, one of the last steps is to “Start a Local Management Session.” The
user connects a management cable to the Console RS-232Port on the AT-SBx31CFC Card and then connects
the other end of the cable to an RS-232 port on a terminal or a personal computer with a terminal emulation
program. Once connected and configured, the user can log in to the SBx3112.
Refer to the following figure, which shows the local terminal connected to the CONSOLE port.

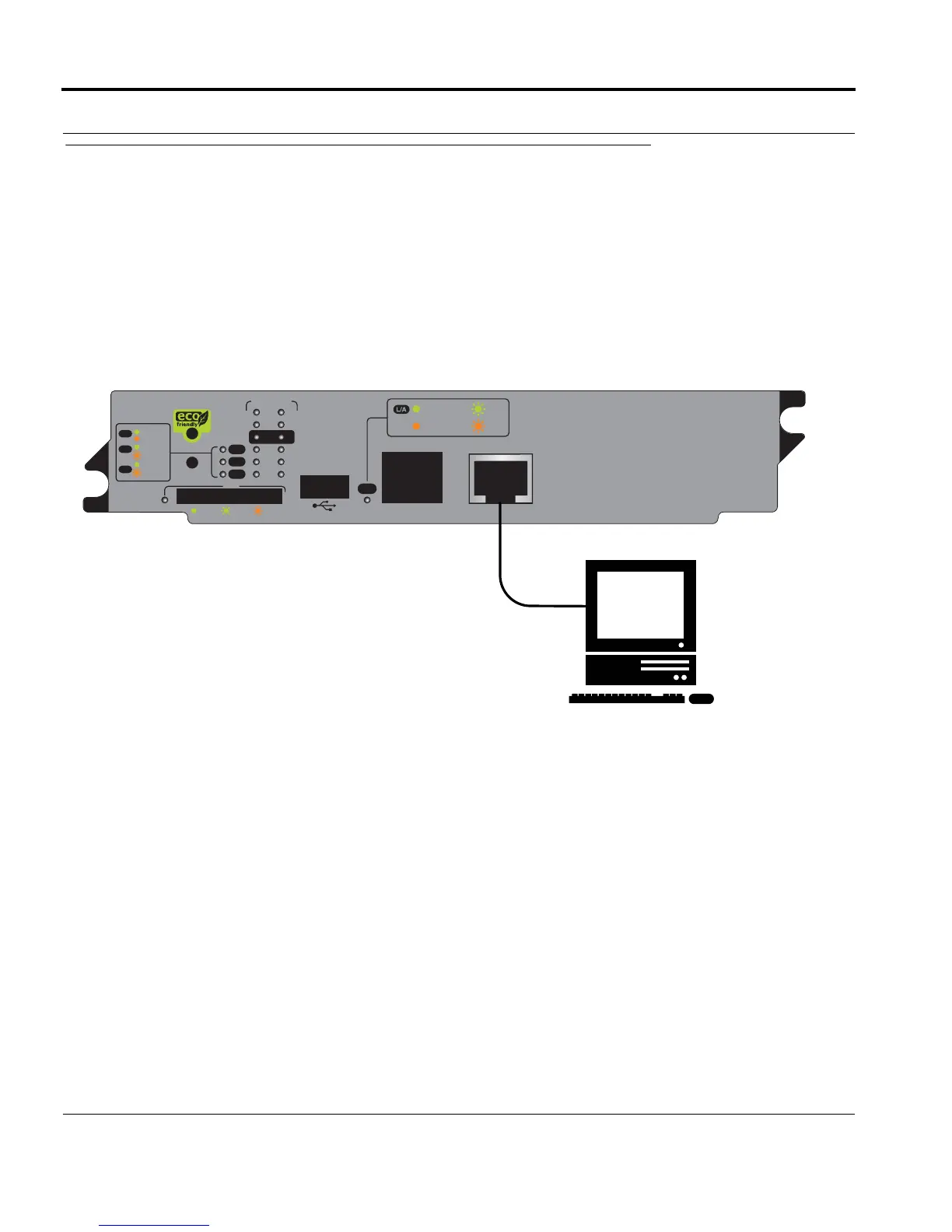

FIGURE 1-2 Initial Communication Interface for the SBx3112
1.3.2 How to Log In
The default user id / password for the systems are as follows:
• officer/officer or manager/friend
If the default user “officer” or “manager” has its password set to the default value (officer or friend), the follow-
ing login message is displayed:
*************************************************************************
* Warning: The password for the user 'officer' is the system default.
* The password should be changed to avoid a security risk.
* Warning: The password for the user 'manager' is the system default.
* The password should be changed to avoid a security risk.
*************************************************************************
RS-232 Cable
CFC200-0001
SBx31CFC
RESET
SD
CONSOLE
10/100/1000Base-T
1000 LINK ACT
10/100 LINK ACT
M/S
PSU
FAN
SBx S TATUS
1
3
5
7
9
11
0
2
4
6
8
10
L/A
CFC
RS-232
REA DY B USY FAULT
M/S
PSU
FAN
MASTER
SL AVE
NORMAL
FAULT
NORMAL
FAULT
