DHCP Relay Agent Introduction
7-3
Software Reference for SwitchBlade x3100 Series Switches (Network Management)

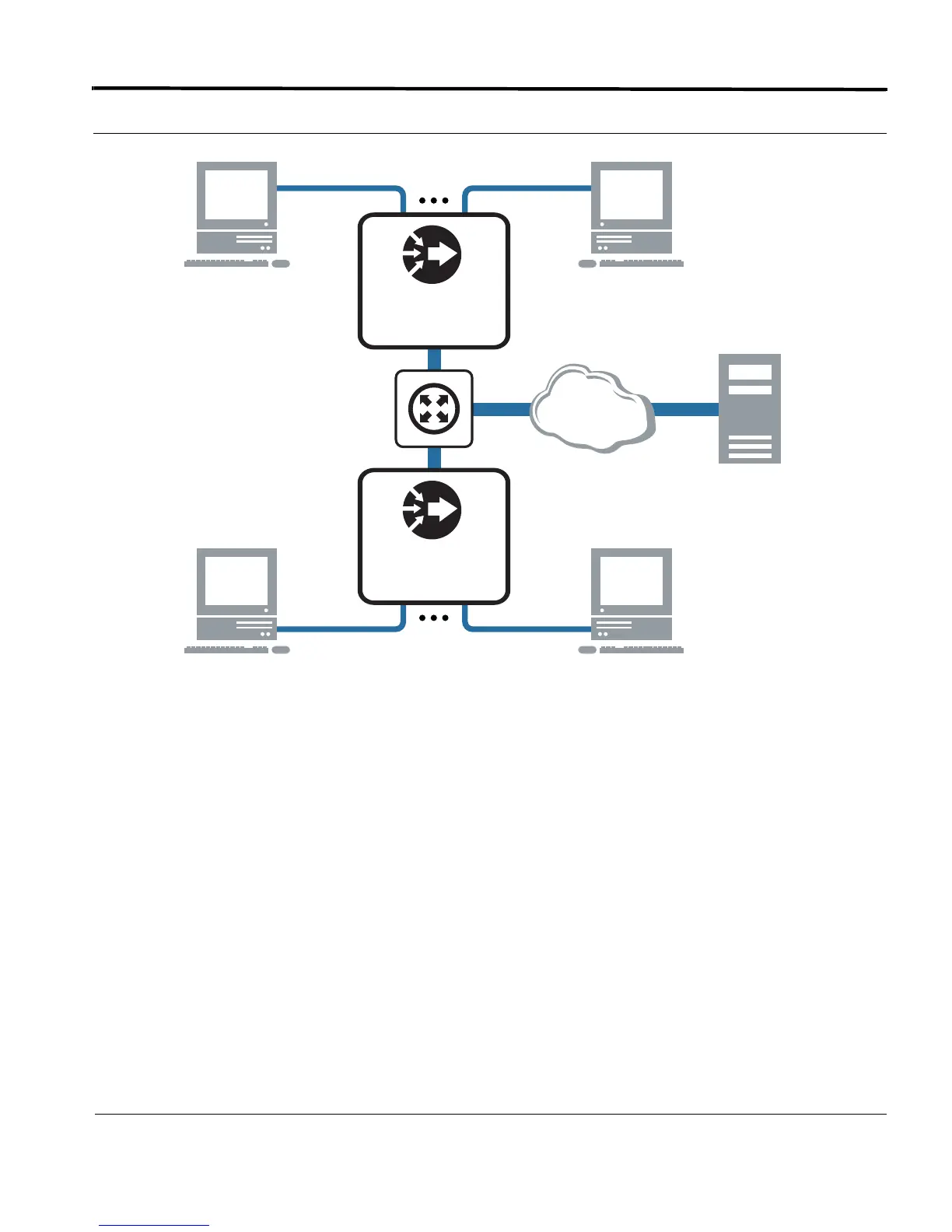

FIGURE 7-1 Network with DHCP server - Physical View
7.2.2 DHCP Relay Agent
With the DHCP Relay Agent function, the Allied Telesis system emulates a DHCP server, in essence acting on
behalf of the DHCP server and providing the IP address information to the client.
Figure 7-2 shows how the DHCP packets are sent and received between the server and client with the DHCP
Relay Agent. Refer to this figure while reading this subsection.
DHCP
Client n Client n
Client n Client n
Subnet 1
Subnet 2
DHCP Server(s)
SBx3100
SBx3100
SBx3112
SBx3112
