Configuring the CryptoLITE embedded ECM Generator
CryptoLITE is an embedded ECM Generator running on the scrambler card. To establish a channel connection to
CryptoLITE, use the following mandatory parameters:
• IP: 127.0.0.1
• Port: 5555
• CAS ID: 19178
The ECMG will accept one channel only; up to 250 ECM streams are supported. When adding an ECM, the
Access Criteria field may be left empty. However, it is possible to enter a fixed 8-byte (16 HEX characters) user
specified scrambling key in the Access Criteria field.
6.4.1.4 Configuring an ECM Stream

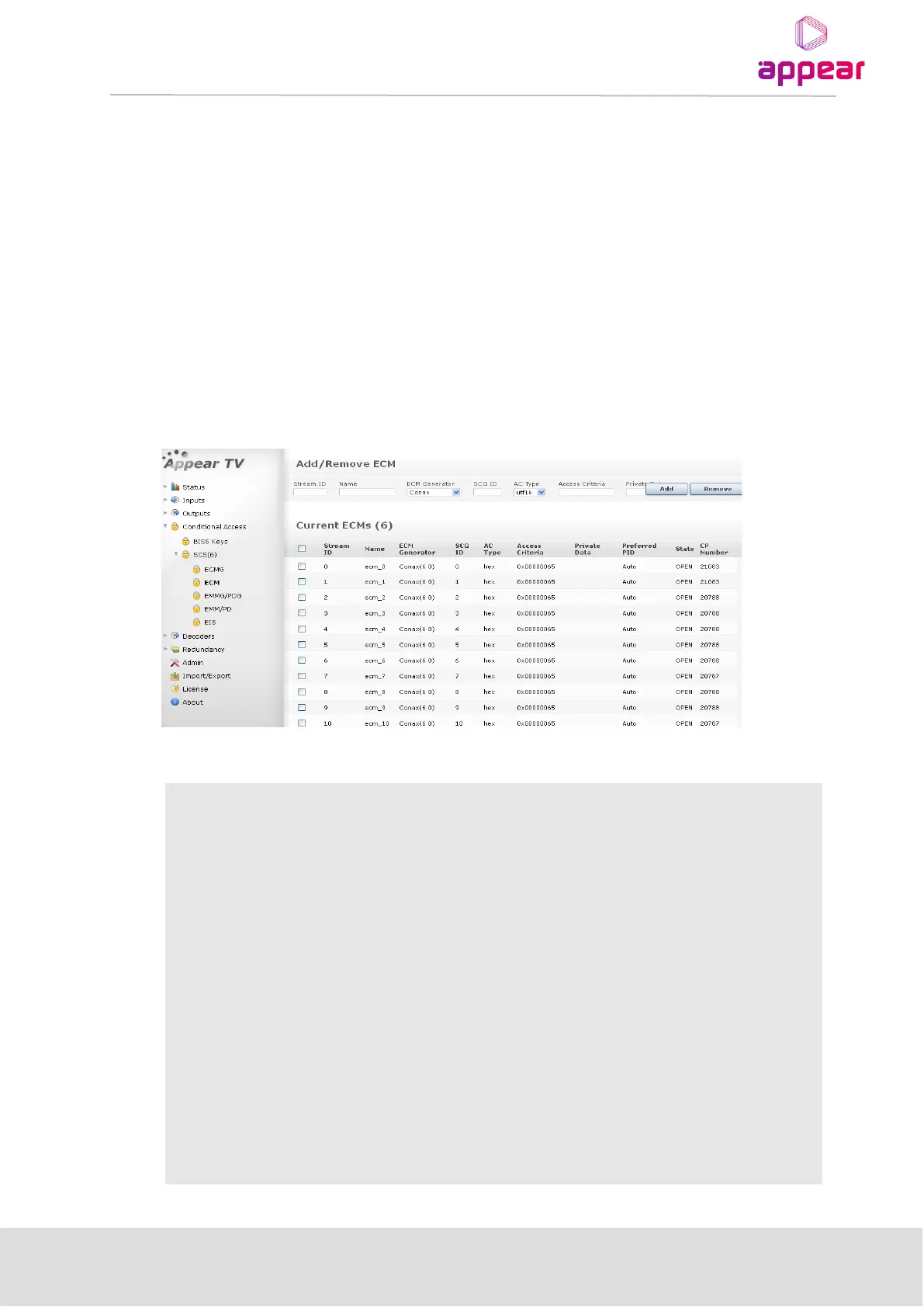

An ECM is defined from the ECM node in the Navigation Tree. The ECM entry links a CW and Access criteria to
an ECM Generator.
The following information is displayed:
Stream ID
The SimulCrypt Stream ID used towards the CA system. Its value is also set to the
SimulCrypt EcmId.
Name
For reference in the GUI only
ECM Generator
Links the ECM to the predefined ECMG
SCG ID
CW selection; all ECMs with the same SCG id will share the same CW.
AC Type
Access Criteria type – refers to the data type used over the SimulCrypt protocol when
the access criteria are transferred. Available types are: UTF16, INT32, or HEX.
Access Criteria
Specified in decimal or HEX (use 0x prefix)
Private Data
Private descriptor data added to the ca_descriptor in the PMT; enter in HEX using the
0x prefix.
PID
Preferred ECM PID value transmitted at the output module; the maximum value is
8191.
