APPEAR AS Confidential 14/352

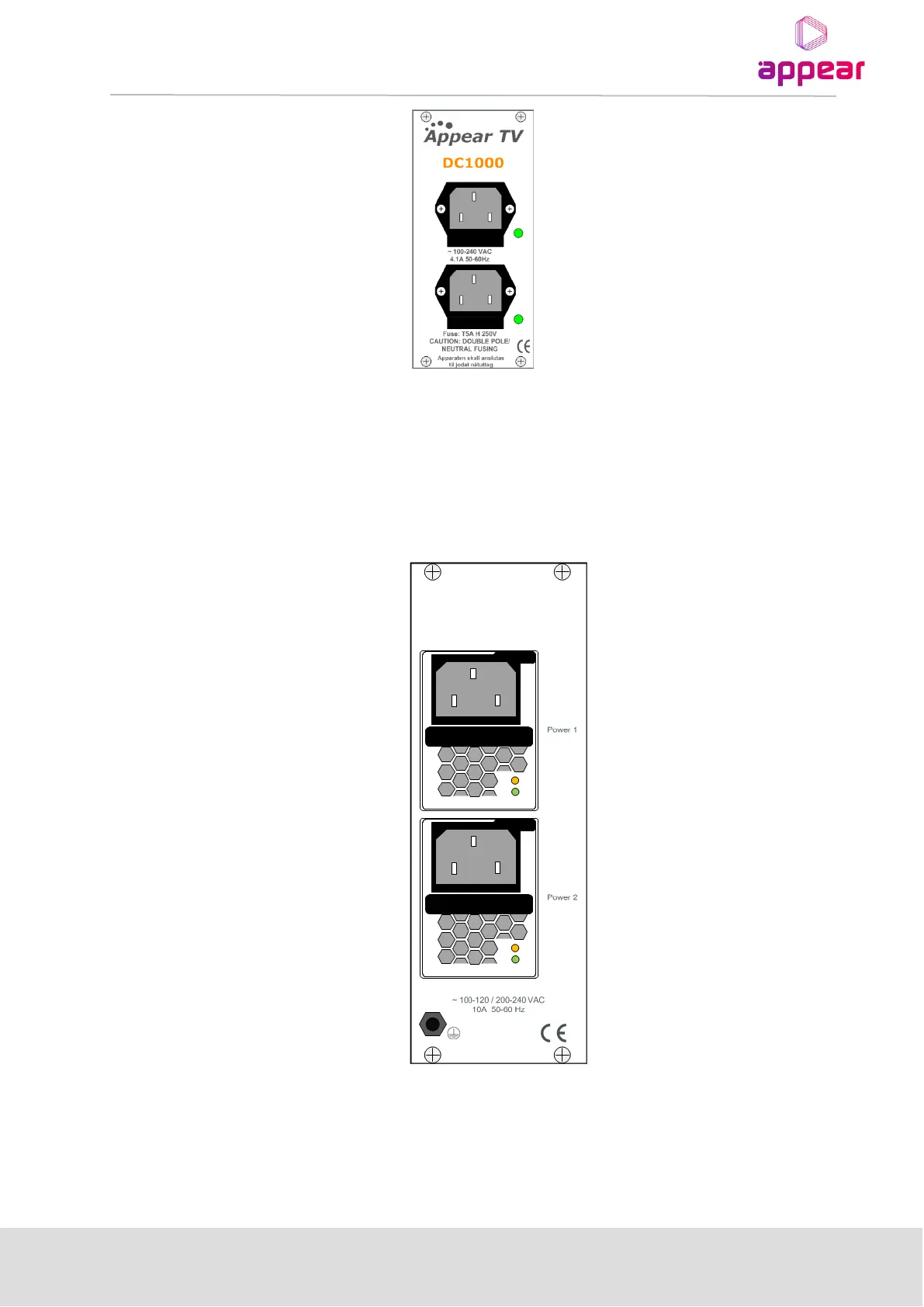

Figure 2.6 - Power Input for 4RU chassis with 300 and 400 Watt AC power
2.1.4.3 4RU chassis with 800W AC Power
The chassis has two power supplies for redundancy with independent power inlets The power supplies and
power inlets are located at the back of the chassis.
