APPEAR AS Confidential 15/352
Figure 2.7- Power input for 4RU chassis with 800WAC power supplies
2.1.4.4 4RU chassis with 400W DC (-48Volt) Power supply
The chassis can be hold two power supplier for redundancy and has independent power inlets for the two
supplies.

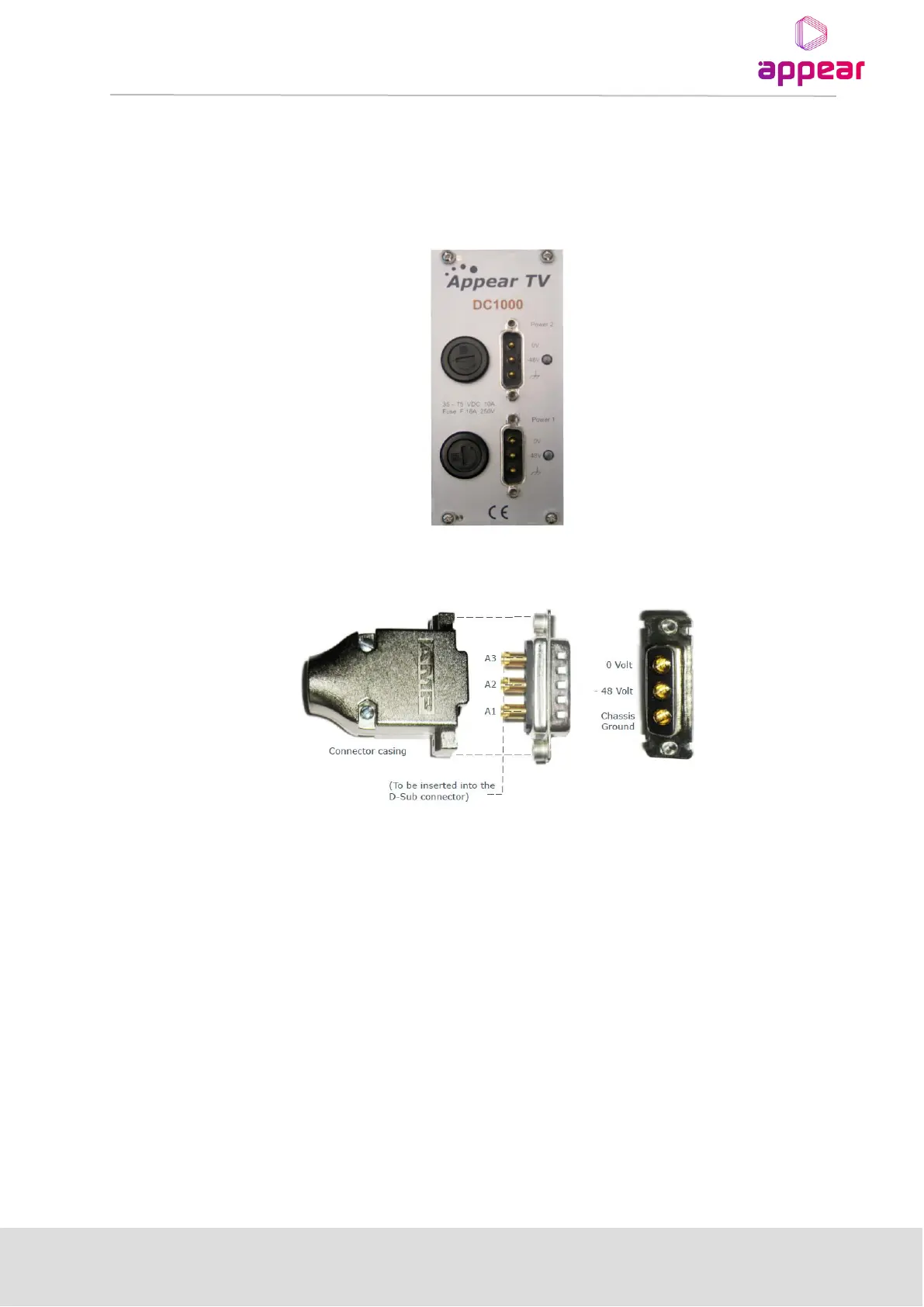

Figure 2.8– Front plate of dual 48V Power Supply in a DC1000
Figure 2.9 - Layout of 48V DC Power Supply Connector
2.1.4.5 4RU chassis with 800W DC Power
The chassis has two independent -48V DC power supplies for redundancy. The power supplies and power inlets
screw terminals are located at the back of the chassis.
