Appear TV DC100X - Page 16

APPEAR AS Confidential 16/352
OK
FAIL
-
+
OK
FAIL
-
+
DISCONNECT BOTH CONNECTORS
BEFORE DISMANTLING CHASSIS
-48 VDC Imax 20 A
Power 2
-48 V
0 V
Power 1
-48 V
0 V

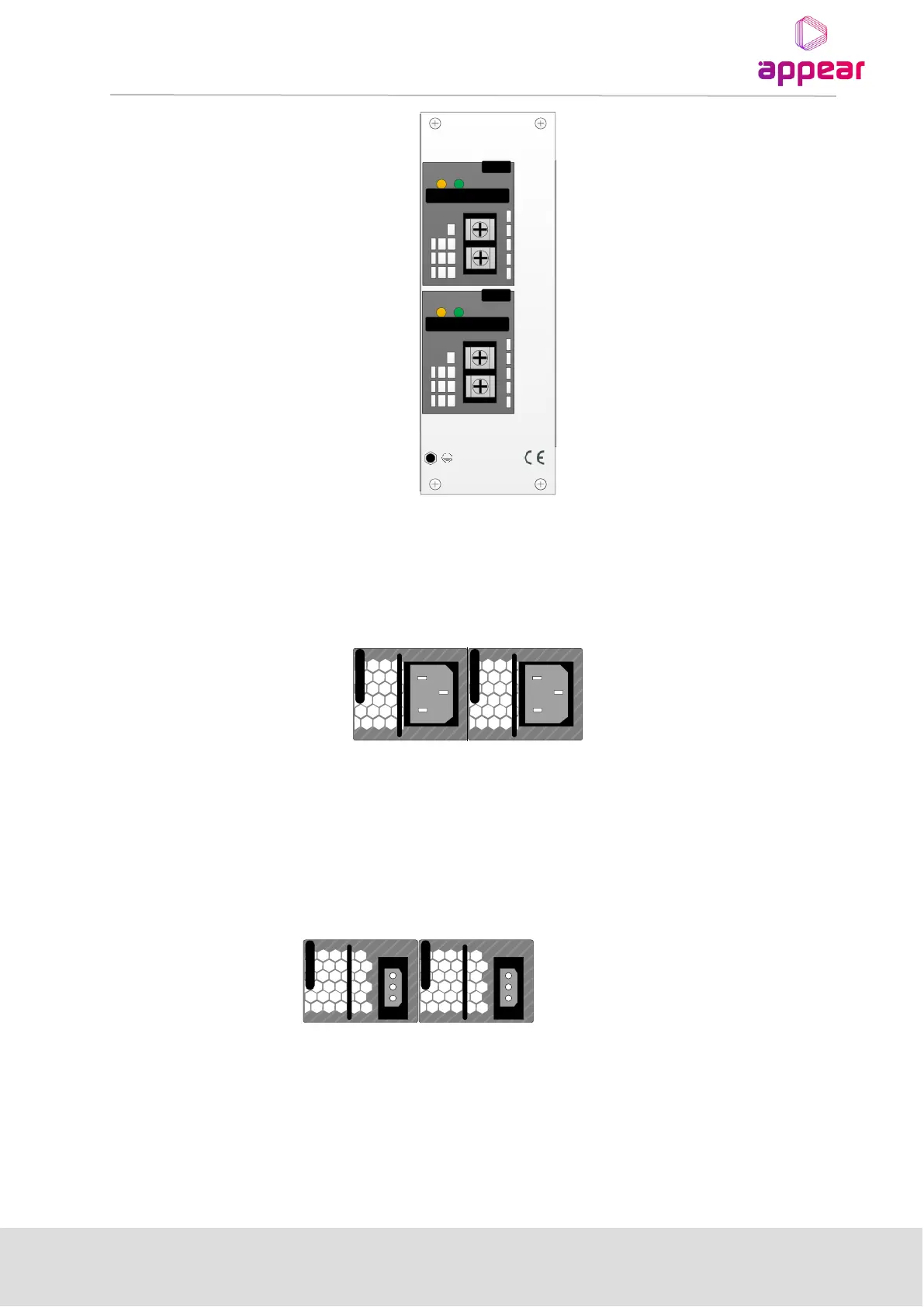

Figure 2.10- Power input for 4RU chassis with 800W DC power supplies
2.1.4.6 1RU chassis Product model XC5100 with AC power
The power input connectors are located at the back of the unit.
Figure 2.11 Power Input Connector for 1RU Chassis, product models XC5100 with AC power
2.1.4.7 1RU chassis Product model XC5100 with DC power
The power input connectors are located at the back of the unit.
0 Volt
-48 volt
Chassis Ground
Figure 2.12 Power Input Connector for 1RU Chassis, product models XC5100 with DC power
