APPEAR AS Confidential 91/352
Actual Symbol Rate
Symbol rate reported by the demodulator
Actual Modulation
Modulation reported by the demodulator
Actual Code Rate
Coding reported by demodulator
Lock Status
Lock status of the tuner
Pilots
Indicates if pilot tones are ON or OFF
Input Streams
Number of Input Streams if Multistream signal. It will show value ‘1’ if it is not
a Multistream signal.
Stream ID
If Multistream signal, it will indicate the Stream ID
Coding & Modulation
Indicates the Coding & Modulation of the input source
Spectrum
Normal or Inversed
Link Margin
Calculated link margin based on input power, CNR and modulation.
Roll Off
Roll Off range by demodulator

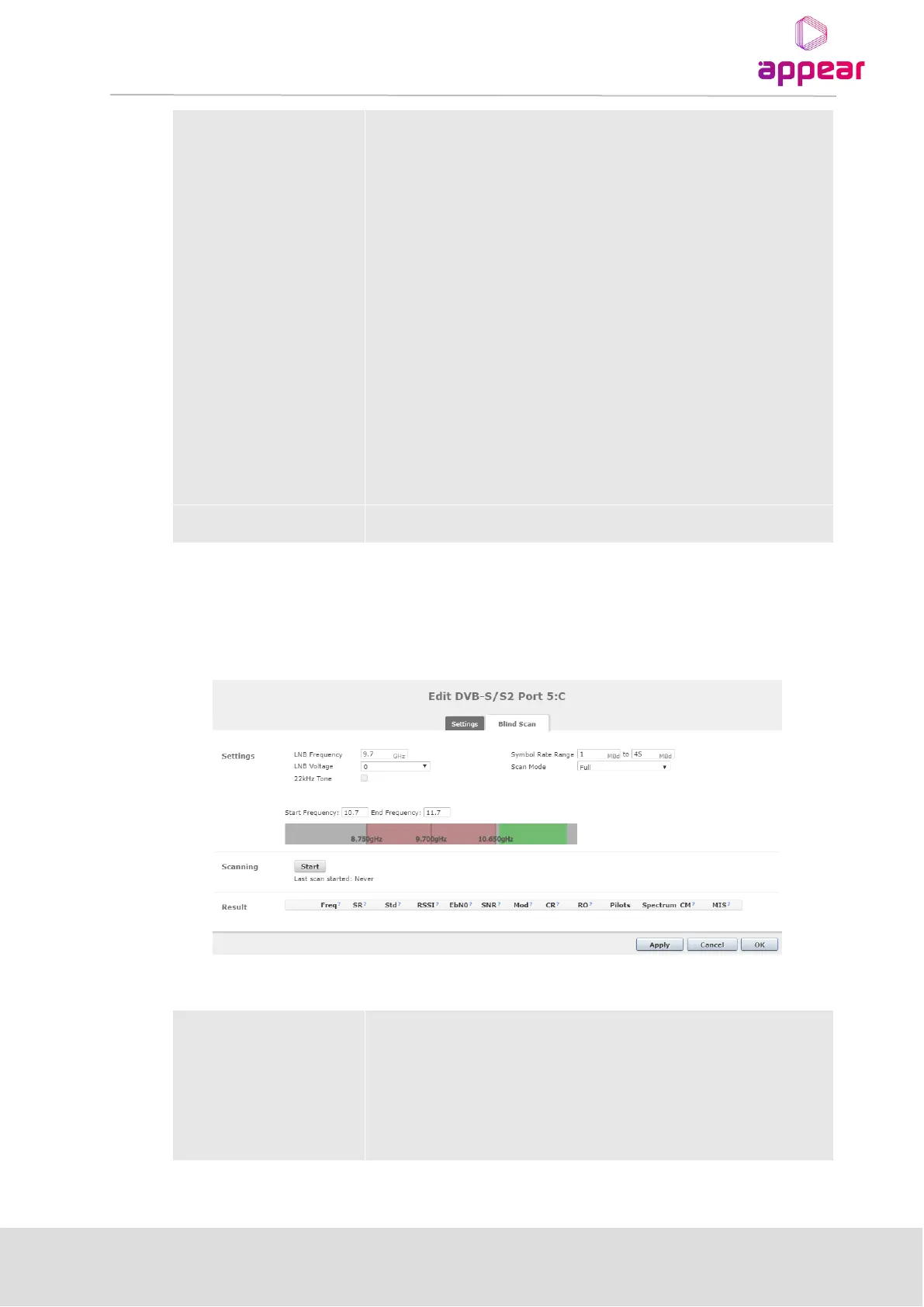

5.4.2.1 Blind Scan
The Edit Port dialog also offers a Blind Scan tab (SR-200). This feature is used to scan the input signal for DVB-
S/S2/S2x carriers.
The following settings are available to configure the scan procedure:
LNB Frequency
LNB Frequency required for the scan
LNB Voltage
Set if required for the LNB
22kHz Tone
Set if required for the LNB
Frequency range
Sets the start and stop frequency.
