Installing
Installation is carried out in the reverse order; note the following:
Note
Connect new cigarette lighter - U1- with wiring harness of ciga‐
rette lighter illumination bulb - L28- .
– Disconnect electrical wiring and connect new cigarette lighter
- U1- with electrical wiring for cigarette lighter illumination bulb
- L28- ⇒ Electrical system, General information; Rep. gr. 97 ;
Repairing wiring harnesses and connectors; Repairing wiring
harnesses .
Caution
Risk of injury.
♦ After detaching puller - T40148- check that retaining tabs
for lighter are not bent.
♦ If retaining tabs are bent they must be bent back to prevent
lighter from ejecting.

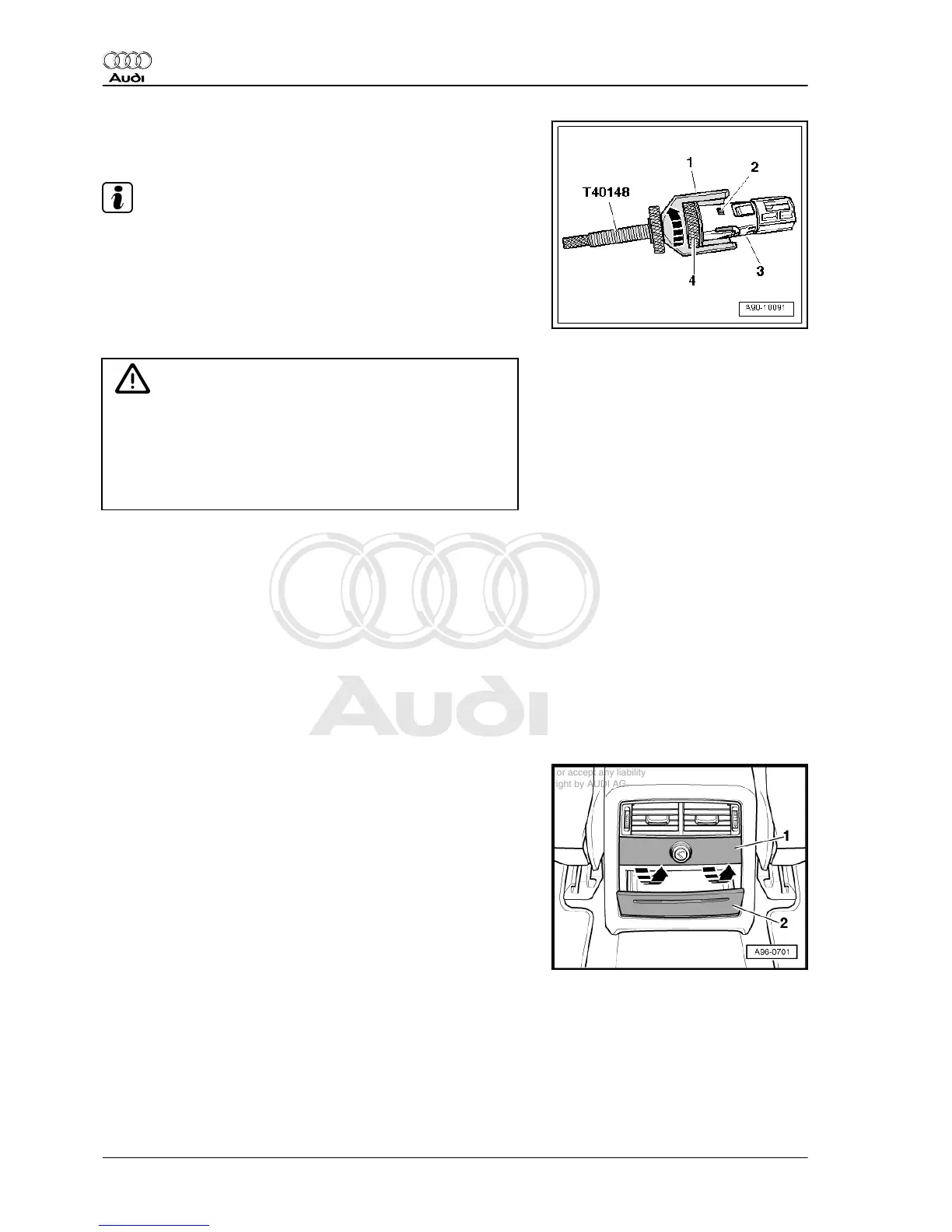

– Detach support -1- from puller - T40148- .
– Push piston downwards and hold in this position.
– Turn knurled wheel -4- on puller - T40148- anti-clockwise
-arrow-; this will open release tabs -2- on cigarette lighter - U1-
-item 3- and puller - T40148- can be removed.
– Press illuminated ring for cigarette lighter into mounting until
retaining clip engages.
• Illuminated ring can only be fitted in one position into mounting.
2.2 Removing and installing rear cigarette
lighter - U9-
Removing
– Open ashtray (rear) -2-.
– Detach trim -1- from mounting frame -arrows-.
– Close ashtray.
Audi A8 2003 ➤
Electrical system - Edition 08.2014
98 Rep. gr.90 - Gauges, instruments
