4.10 Removing and installing main fuse hold‐
er, A-pillar (right-side)
Removing
– With ignition switched off, disconnect earth cable at battery
⇒ page 2 .
– Remove lower A-pillar trim ⇒ Rep. gr. 70 .
– Fold back floor covering.
– Unscrew protective cover above main fuse holder.

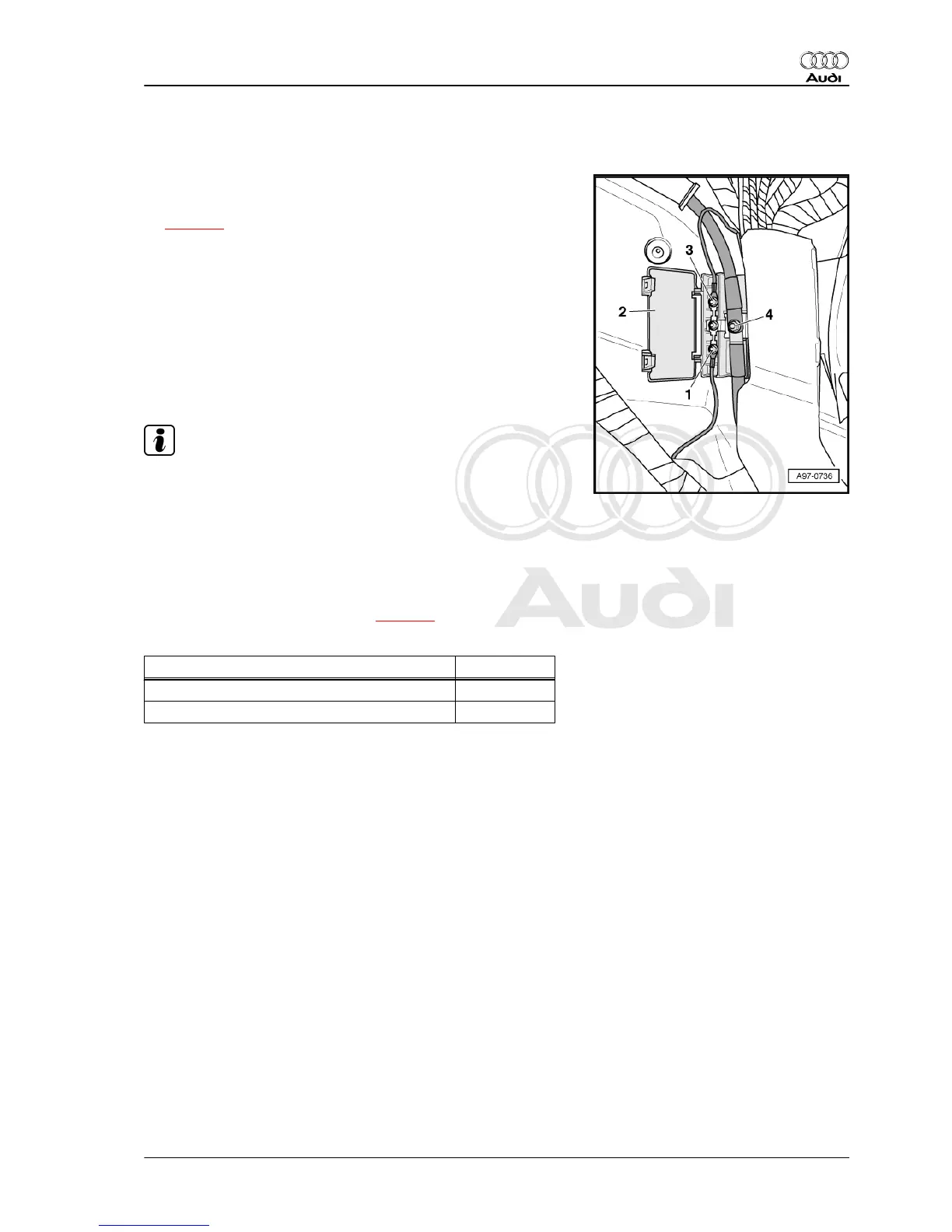

– Fold cap -2- to side.
– Unscrew nuts -1- and -3- for fuse.
– Unscrew nut -4- for battery cable.
– If necessary, detach fuse holder from bulkhead.
Note
Exact assignment for main fuse holder (right A-pillar) can be
found in applicable current flow diagram ⇒ Current flow diagrams,
Electrical fault finding and Fitting locations.
Installing
Installation is carried out in the reverse order; note the following:
– Install lower A-pillar trim ⇒ Rep. gr. 70 .
– Connect battery. Steps required ⇒ page 3 .
Tightening torques
Component Nm
Electrical wire to fuse holder (M6) 7.5
Battery cable to fuse holder 20
