Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
with respect to the correctness of information in this document. Copyright by AUDI AG.

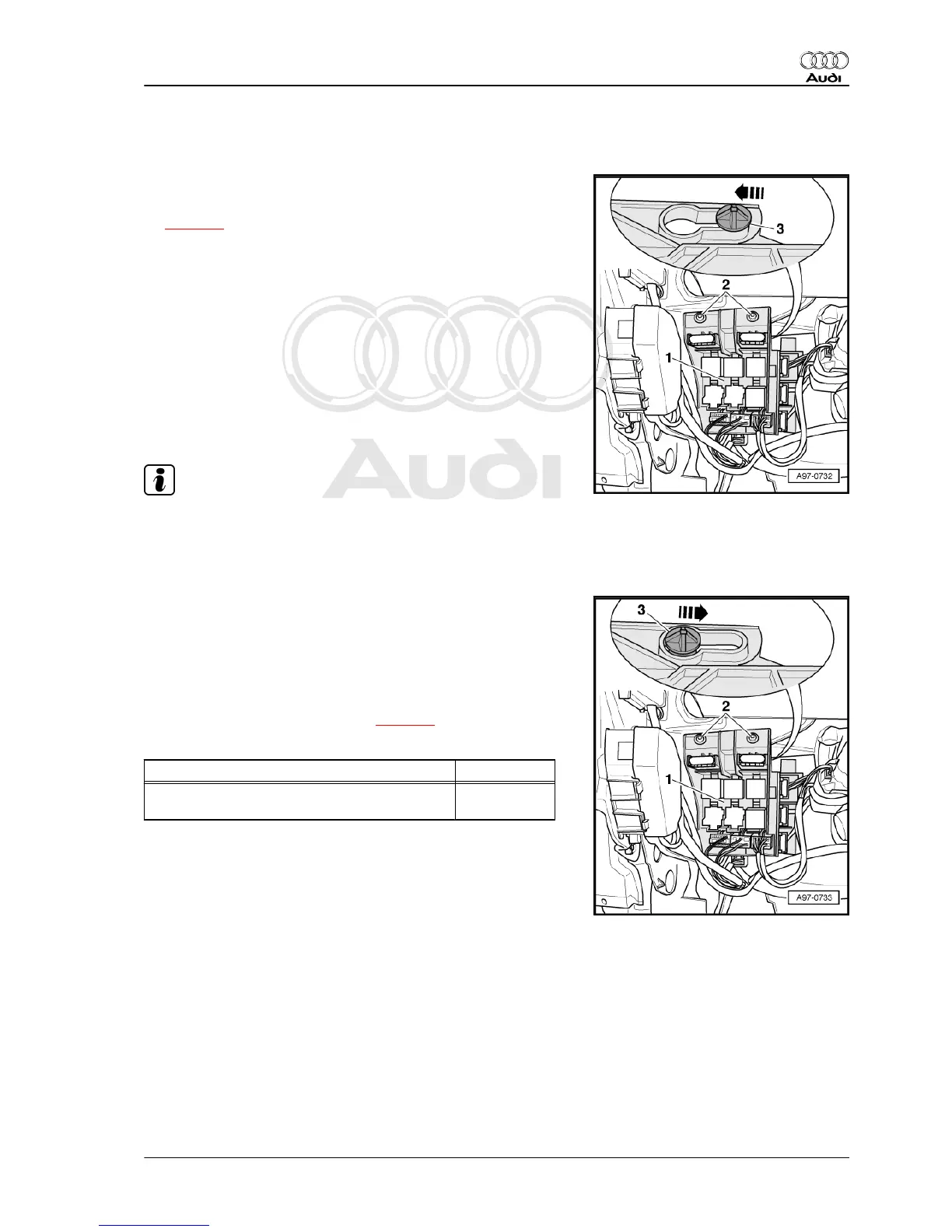

4.5 Removing and installing relay and fuse
carrier behind dash panel (left-side)
Removing
– With ignition switched off, disconnect earth cable at battery
⇒ page 2 .
– Remove driver's storage compartment ⇒ Rep. gr. 68 .
– Remove bolts -2-.
– Disengage retaining pin -3- of relay and fuse carrier at side
guide -arrow-.
– Detach relay and fuse carrier -1-.
Perform additional operations as required.
– Unclip fuse holders.
– Unplug electrical connectors.
– Disconnect relays and unclip corresponding relay carrier.
Note
Exact contact assignment of relay and fuse carrier behind dash
panel (left-side) can be found in the appropriate current flow dia‐
gram ⇒ Current flow diagrams, Electrical fault finding and Fitting
locations.
Installing
Installation is carried out in the reverse order; note the following:
– Engage retaining pin -3- of relay and fuse carrier at side guide
-arrow-.
– Install driver's storage compartment ⇒ Rep. gr. 68 .
– Connect battery. Steps required ⇒ page 3 .
Tightening torque
Component Nm
Relay and fuse carrier to central tube for dash
panel
3
4.6 Removing and installing electronics box
(driver's side)
♦ Fitting location: beneath floor covering under driver's seat
Removing
– Remove driver's seat ⇒ Rep. gr. 72 .
– Switch off ignition and take out ignition key.
– Remove lower A-pillar trim ⇒ Rep. gr. 70 .
– Fold back floor covering.
Audi A8 2003 ➤
Electrical system - Edition 08.2014
4. Relay carriers, fuse carriers (vehicle interior) 341
